Fuel Control, Idle Speed Control & Vehicle Data Sensor
Fuel Control, Idle Speed Control & Vehicle Data Sensor

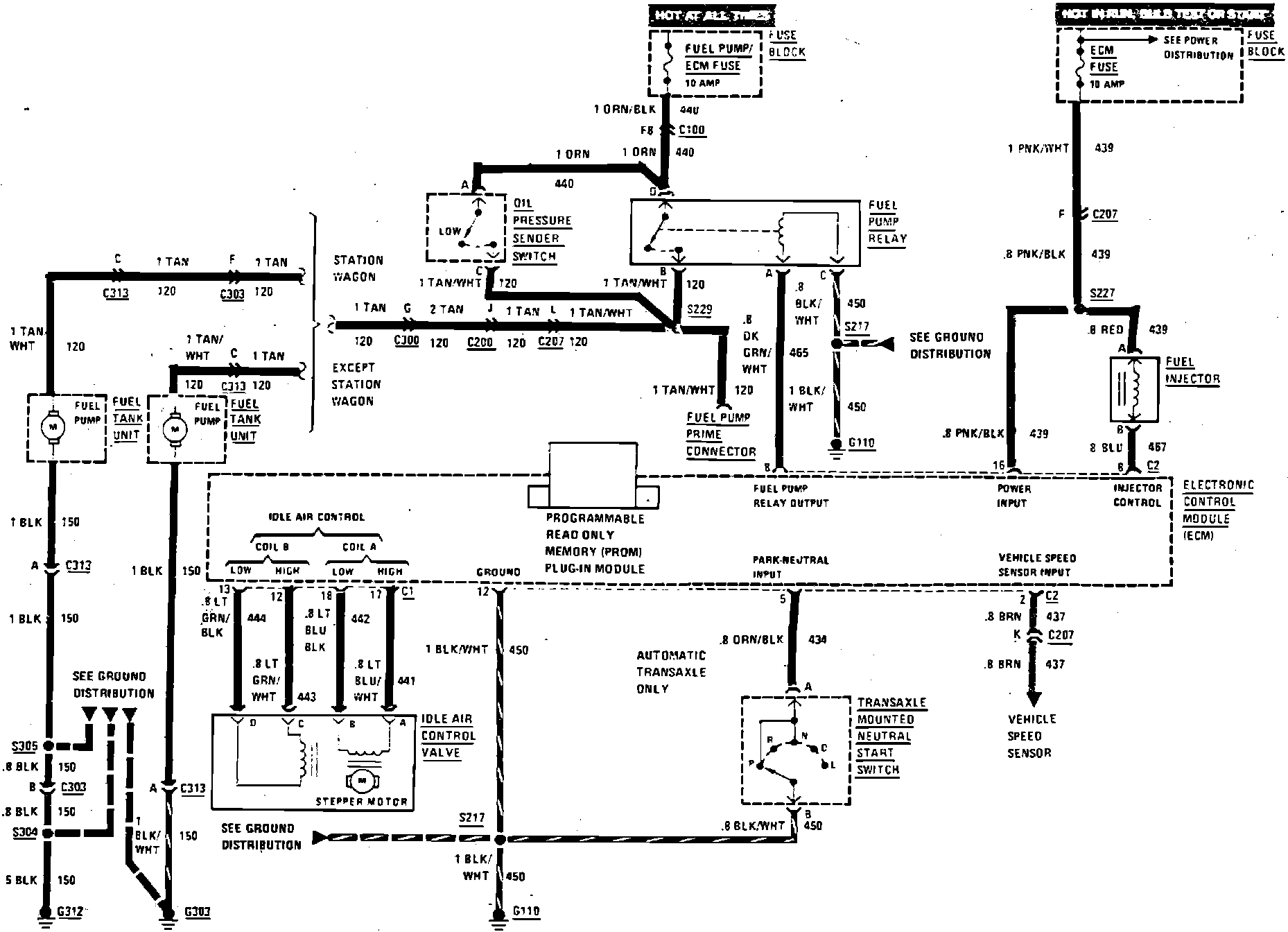

Electronic Fuel Injection (Fuel Control, Idle Speed Control & Vehicle Data Sensor) Wiring Circuit:
