Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1985
>>
Eldorado V8-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
Power Windows
Power Windows

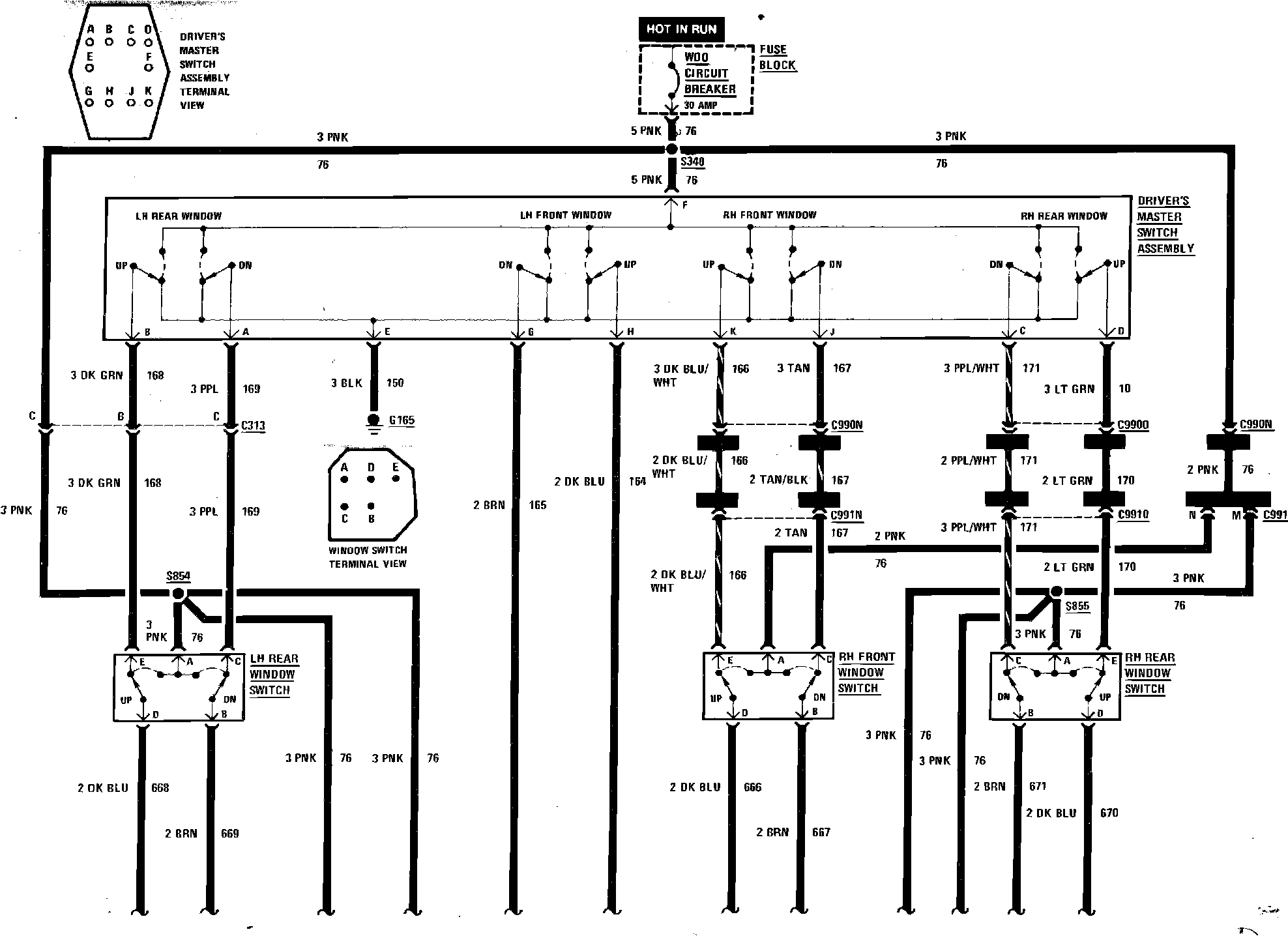

Power Windows Wiring Circuit, W/Convertible Top:

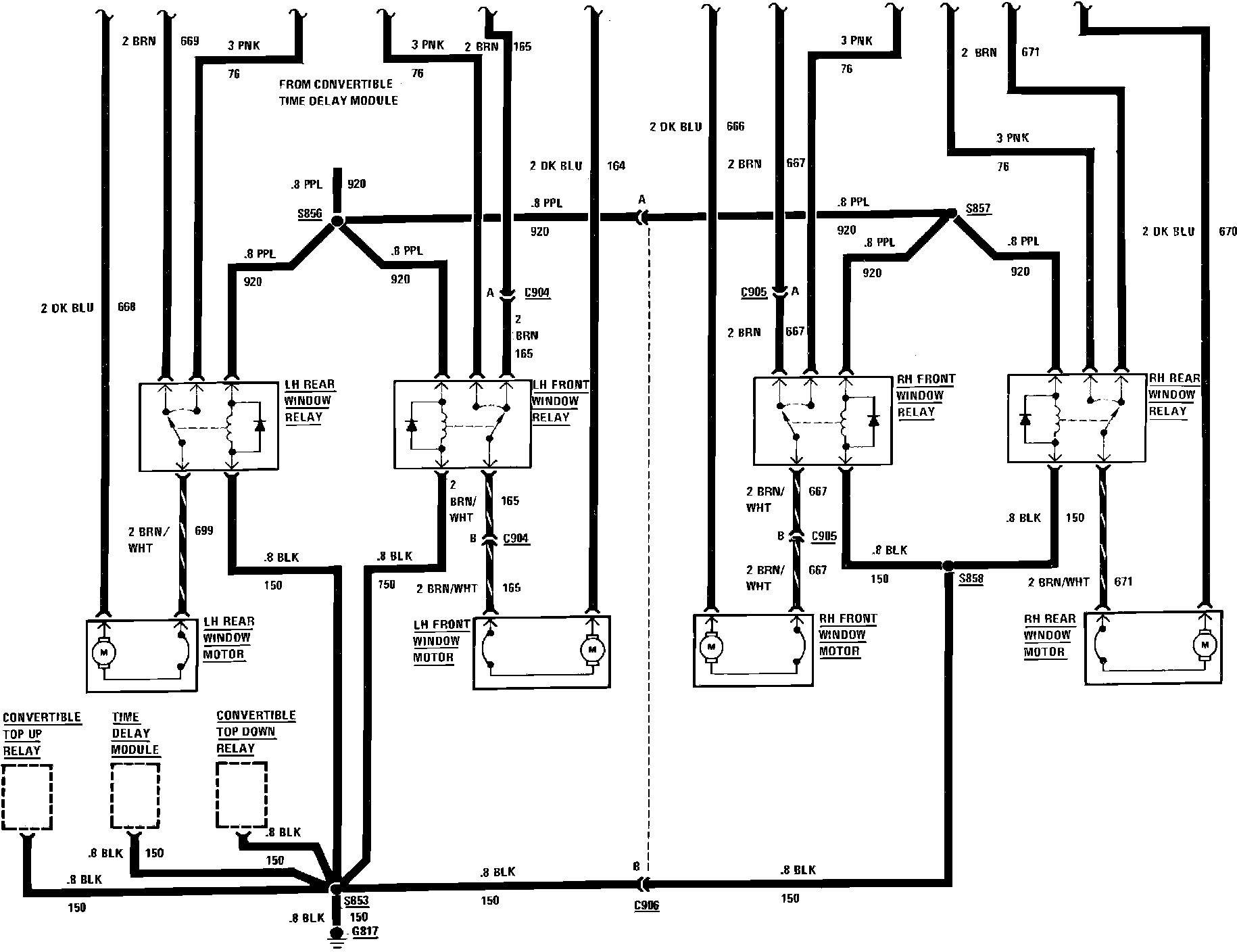

Power Windows Wiring Circuit, W/Convertible Top:
