Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1989
>>
Allante V8-273 4.5L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Convertible Top
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

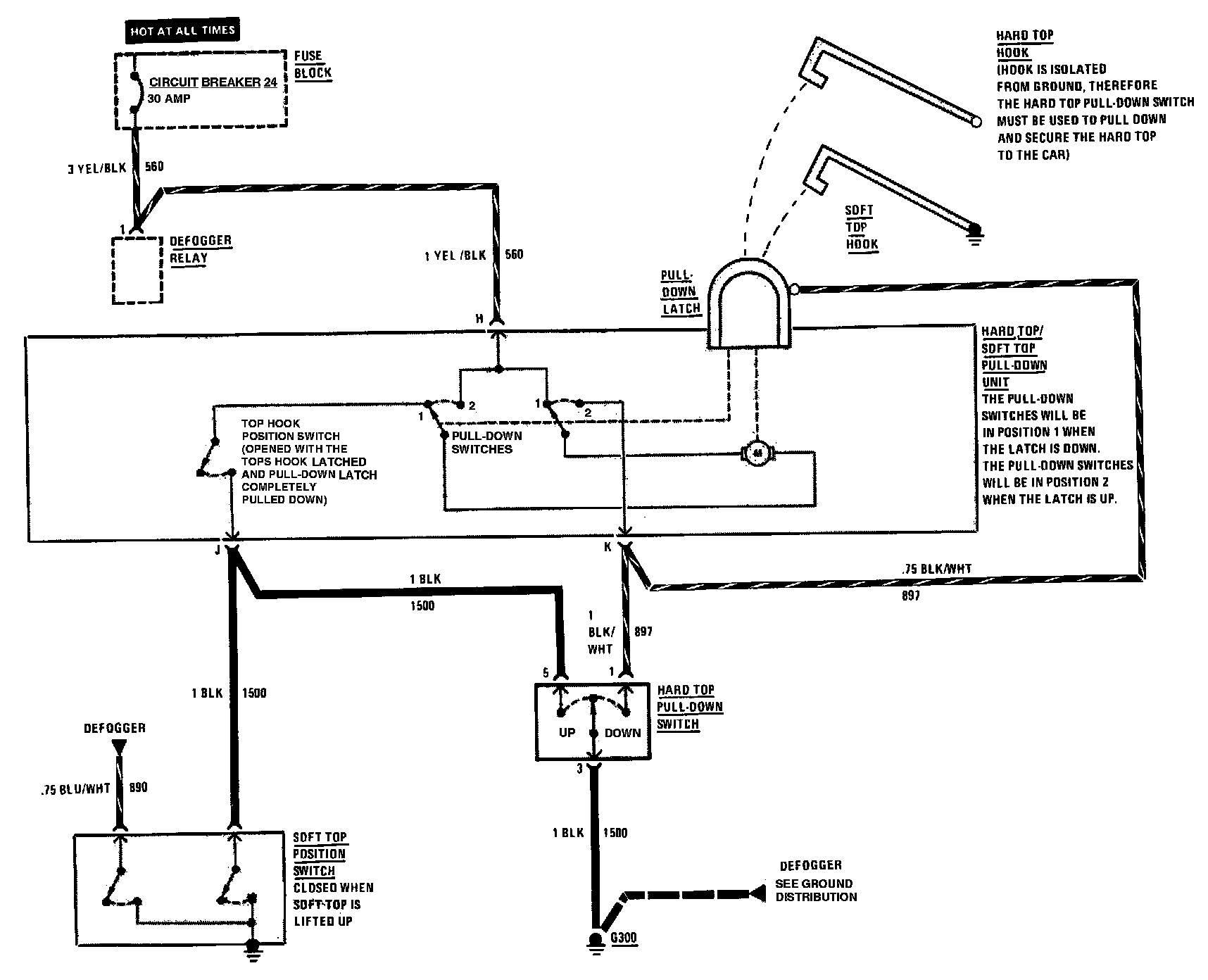

Hard Top/Soft Top Pull-Down:
