Home >> Cadillac >> 1989 >> Allante V8-273 4.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Retained Accessory Power (RAP)

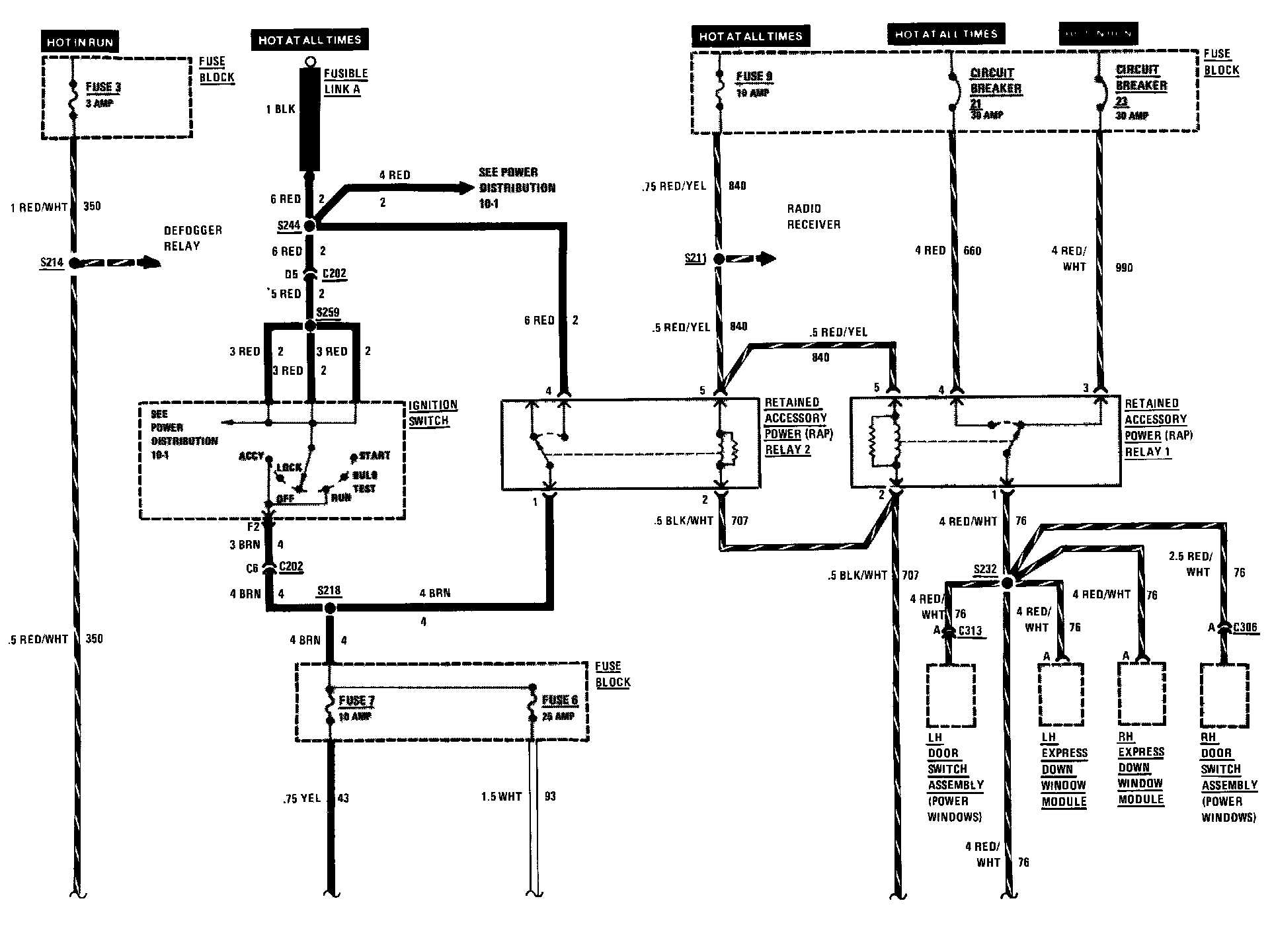

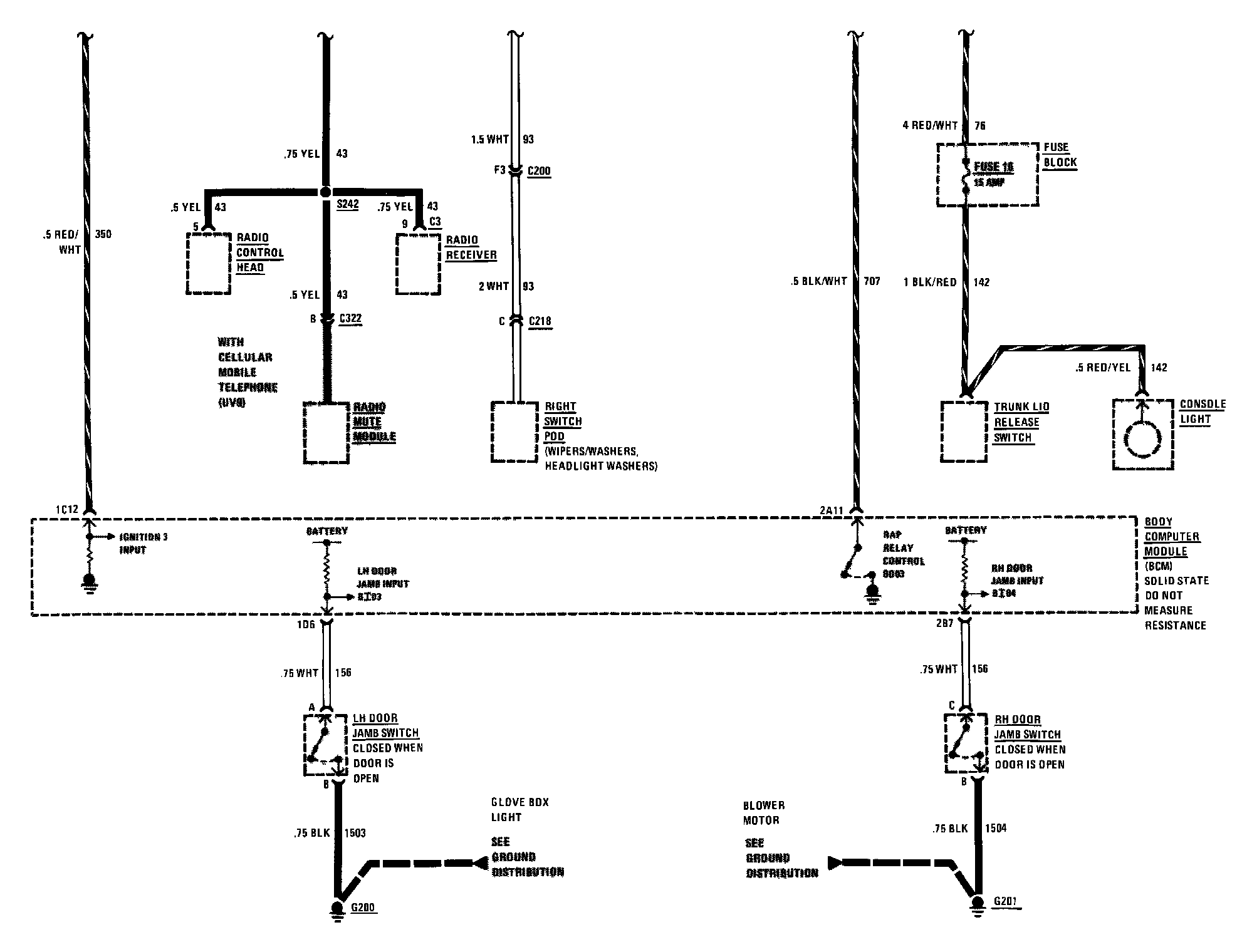

Retained Accessory Power (RAP)
