Chart A-13 Codes 45, 46, 47, or 48 (Miss. Wheel Speed Sen Sgn)
Chart A-13 Codes 45, 46, 47, or 48 (Miss. Wheel Speed Sen Sgn)

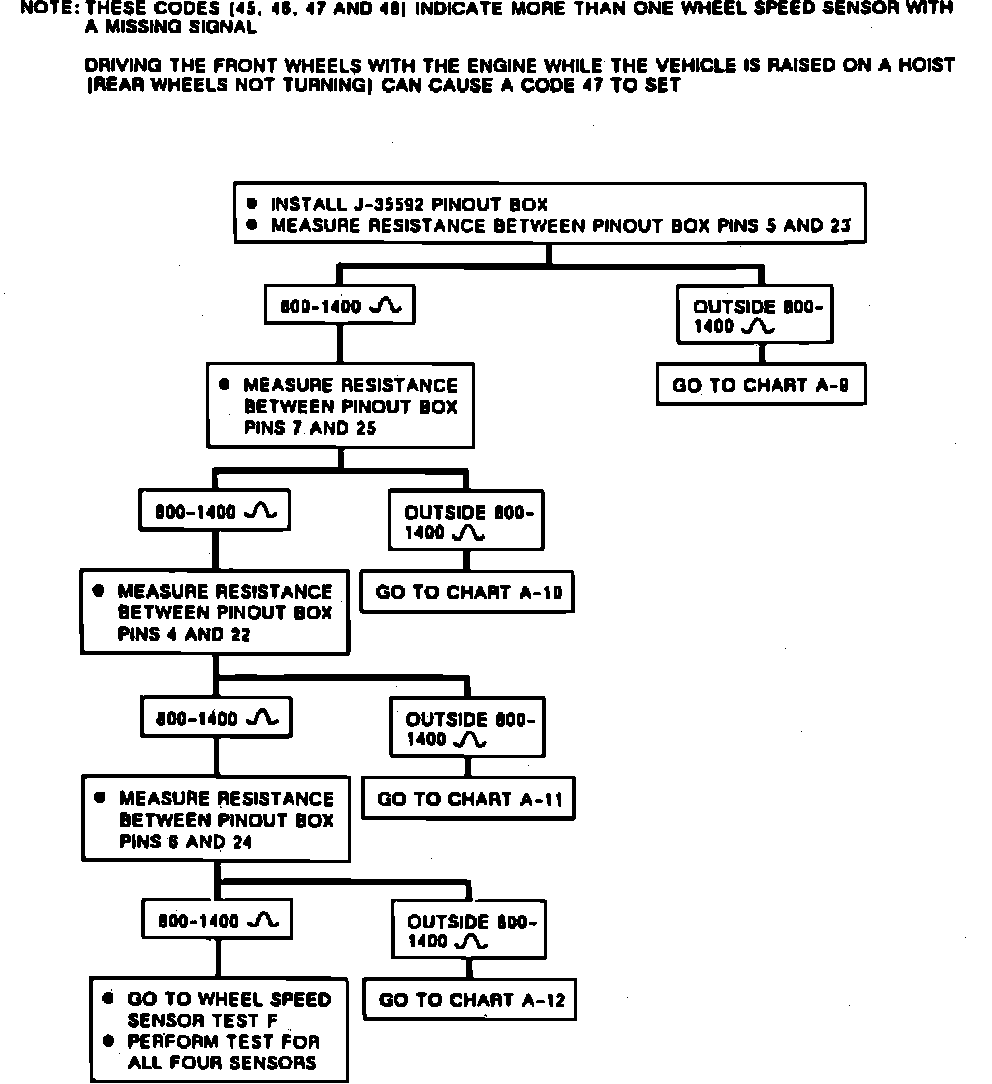

Fig. 66 Chart A-13, Codes 45, 46, 47 Or 48 (Missing Wheel Speed Sensor Signals). 1989-90 Models Except 6000:
