Chart A-5 Code 24 (RF Inlet Valve)
Chart A-5 Code 24 (RF Inlet Valve)

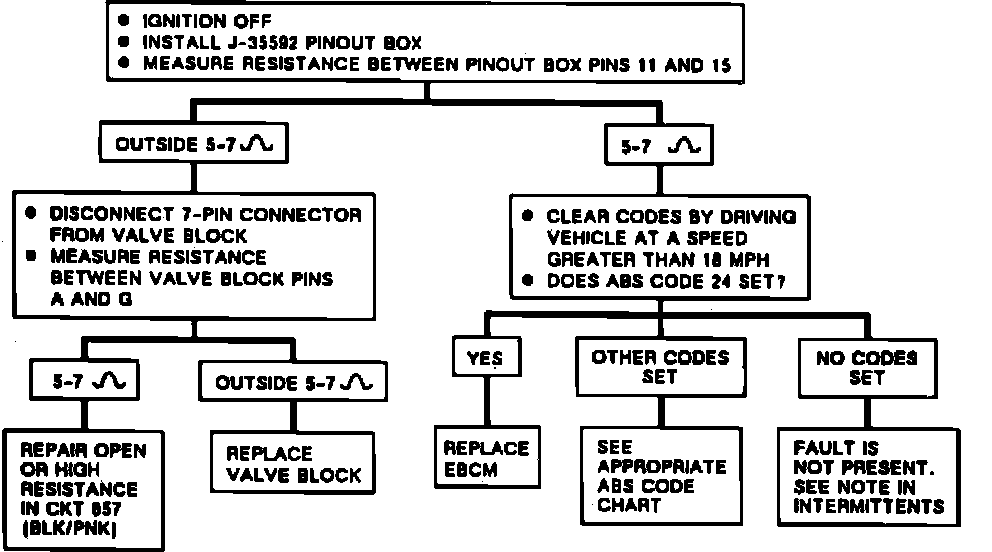

Fig. 58 Chart A-5, Code 24 (Right Front Inlet Valve). 1989-90 Models Except 6000:
