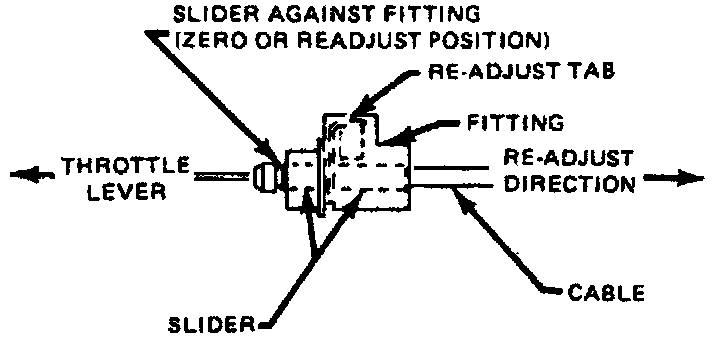

Throttle Cable Adjust

1. Ensure ignition is in the Off position.




2. Depress and hold metal adjustment tab at engine end of T.V. cable.

3. Move slider until it contacts fitting, then release tab.

4. Check cable for sticking or binding and road test vehicle. Recheck cable after engine has reached normal operating temperature, as cable may appear to operate properly with engine cold.
