Chart D Insufficient or No Cooling

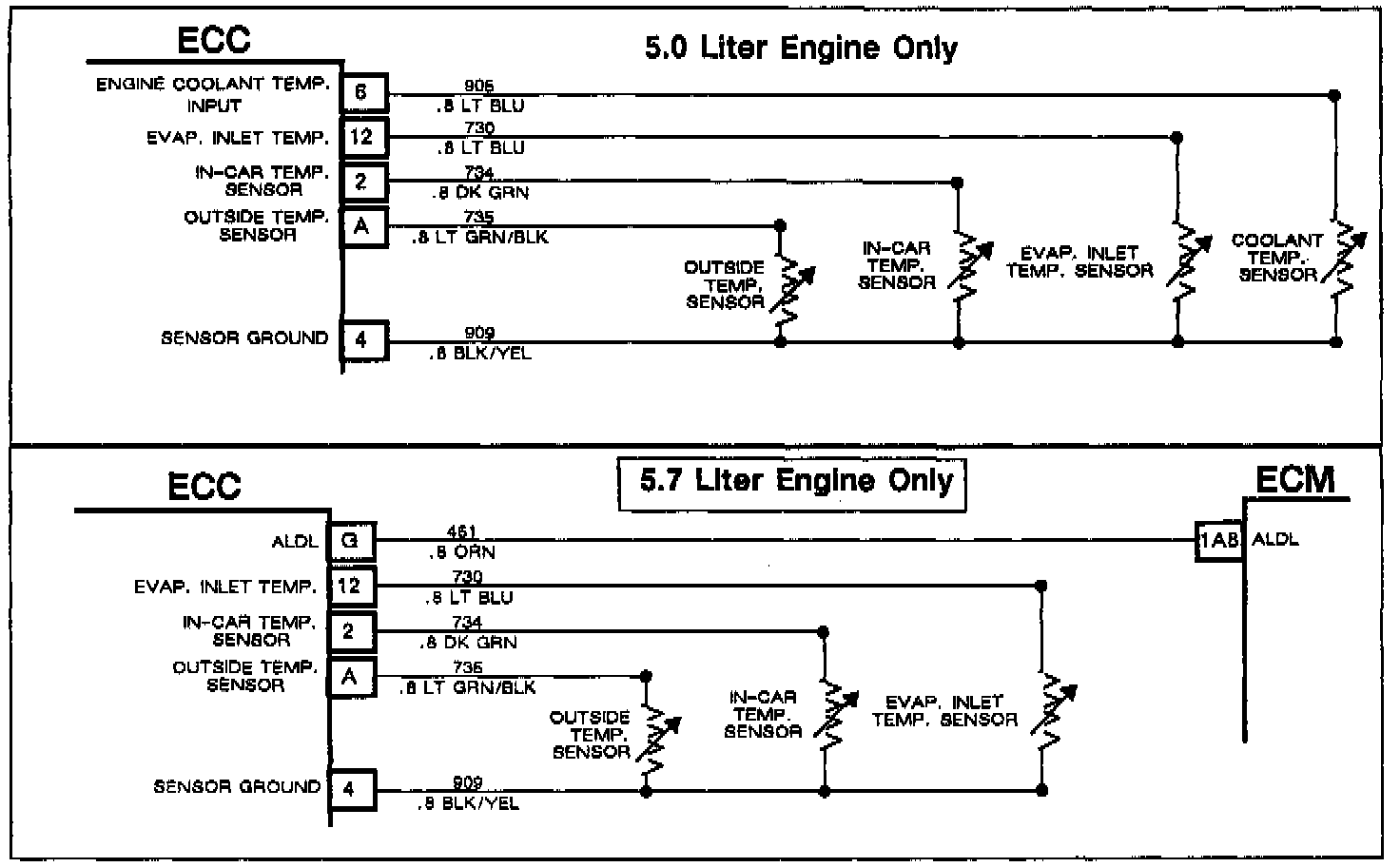

CIRCUIT DESCRIPTION

Based on the various temperature sensor inputs, input from the ECM (5.7 Liter Only), and the selected in-car comfort level, the ECC Head determines the required temperature and delivery mode to achieve and maintain the selected comfort level.
