Home
>>
Cadillac
>>
1990
>>
Fleetwood Brougham V8-350 5.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Knock Sensor
>>
Locations
>>
Electronic Spark Control Module
>>

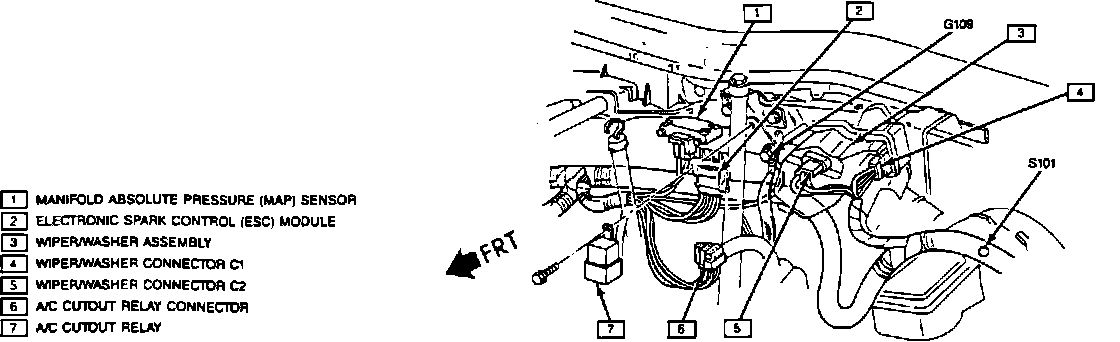

Harness View
Harness View
Center Of Firewall.:
On Center Of Firewall
Applicable to: Brougham
