System Specifications

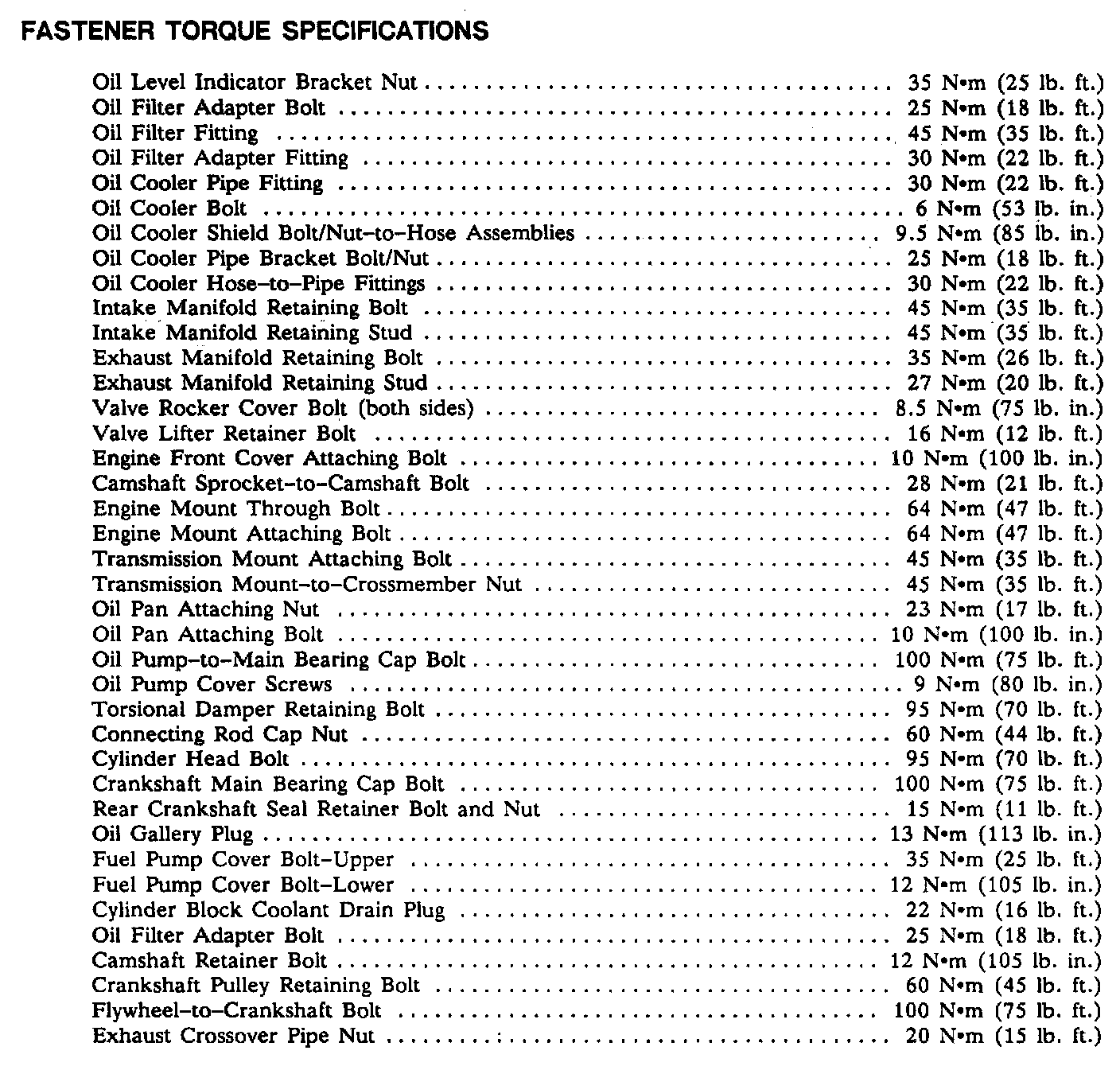

Torque Specifications:

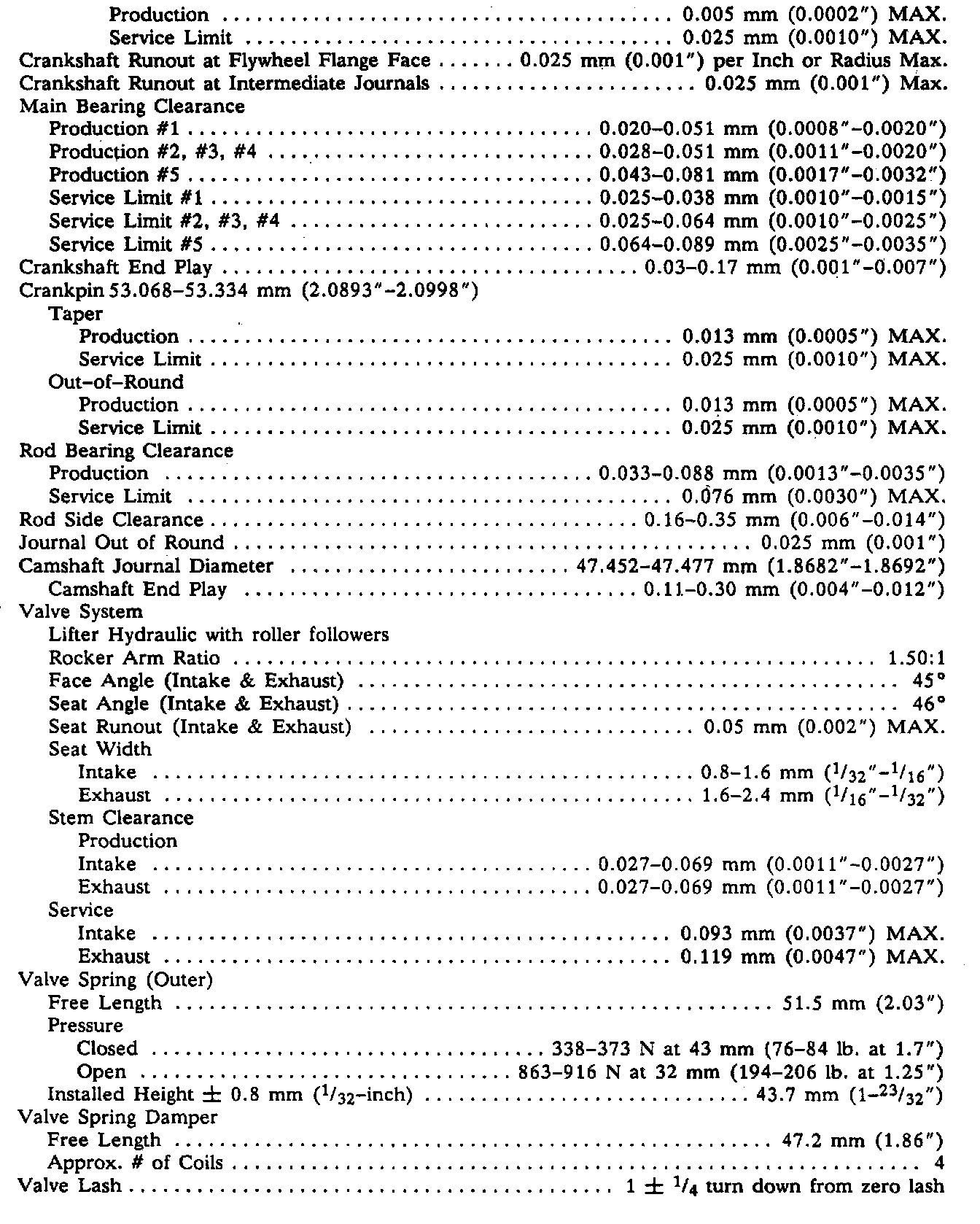

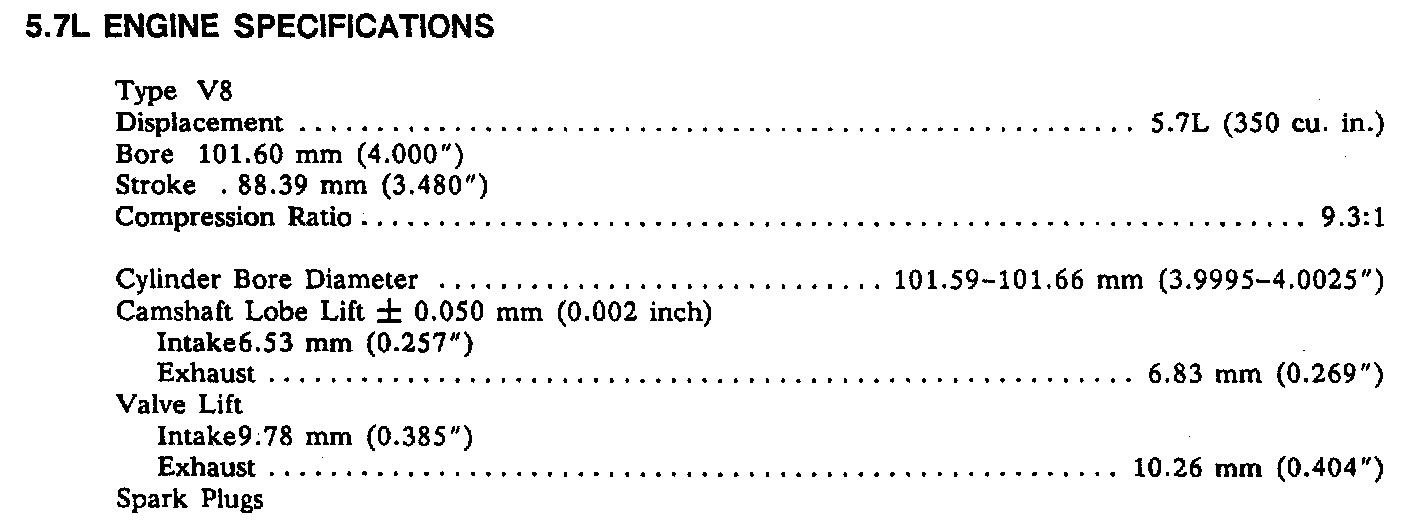

Engine Specifications:




Engine Specifications:




Engine Specifications:

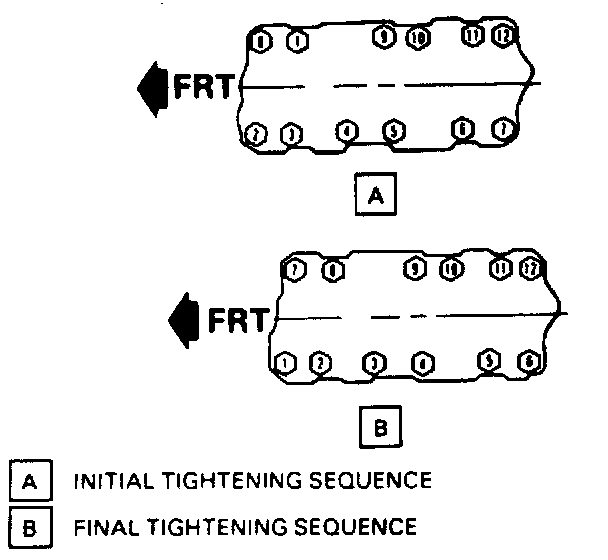

Intake Manifold Torque Sequence:
