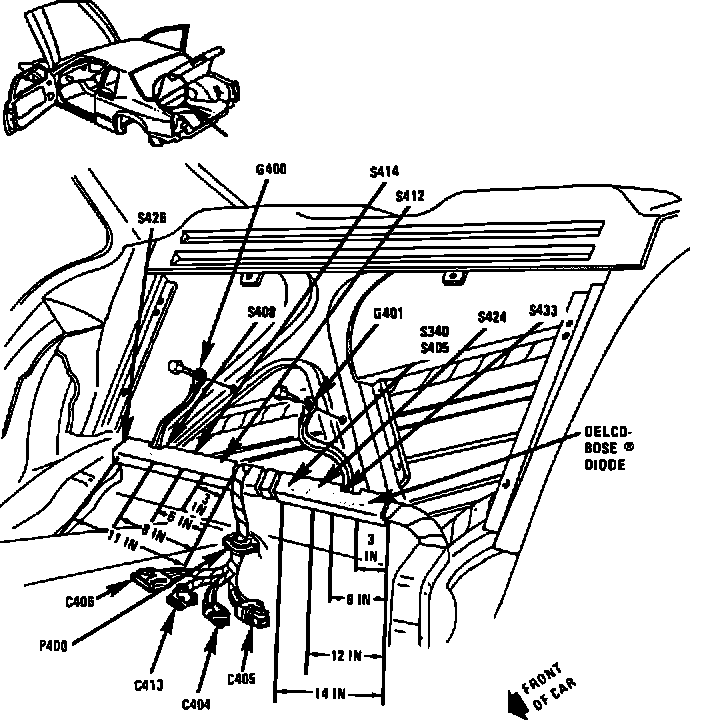

Delco Bose Music System Diode
Delco Bose Music System Diode
Rear Seat.:
Under LH Rear Seat, RH Of LH Edge Of Seat Back Channel
Applicable to: 1992 Eldorado/Seville
