Astro Roof Relay

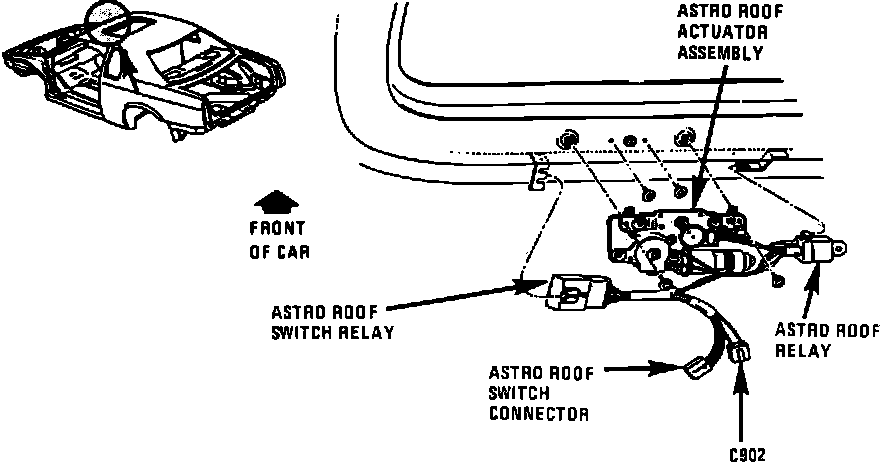

Astro Roof Relay
Center Of Windshield Header.:
In Windshield Header, LH Side Of Actuator Assembly
Applicable to: 1992 Eldorado/Seville
