Engine Metal Temperature Sensor

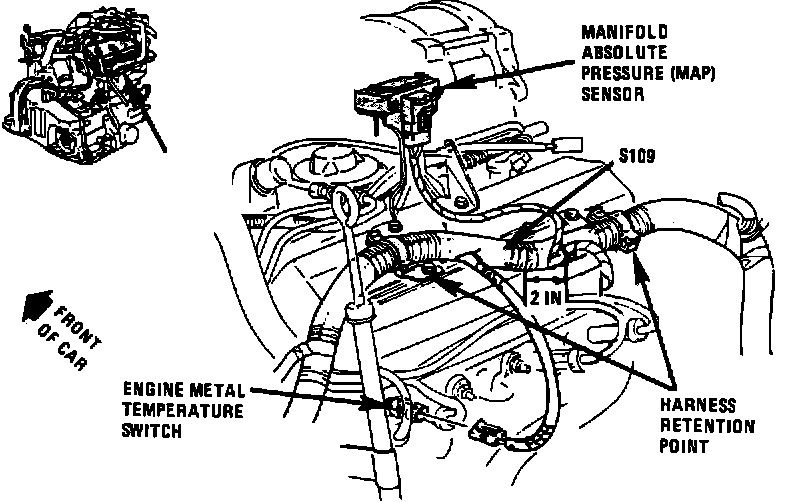

Engine Metal Temperature Sensor
Upper Rear Of Engine.:
LH Rear Of Engine, Near Spark Plug
Applicable to: 1992 Eldorado/Seville
