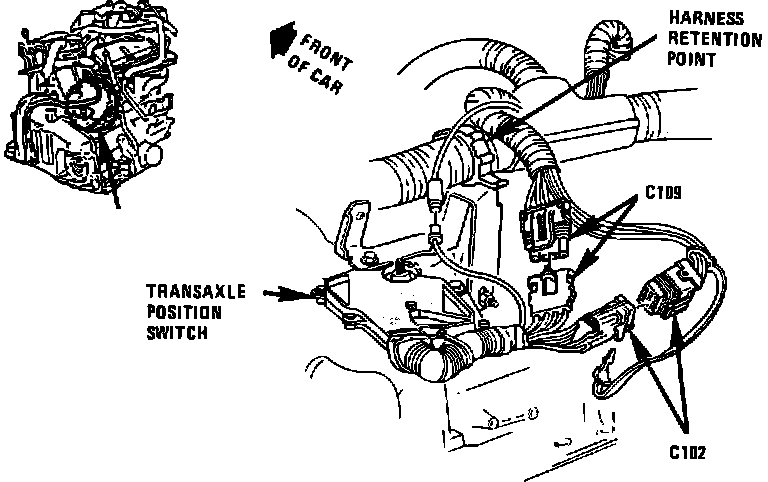

Transaxle Position Switch

LH Rear Of Engine.:




LH Rear Of Engine, Top Of Transaxle

Applicable to: 1992 Eldorado/Seville
