Electronic Brake Control Module

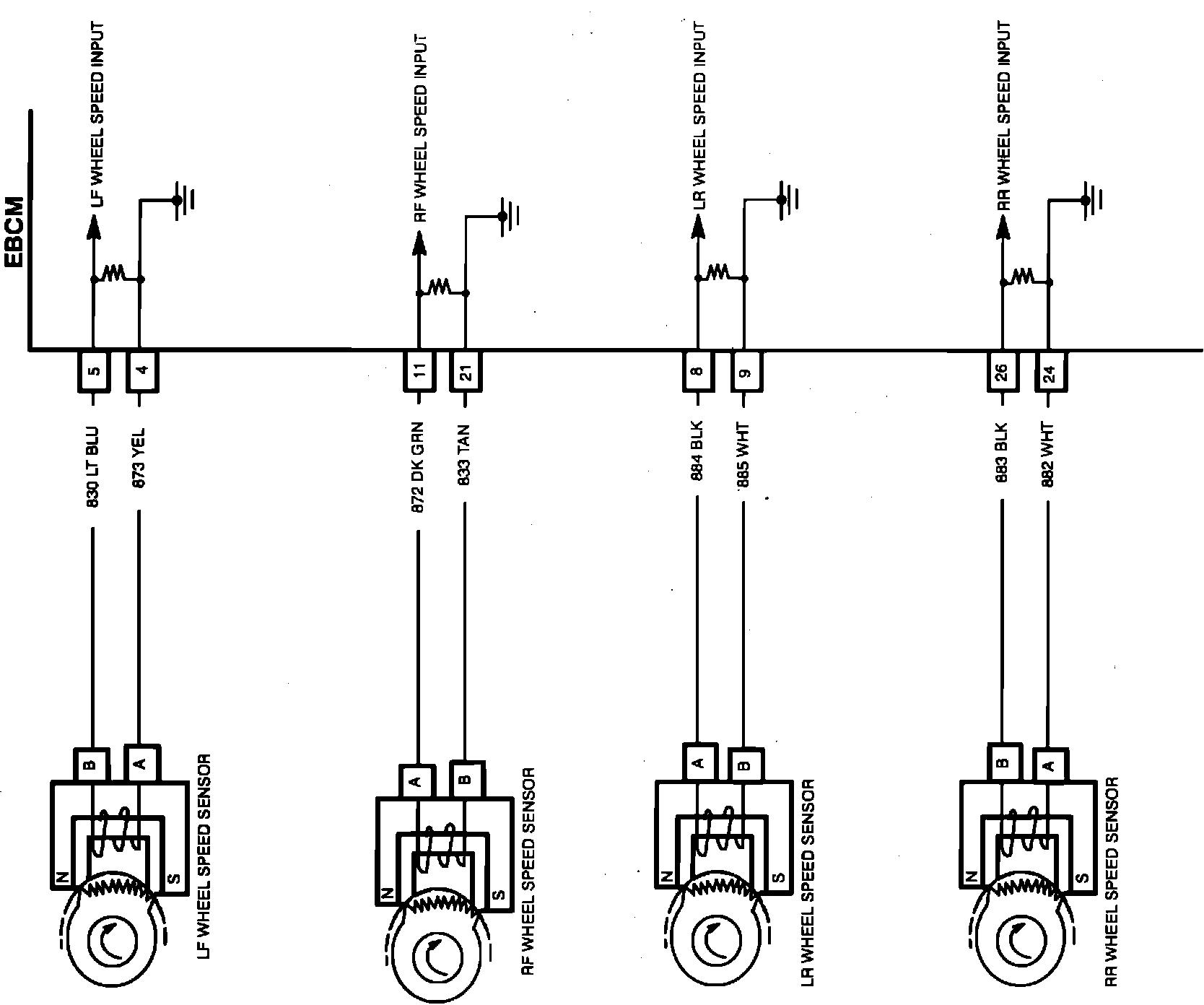

Fig. 69 ABS Wiring Circuit (Part 1 Of 2). 1992 Eldorado & Seville:

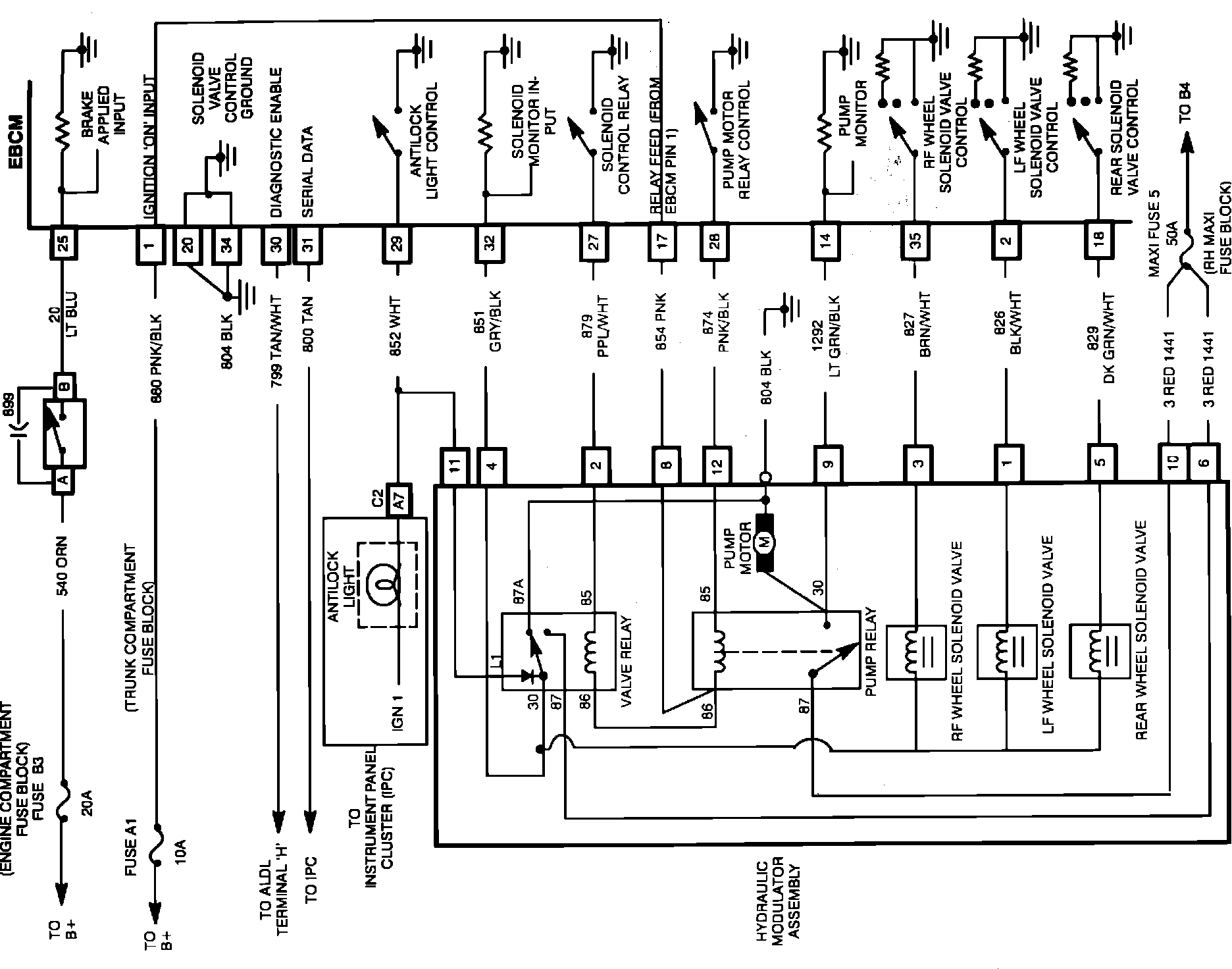

Fig. 69 ABS Wiring Circuit (Part 2 Of 2). 1992 Eldorado & Seville:
