Home
>>
Cadillac
>>
1992
>>
Seville V8-300 4.9L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>

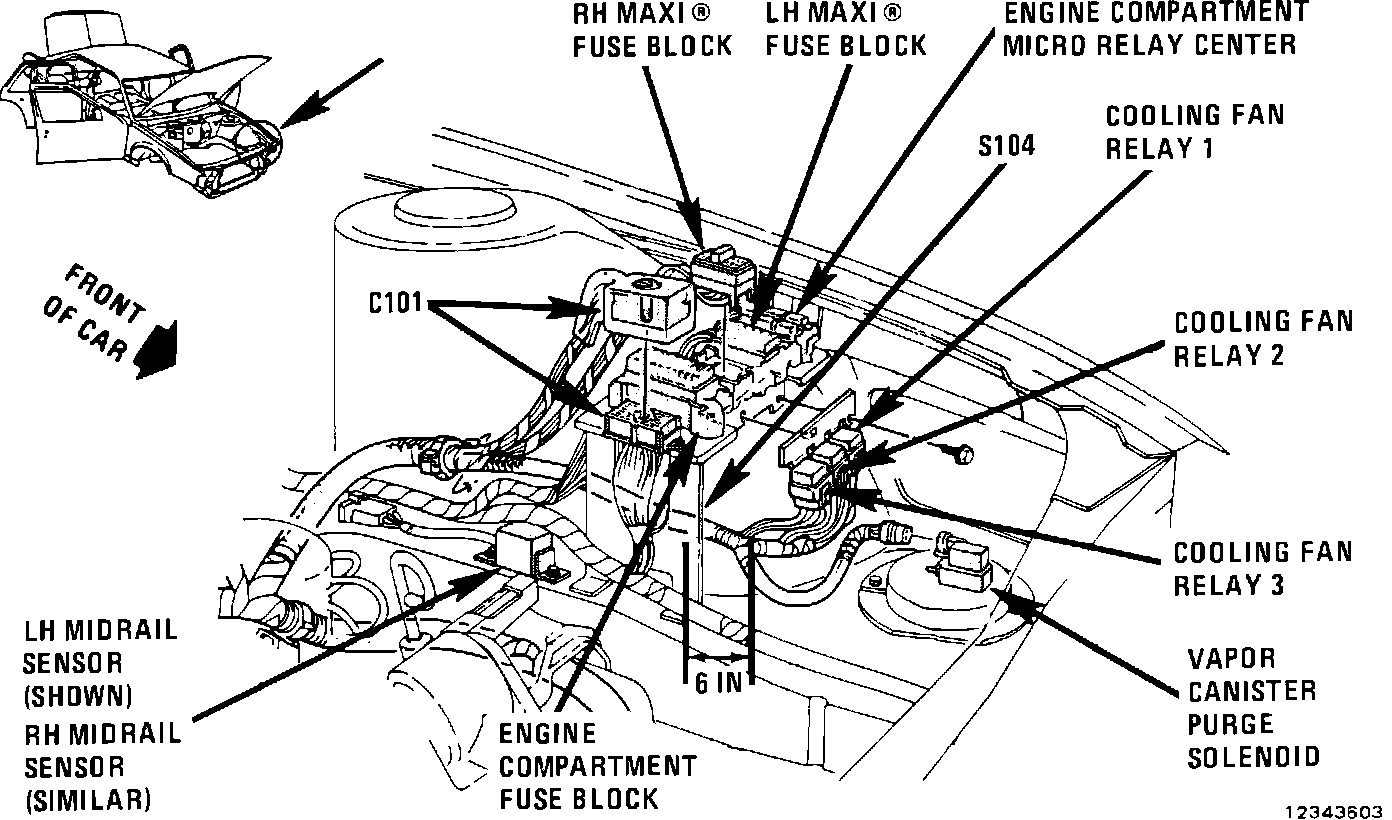

RH Maxifuse Block
RH Maxifuse Block
LH Side Of Engine Compartment:
