Home
>>
Cadillac
>>
1992
>>
Seville V8-300 4.9L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Connector Views
>>

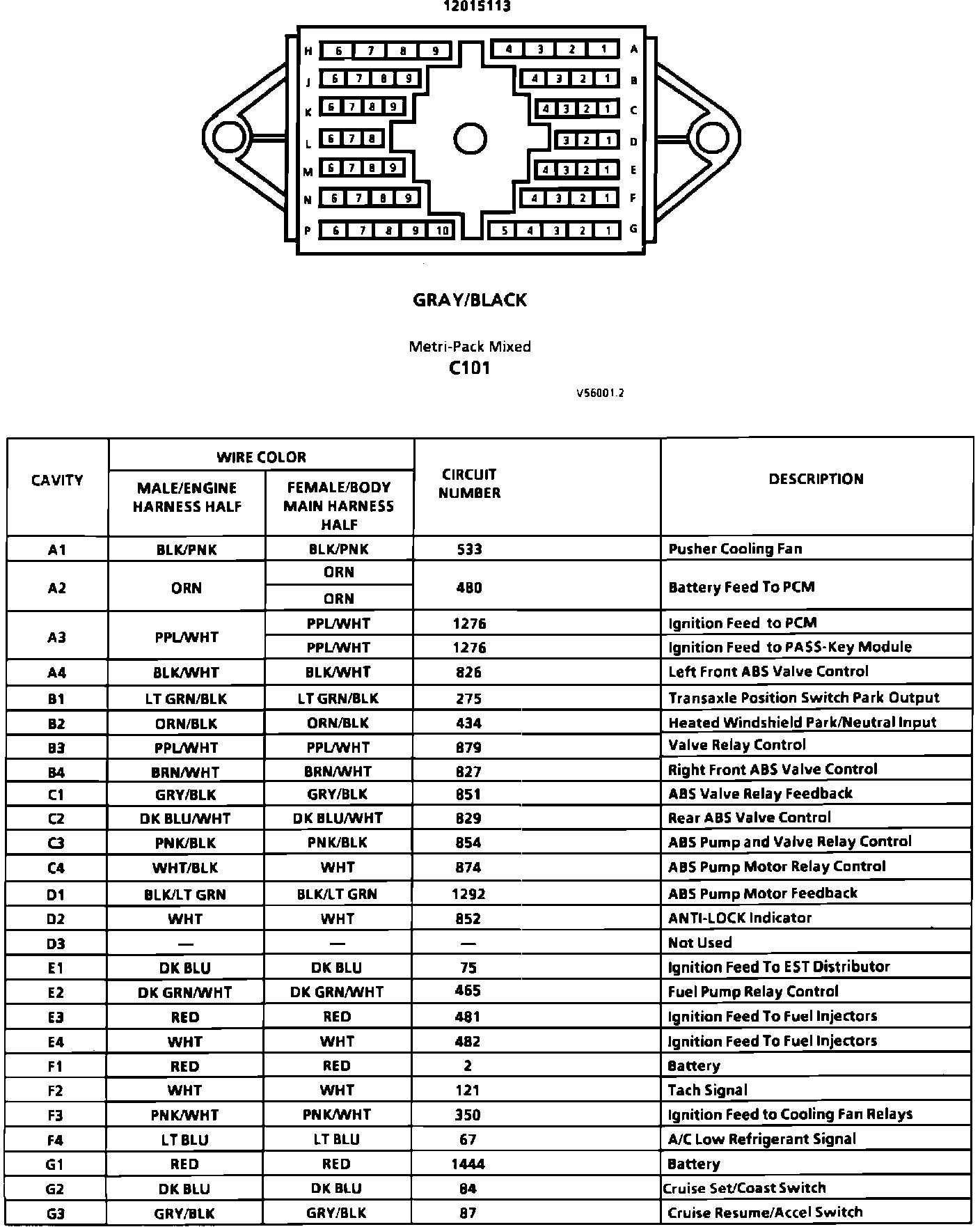

Harness Connector
Harness Connector
Connector View.:
