Information Bus (Data Line)

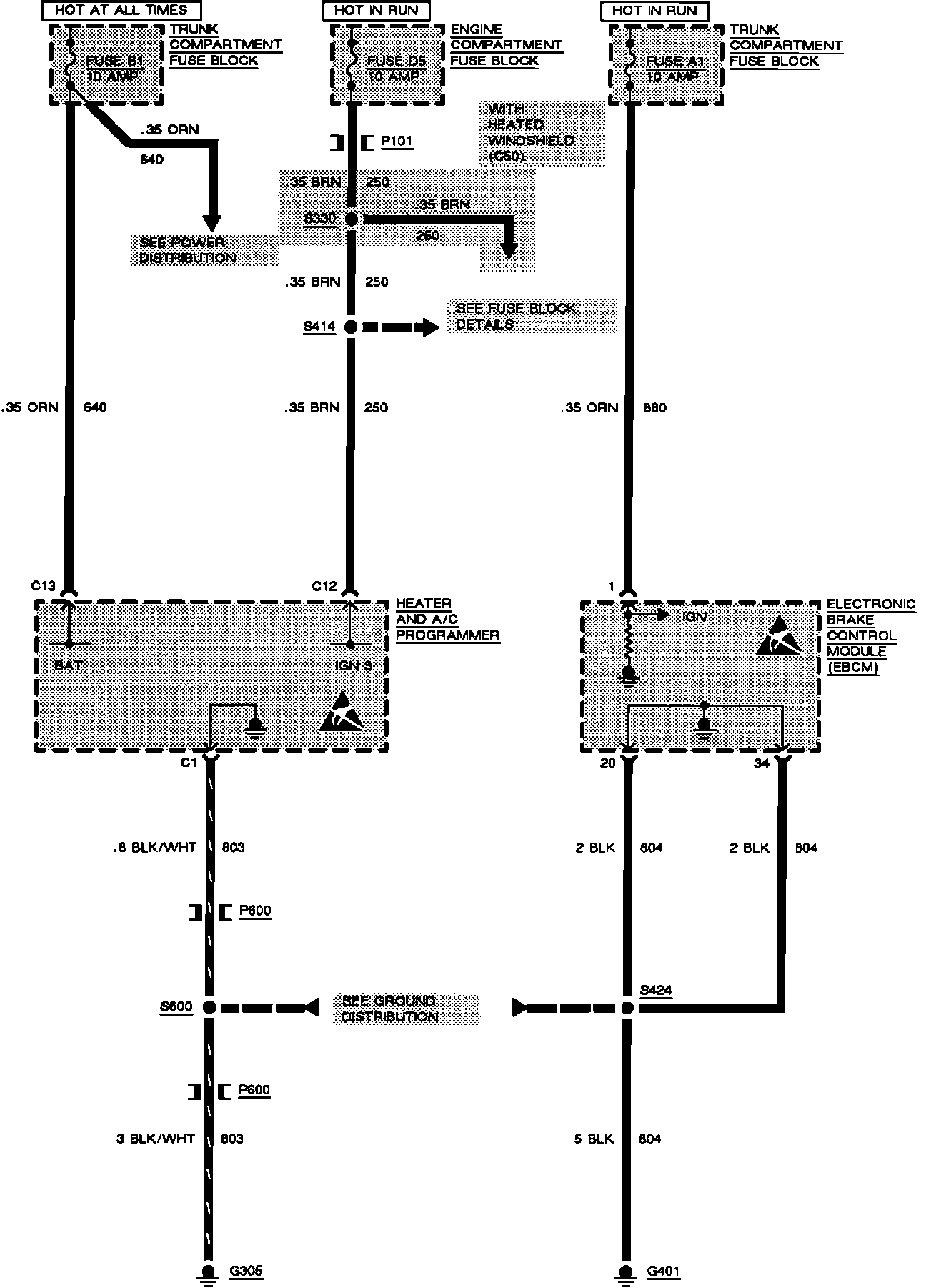

Wiring Diagram.:

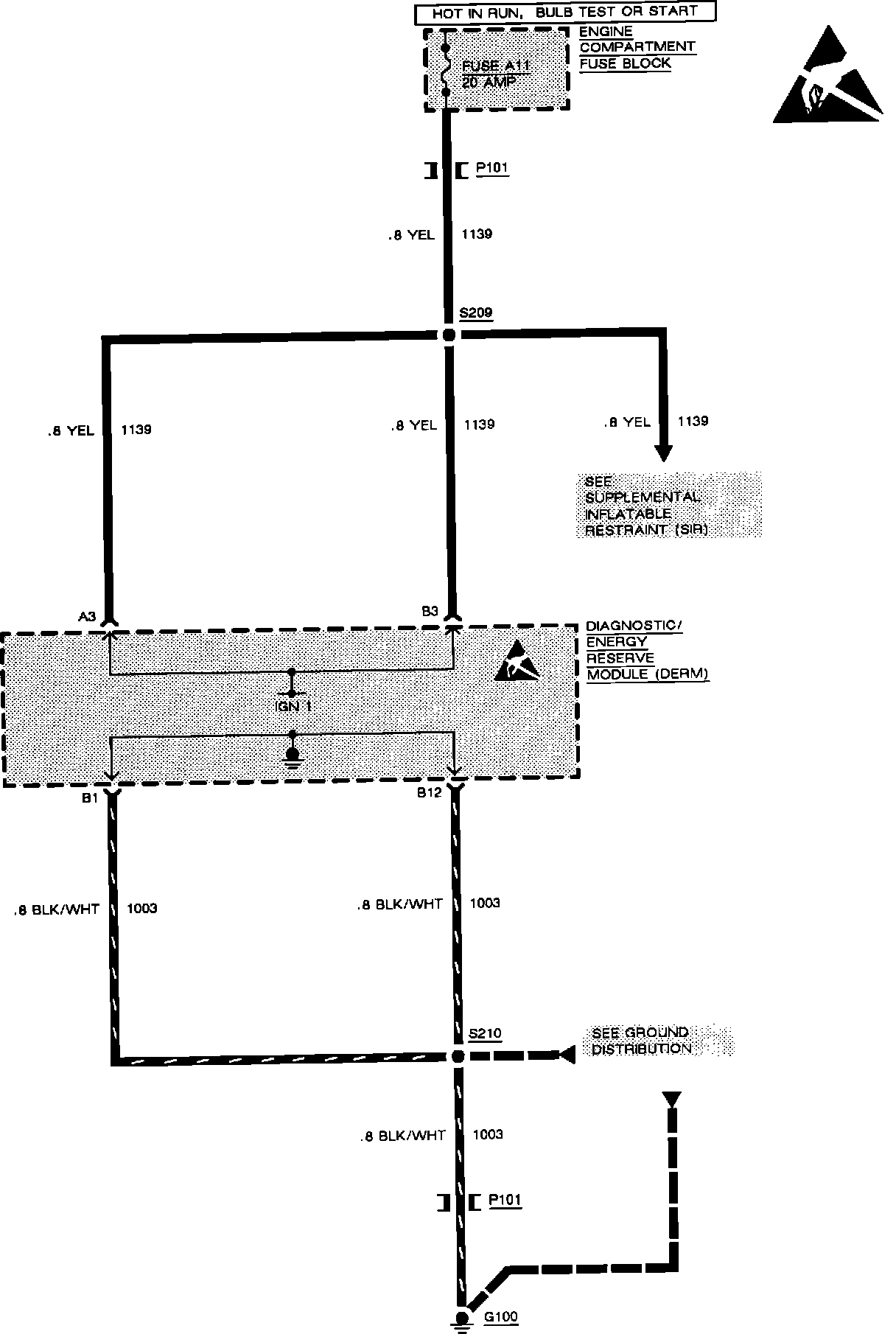

Wiring Diagram.:

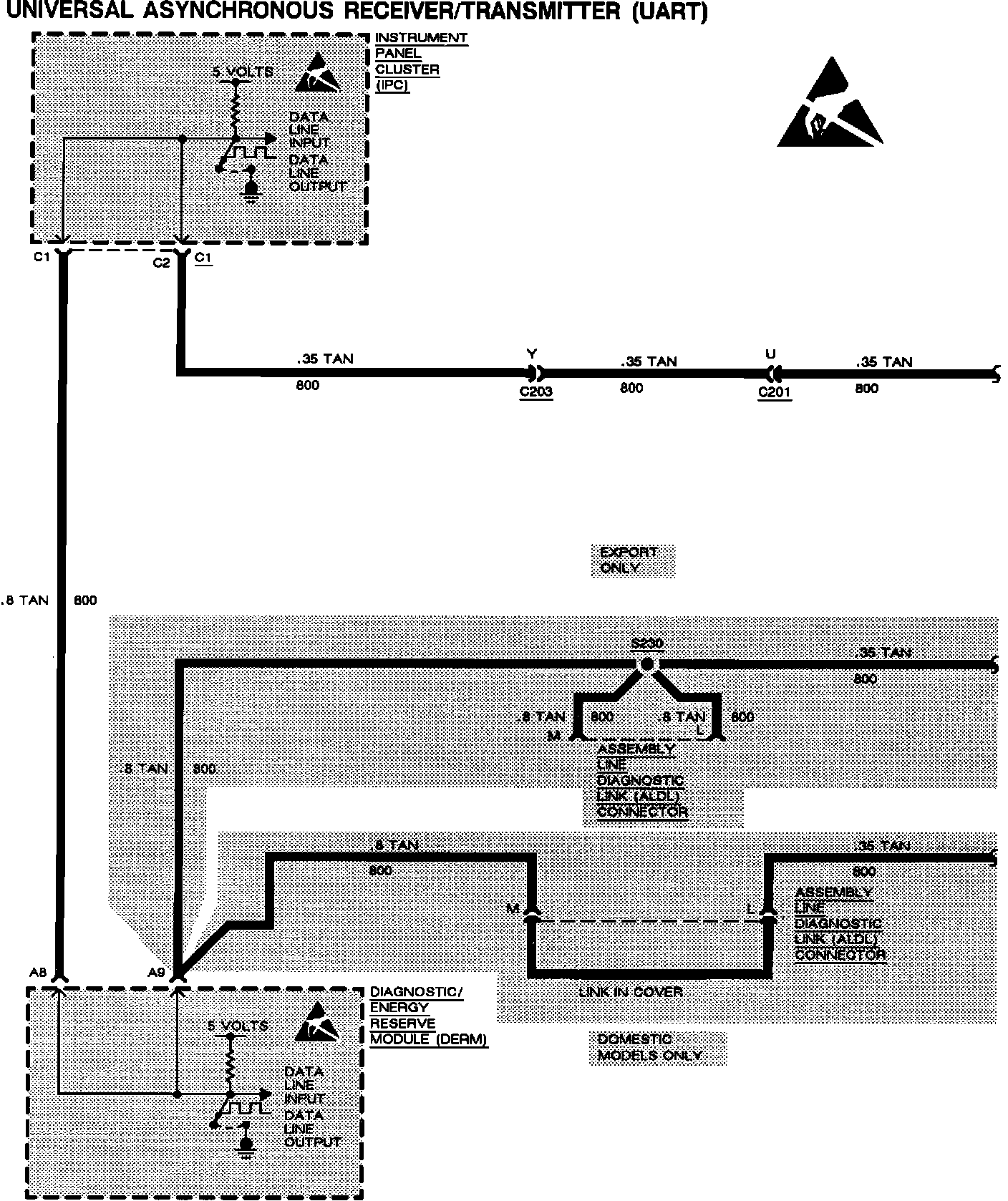

Wiring Diagram.:

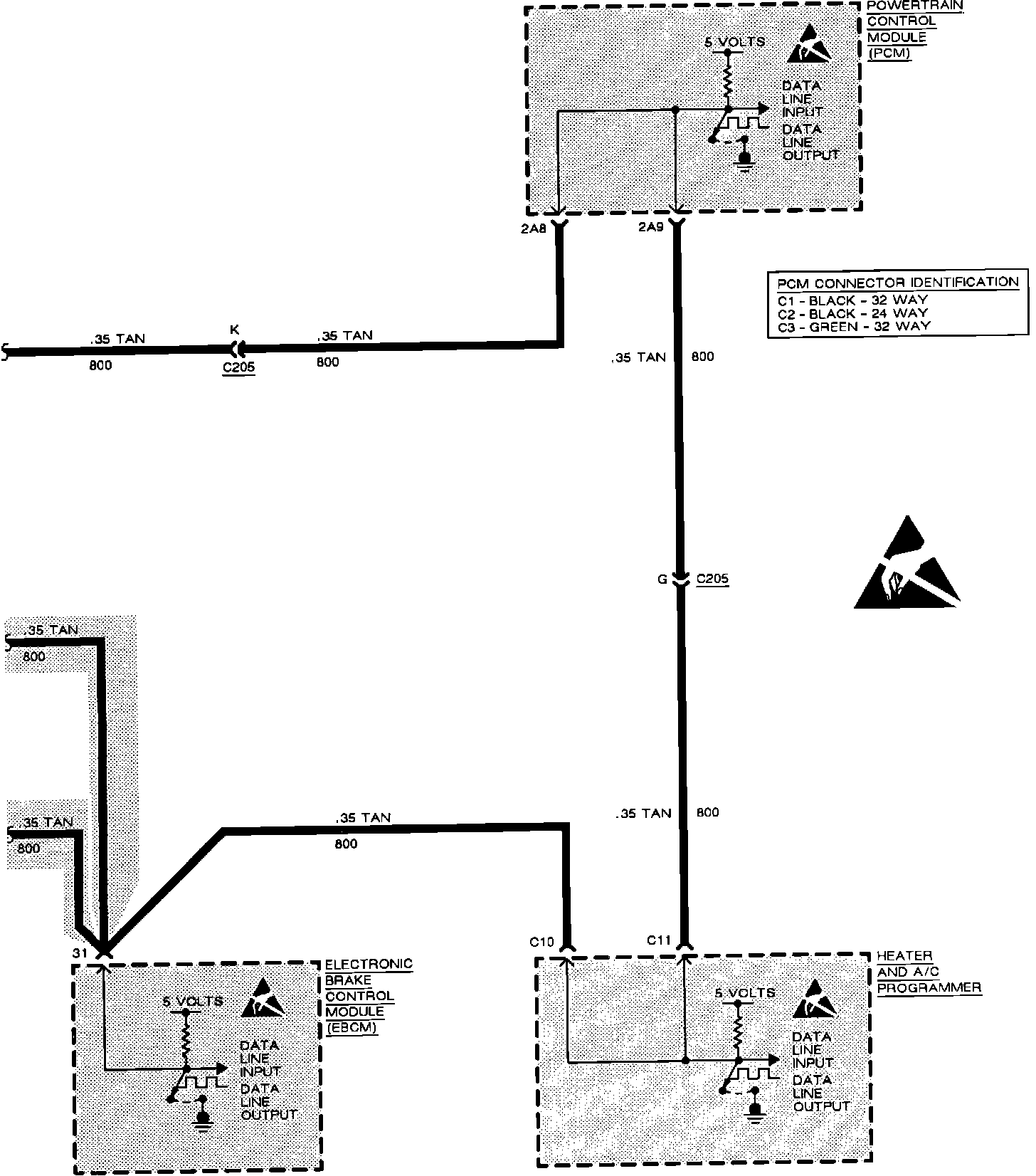

Wiring Diagram.:

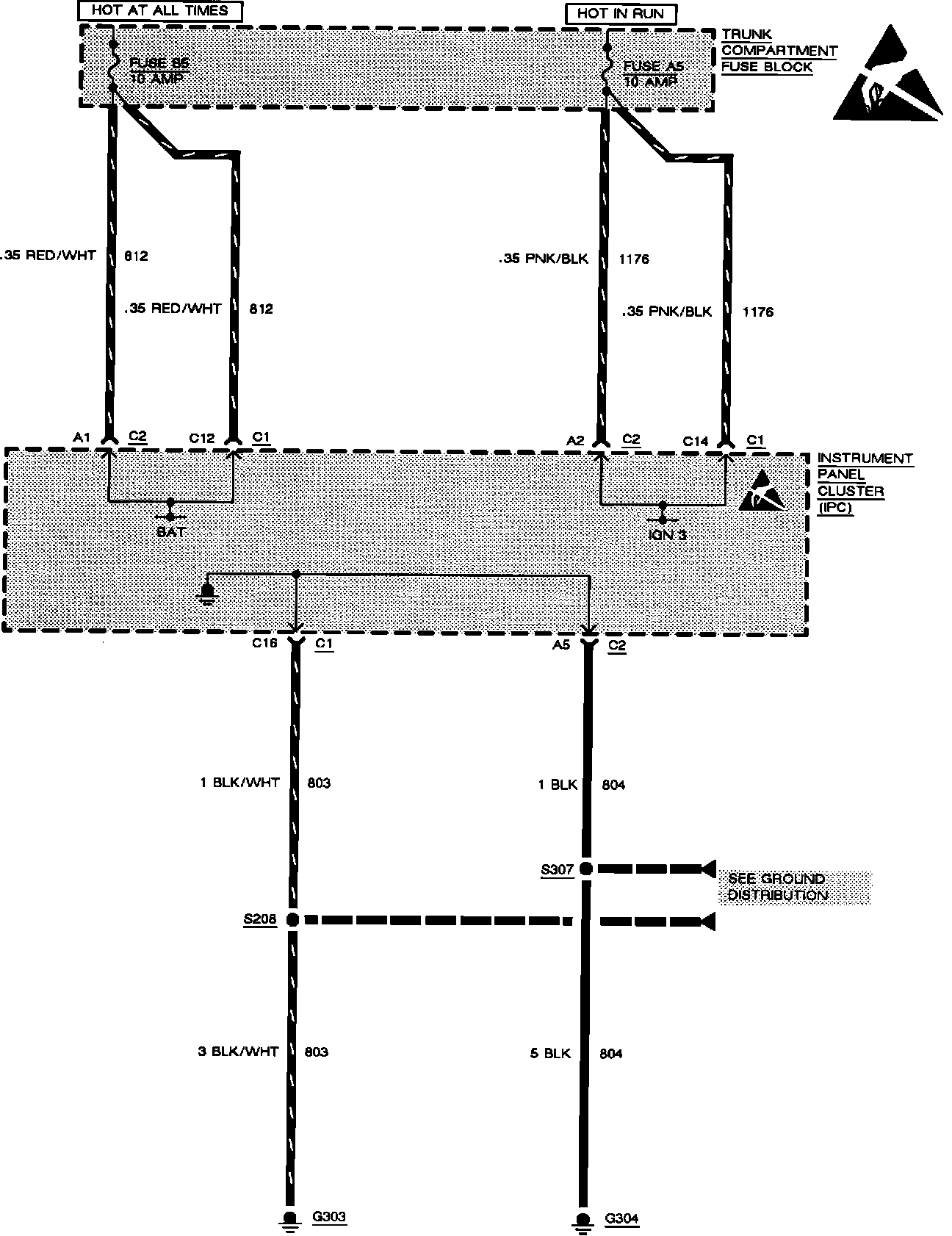

Wiring Diagram.:



Wiring Diagram.:
