System Specifications

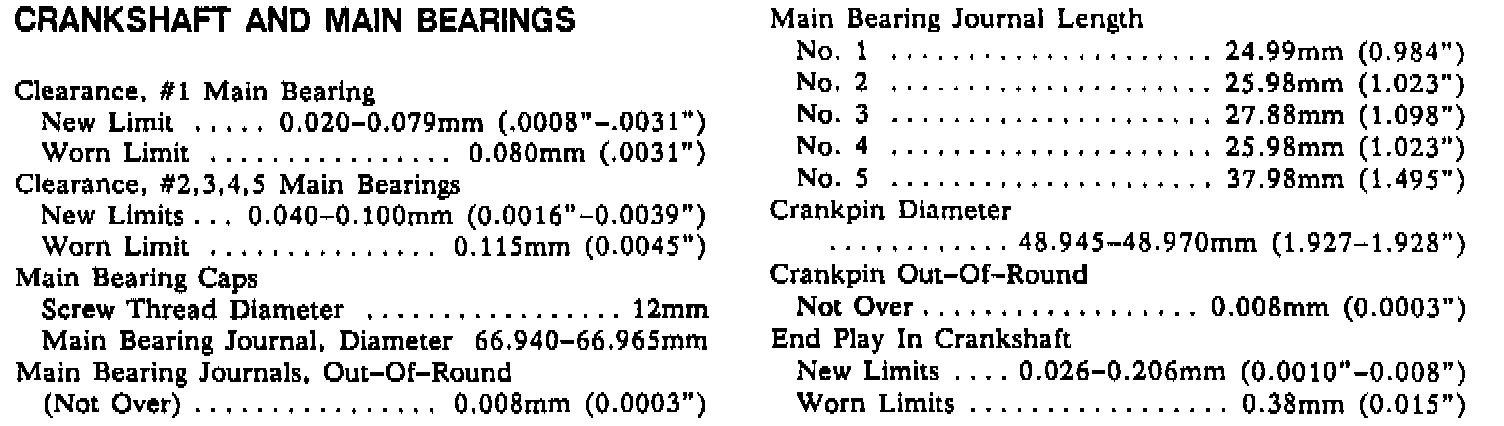

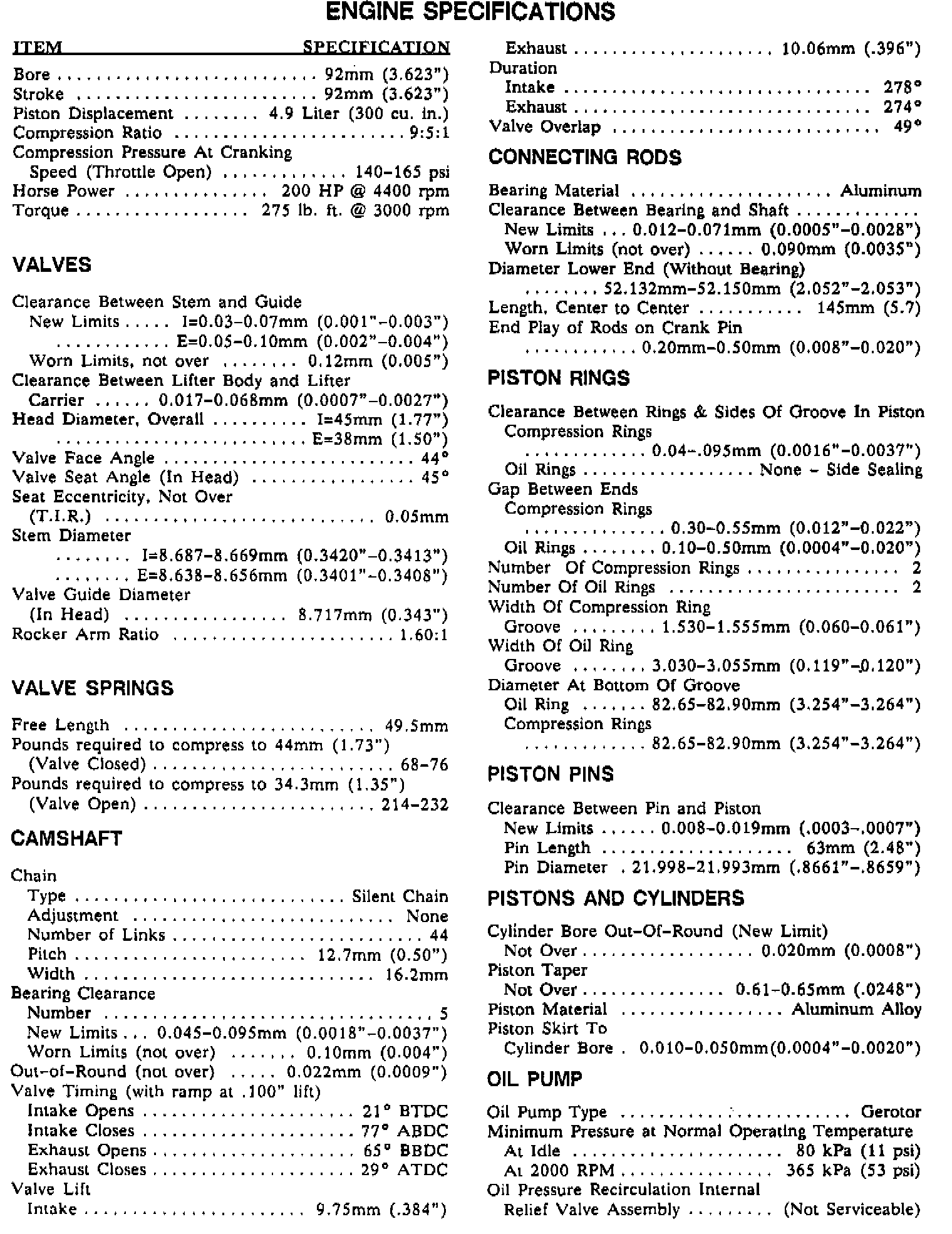

Engine Specifications:




Engine Specifications (continued):

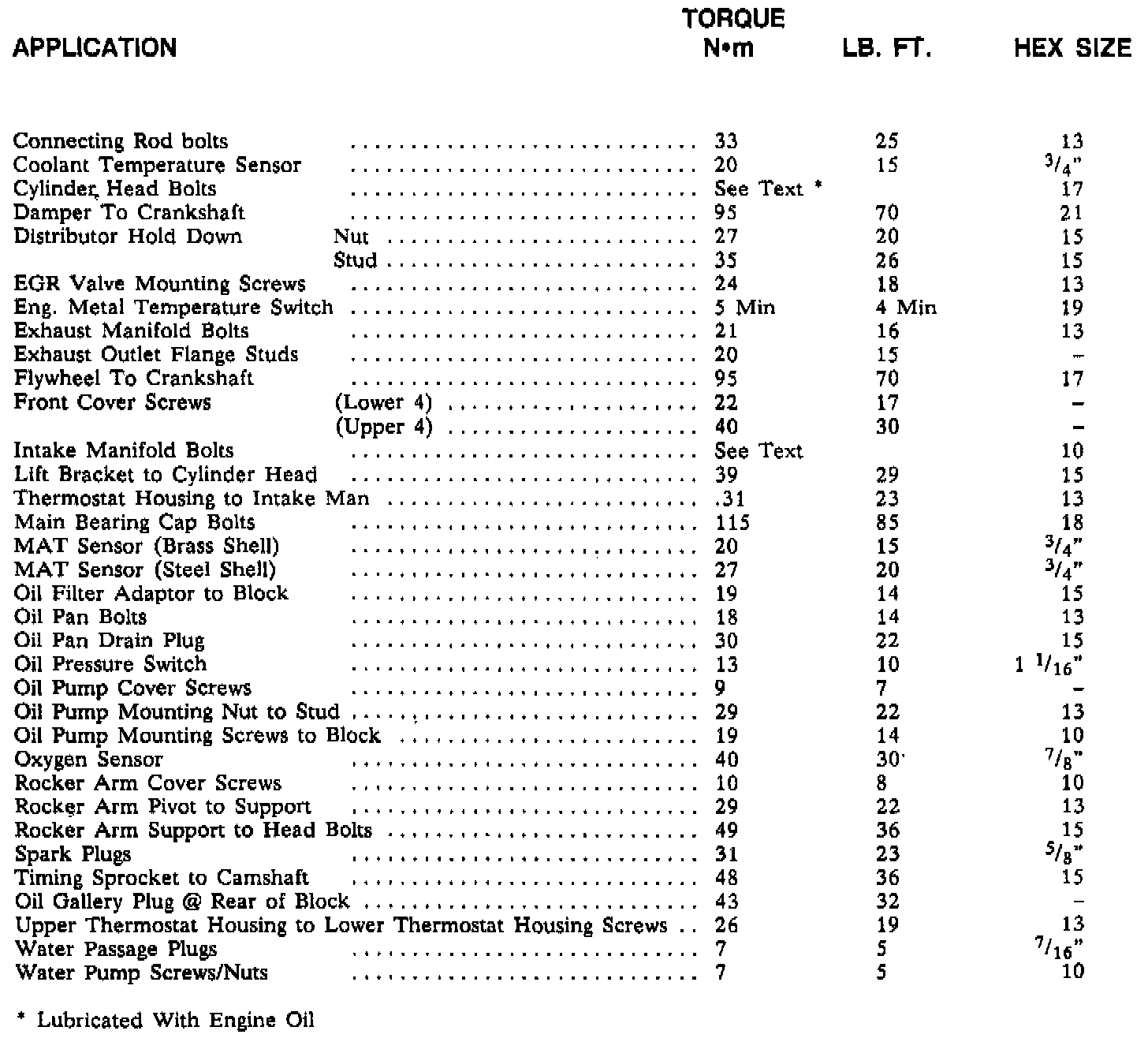

Torque Specifications:

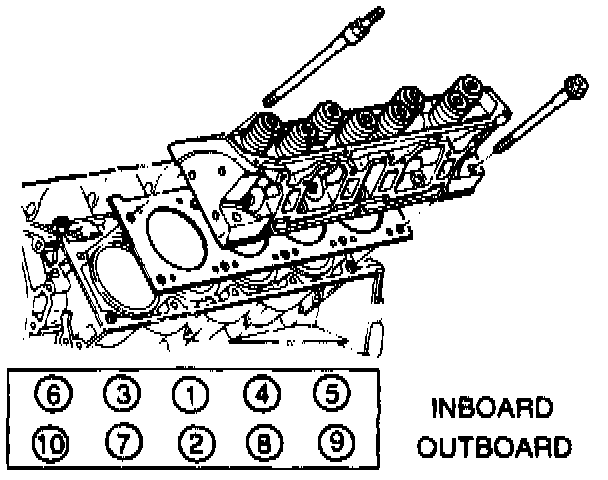

Cylinder Head Sequence:

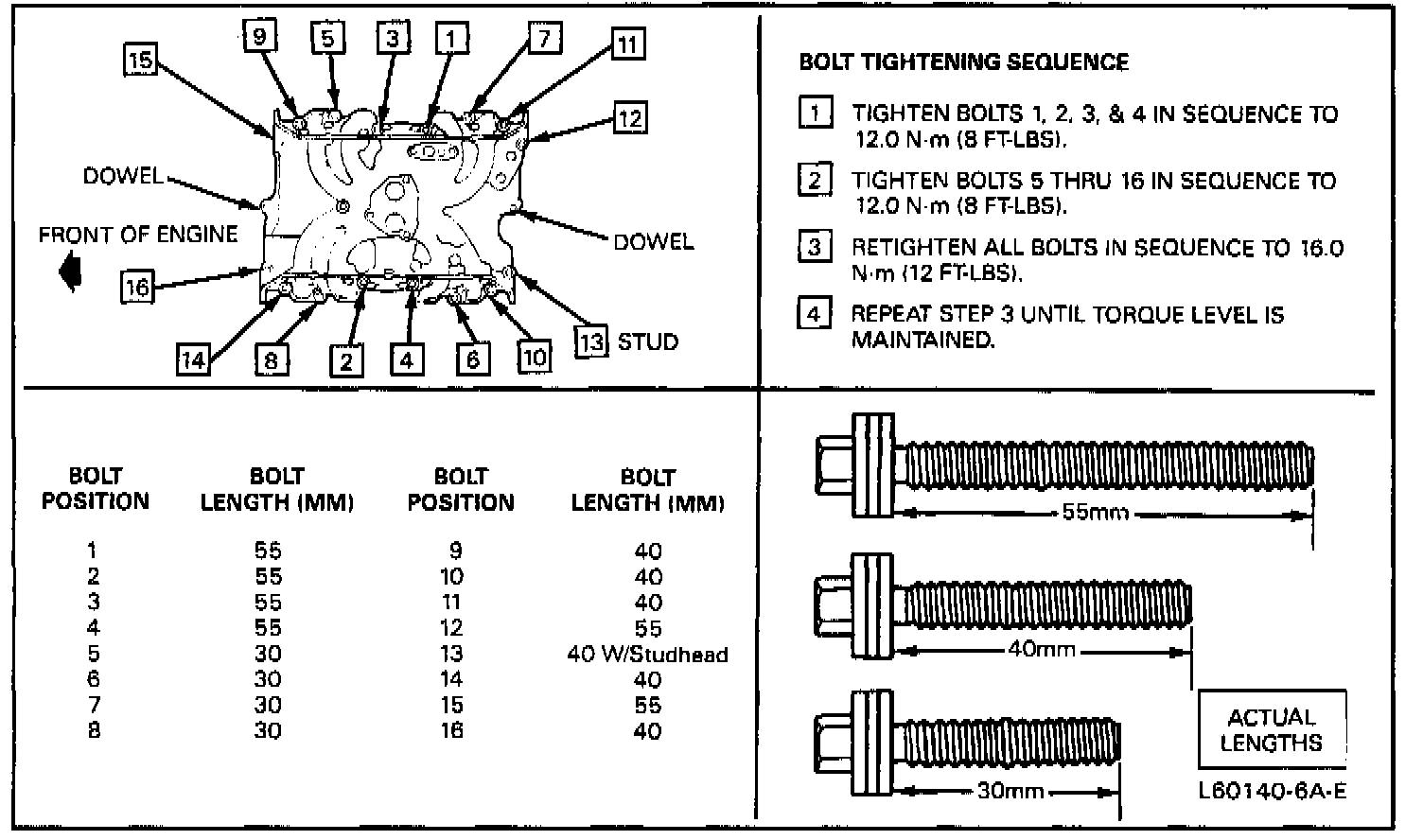

Intake Manifold Sequence:
