Power Steering Pressure Switch: Description and Operation

Power Steering Pressure Switch:

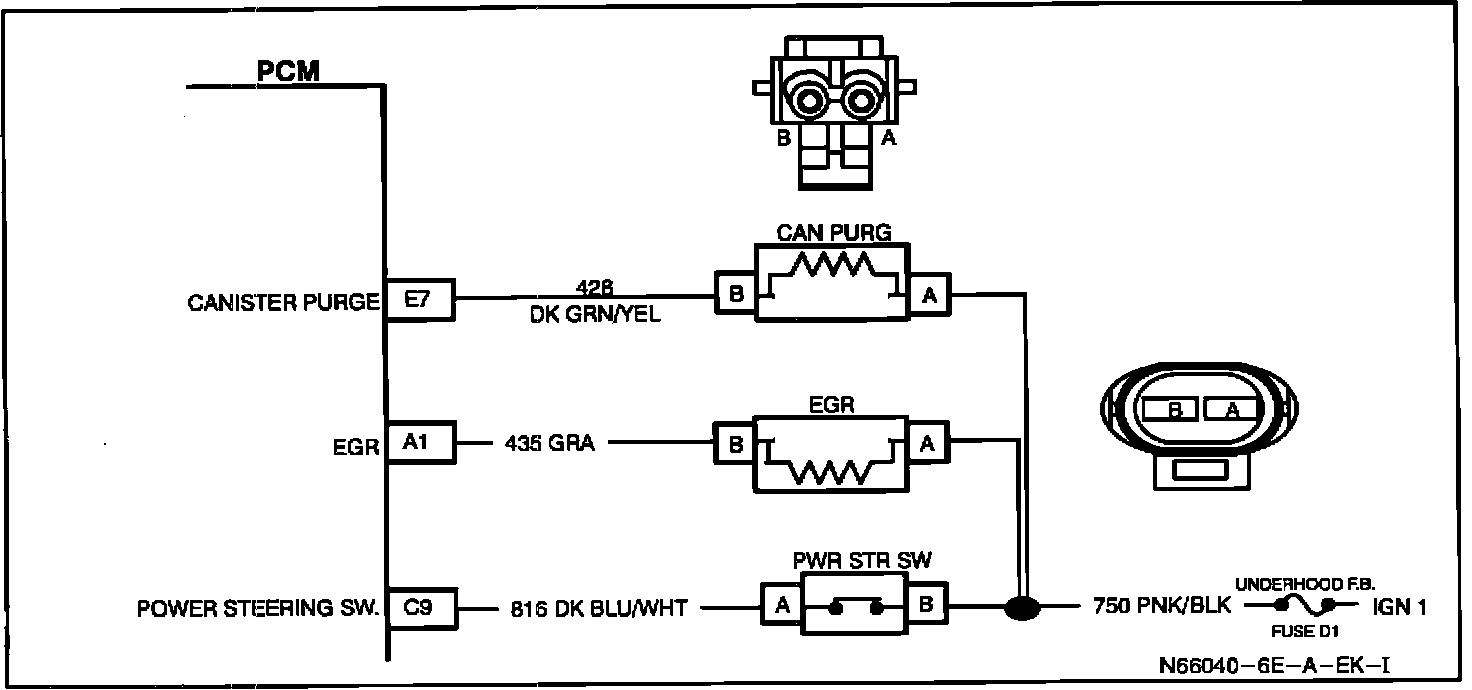

Wiring Diagram:

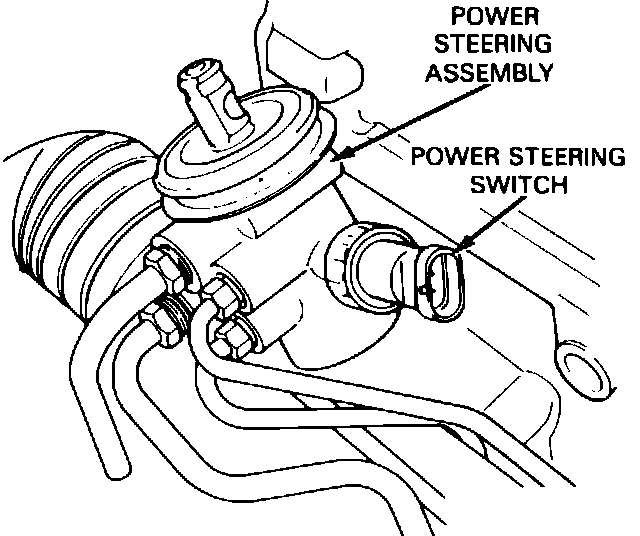

The power steering pressure switch is located at lower RH rear of engine, in power steering line. When a load is placed on the power steering, such as a full lock, the switch opens. The PCM uses the switch status to extend the idle speed control motor during high power steering pressure loads to help maintain a stable idle. Code E040 sets when vehicle speed is above 45 m.p.h. and the switch is open.
