Compressor Controls

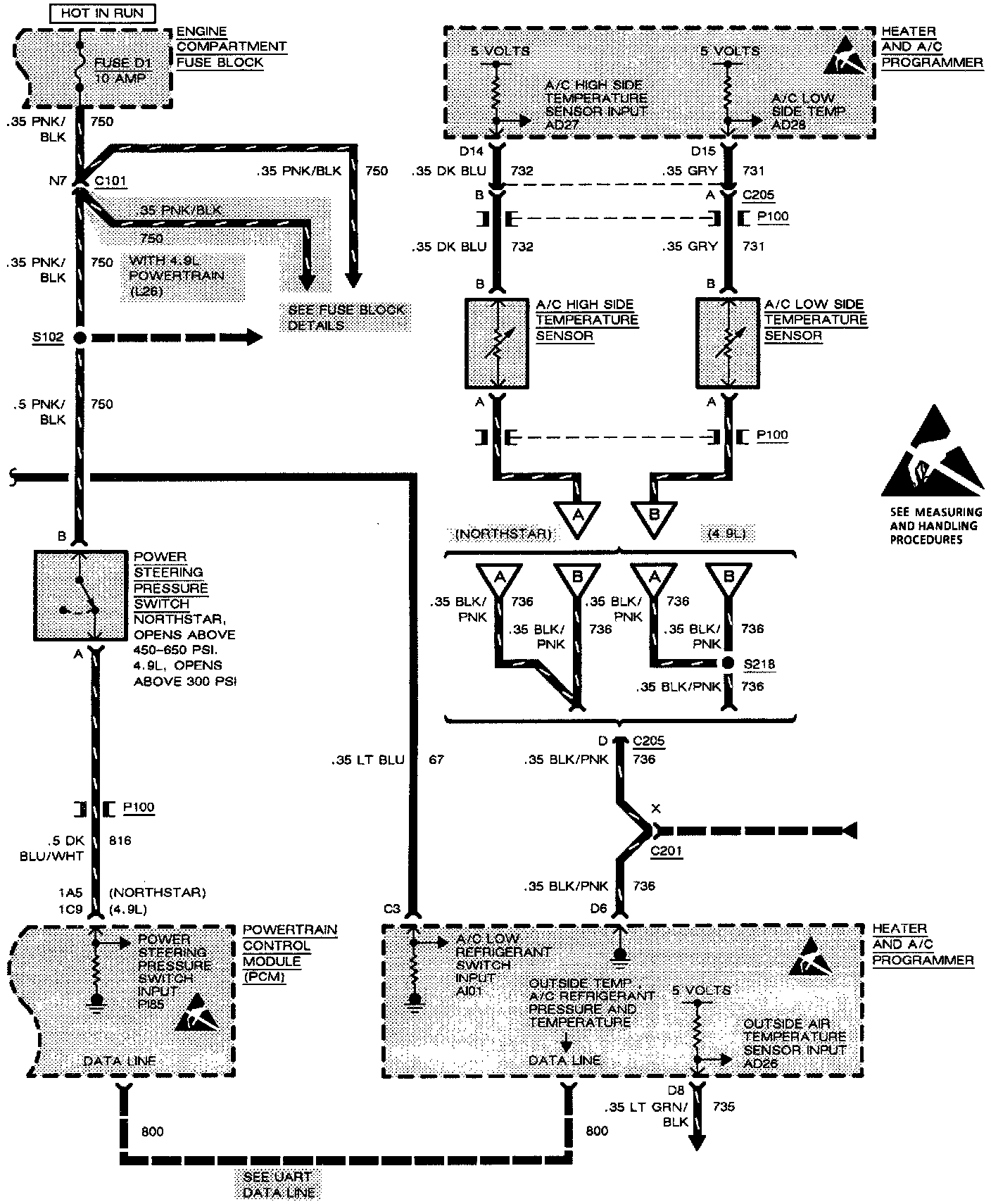

Electronic Climate Control (ECC) A/C Compressor Clutch:

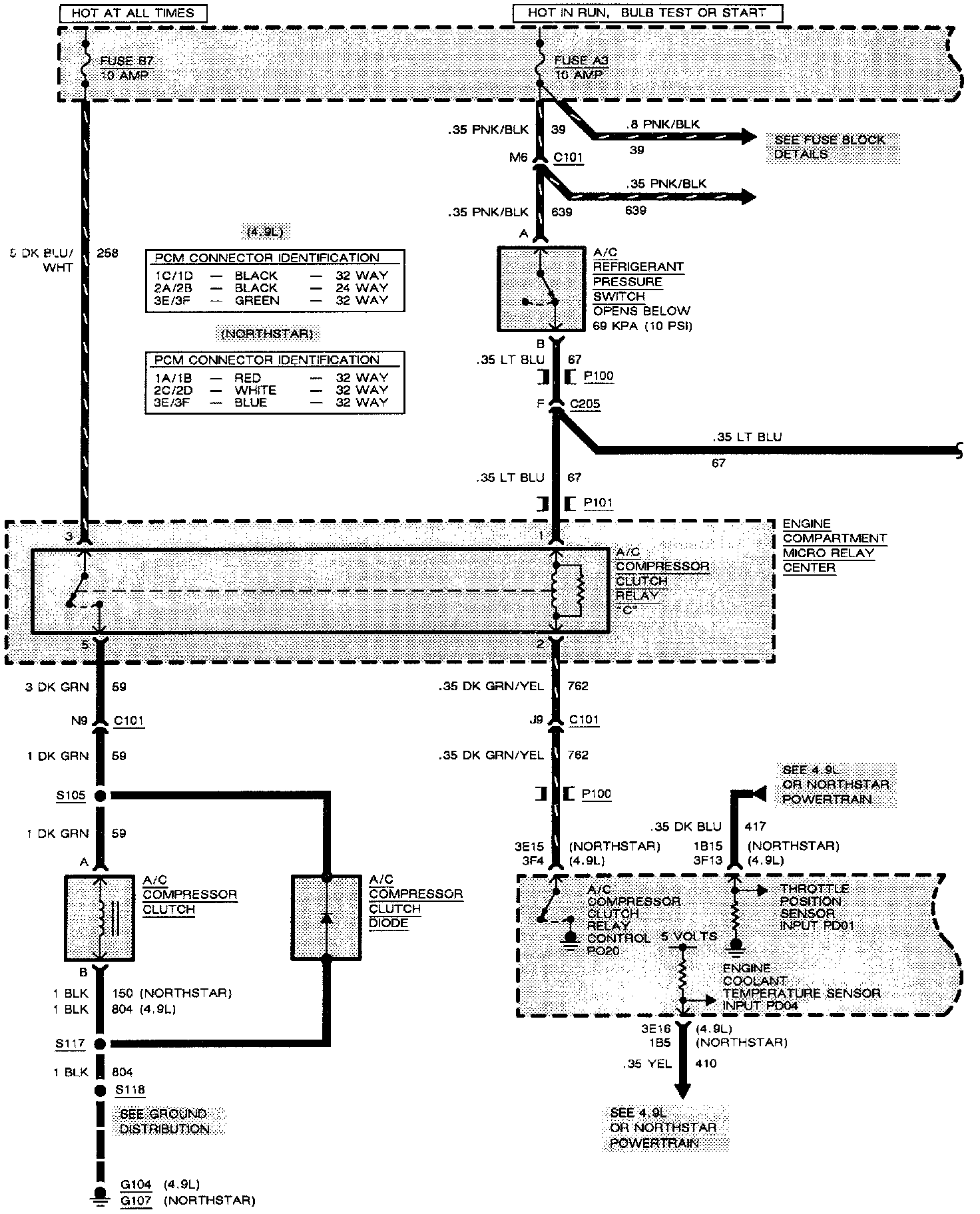

Electronic Climate Control (ECC) A/C Compressor Clutch Cont.:
