System Specifications

Cylinder Head Bolts

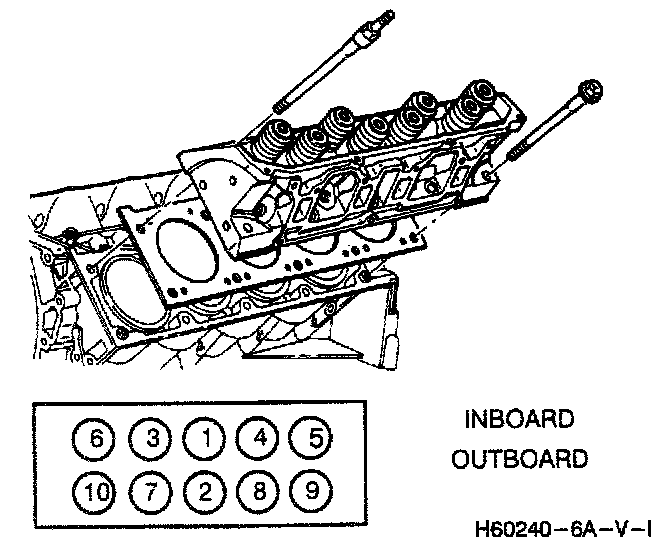

In the sequence shown (refer to image):

A. Torque all bolts to 50 N.m (38 lbs. ft.)
B. Torque all bolts to 90 N.m (68 lbs. ft.)
C. Torque bolts 1, 3 & 4 to 120 N.m (90 lbs. ft.)
