Home >> Cadillac >> 1996 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Dimension & Clearance Specifications - Engine

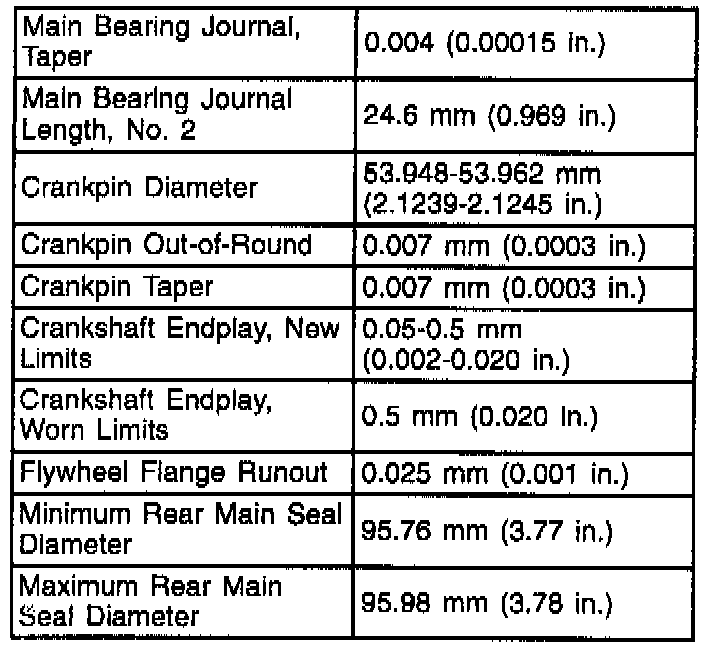

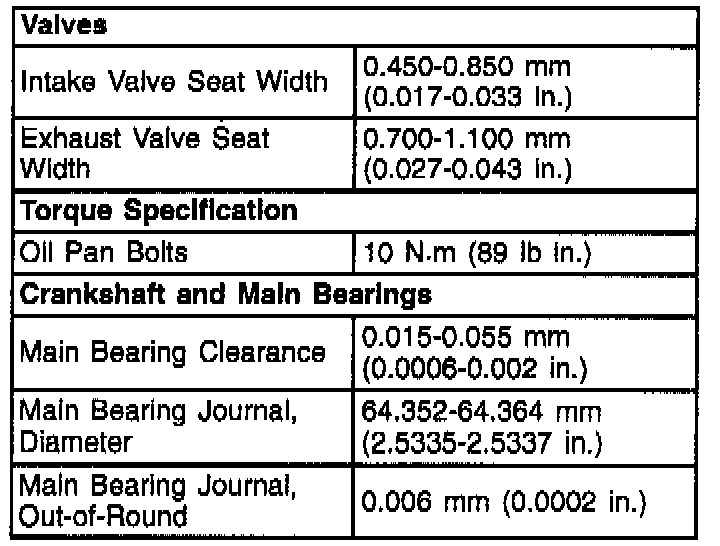

Dimension & Clearance Specifications - Engine


This article has been updated with bulletin No.: 57-61-34A.

REVISED ENGINE SPECIFICATIONS
