Brake Drum: Service and Repair

REMOVAL PROCEDURE
1. Release the parking brake.
2. Raise the vehicle and support the vehicle with safety stands.
3. Remove the propeller shaft.

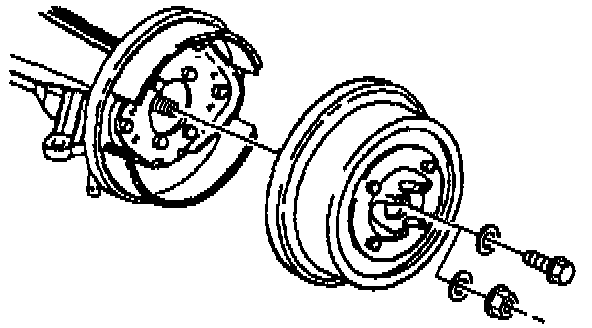

4. Remove the nut and washer if equipped with a manual transmission.
5. Remove the bolt and washer if equipped with an automatic transmission.
6. Disconnect the drum and yoke assembly.

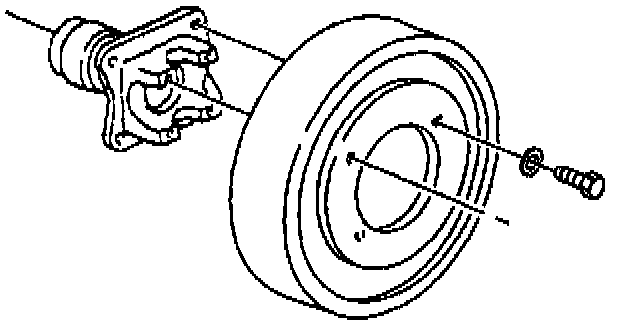

7. Remove the bolts and the washers.
8. Remove the drum from the yoke.

INSTALLATION PROCEDURE

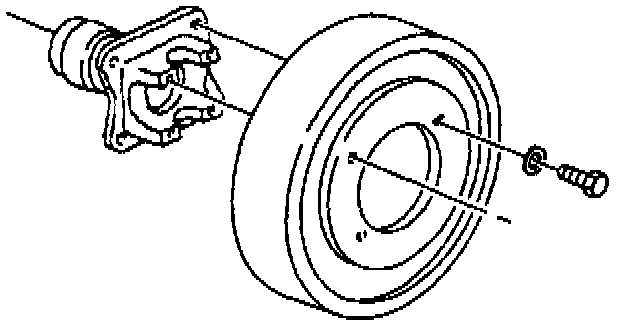

1. Connect the drum to the yoke.





2. Install the bolts and the washers.
^ Tighten the bolts to 37 Nm (27 ft. lbs.).

NOTICE: Refer to Service Precautions.

3. Install the drum and the yoke assembly.





4. Install the washer and the nut if equipped with manual transmission.
5. Install the washer and bolt is equipped with an automatic transmission.
^ Tighten the nut to 475 Nm (350 ft. lbs.).
^ Tighten the bolt to 122 Nm (122 ft. lbs.).

6. Install the propeller shaft.
7. Lower the vehicle.
