Crankshaft Balancer Removal

^ Tools Required
- J 41816 Crankshaft Balancer Remover





1. Secure the flywheel in order to prevent crankshaft rotation.
2. Remove the crankshaft balancer bolt.

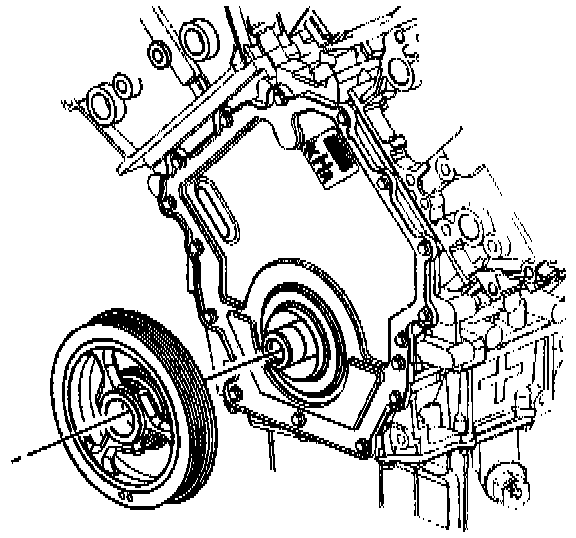

3. Place the remover pilot in the end of the crankshaft.

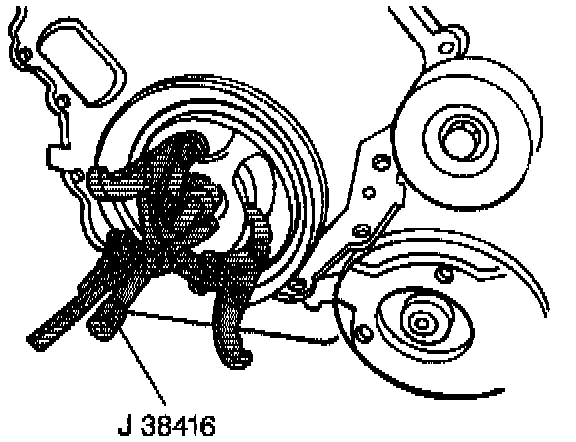

4. Position the legs of the J 41816 onto the backside of the balancer inner hub.
5. Tighten the center screw on the puller until the balancer pulls clear of the crankshaft end.





6. Remove the crankshaft balancer.
