Trim Panel Replacement - Right

REMOVAL PROCEDURE
1. Remove the upper trim panel.
2. Remove the Instrument panel cluster.

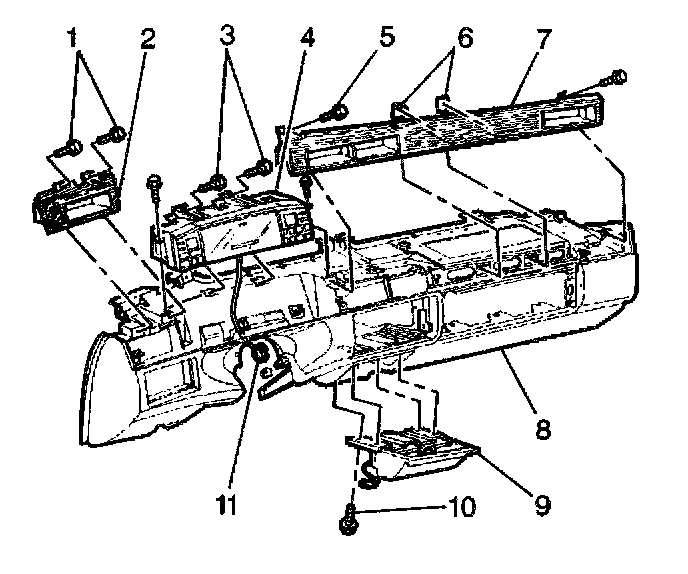

3. Remove the 2 fasteners (5) that retain the right hand trim panel.
4. Release the 2 hook and loop patches (6) from the backside of the right hand trim panel (7).
5. Remove the trim panel (7).

INSTALLATION PROCEDURE
1. Place the right hand trim panel (7) into position.
2. Install the trim panel (7).
3. In order to secure the hook and loop patches, press into place.
4. Install the 2 fasteners (5) in order to retain the right hand trim panel (7).
5. Install the Instrument panel cluster.
6. Install the upper trim panel.
