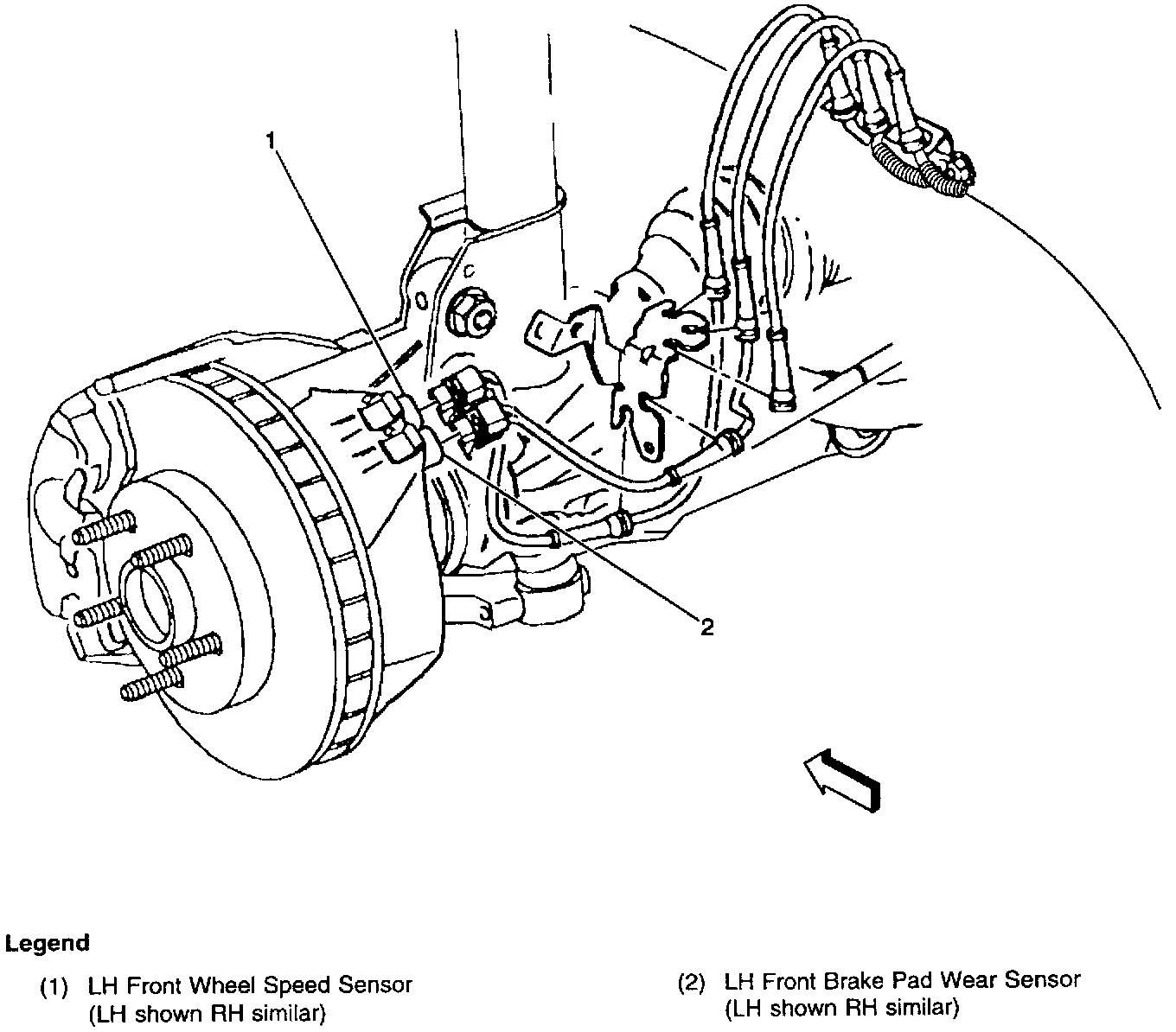

Front Wheel Speed Sensors And Brake Pad Wear Sensors:
Behind the left hand front wheel, on the back of the front hub
