Blower Control Module

Removal Procedure





1. Remove the left closeout/insulator panel.

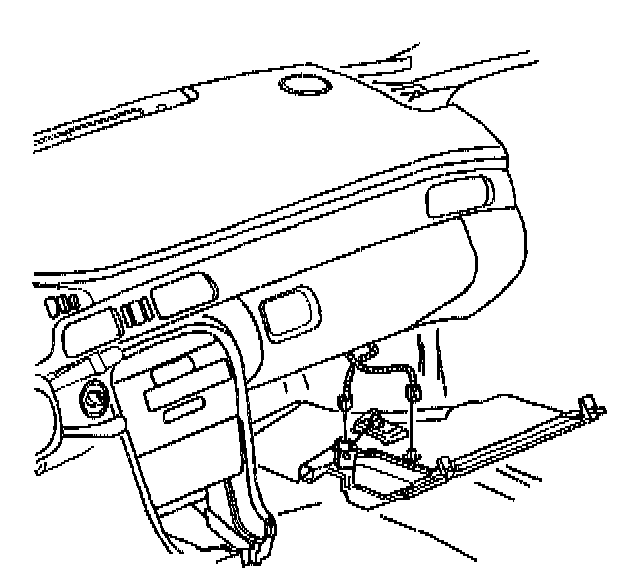

2. Remove the IP compartment.





3. Remove the dash integration module (DIM) from the bracket. Lay aside the DIM.

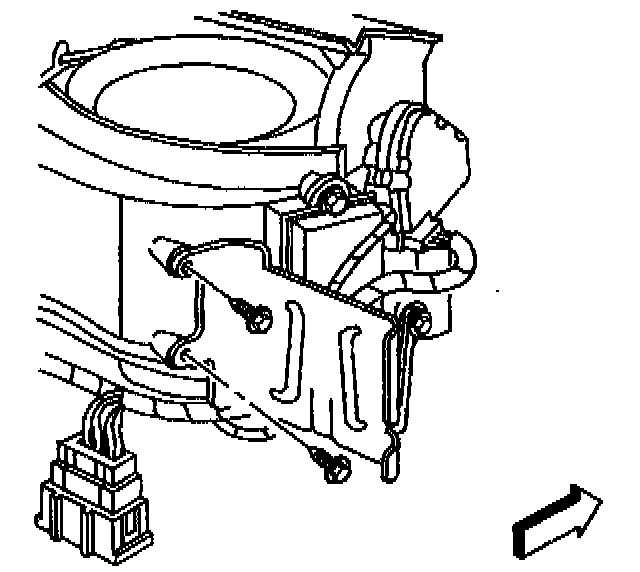

4. Remove the two rear dash integration module bracket screws.

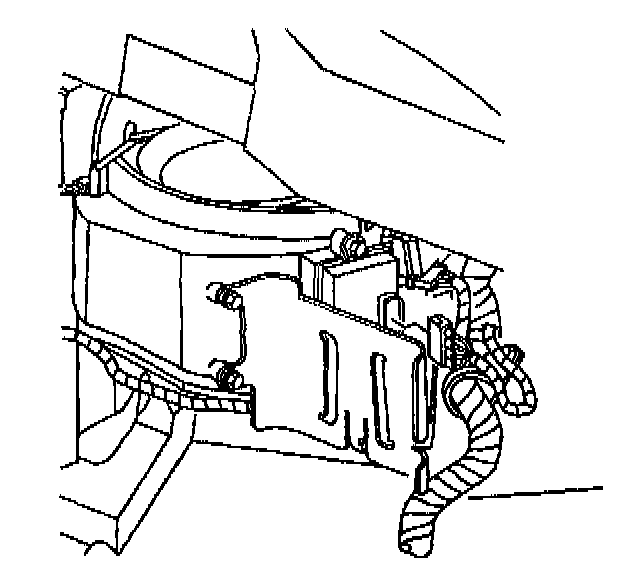

5. Push downward on the dash integration module bracket to gain access to the blower control module.

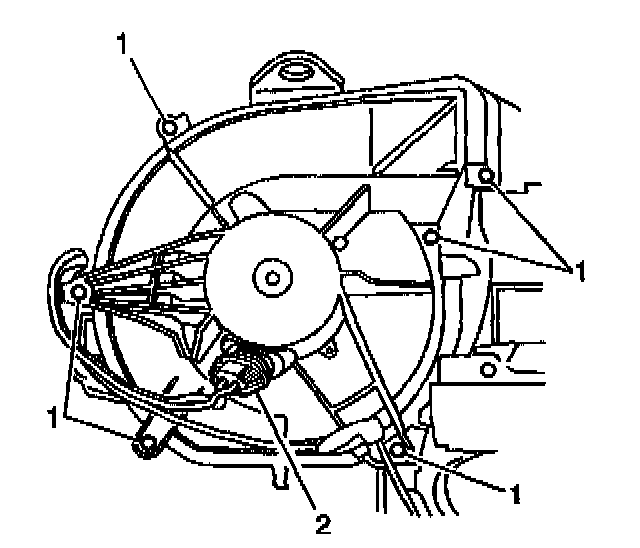

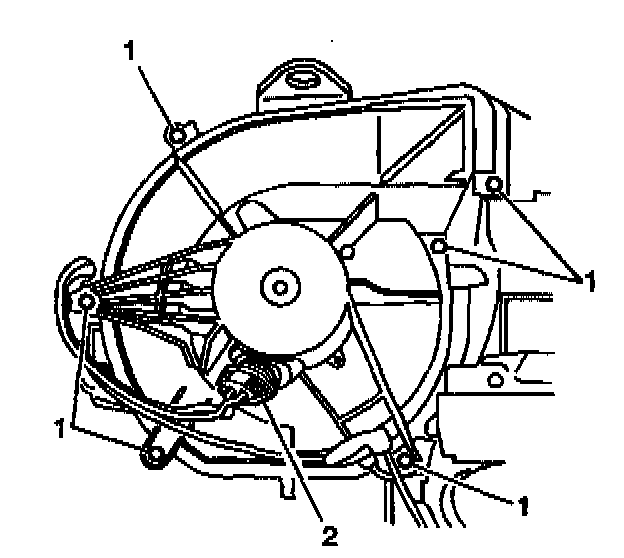

6. Disconnect the blower motor electrical connector (2).





7. Disconnect the blower control module electrical connector.

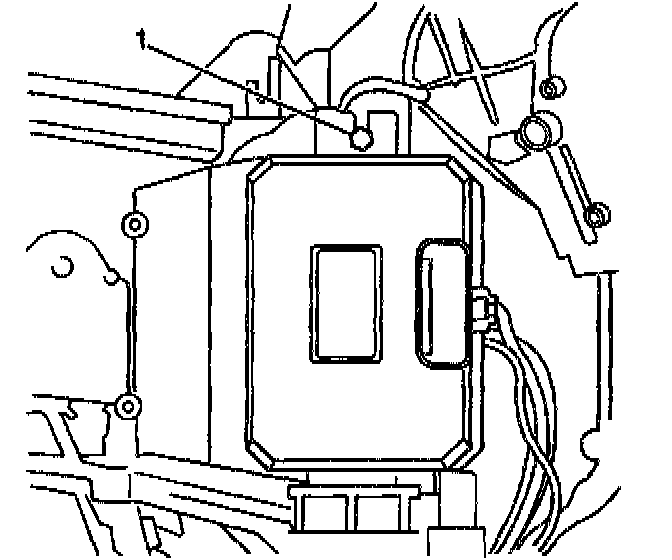

8. Remove the blower control module retaining screw (1).
9. Remove the blower control module.

Installation Procedure

1. Install the blower control module.

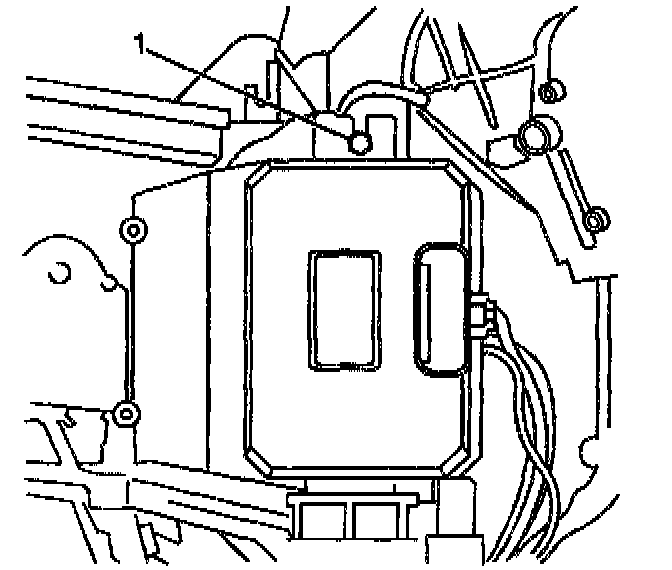

2. Install the blower control module retaining screw (1).





3. Connect the blower control module electrical connector.





4. Connect the blower motor electrical connector (2).





5. Reposition the dash integration module bracket to its original position.

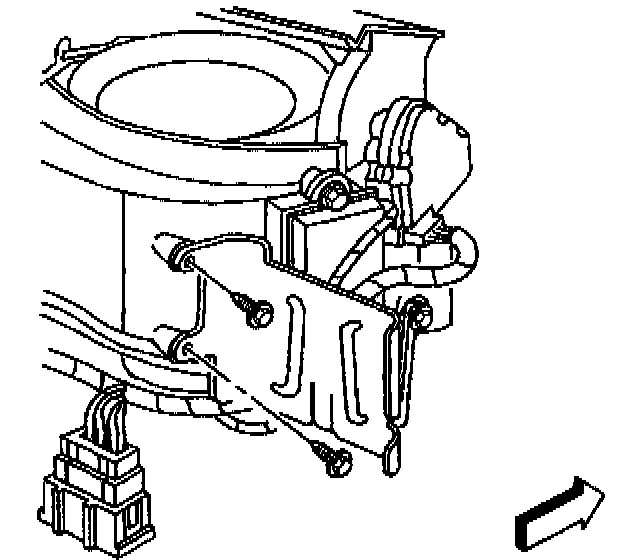

6. Install the two rear dash integration module bracket screws.
7. Install the dash integration module to bracket.

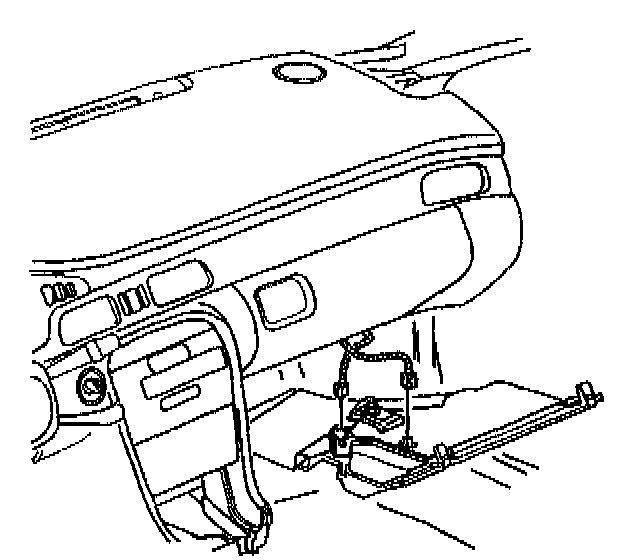

8. Install the IP compartment.





9. Install the right sound insulator.
