Home
>>
Cadillac
>>
1999
>>
Seville SLS V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Light Switch
>>

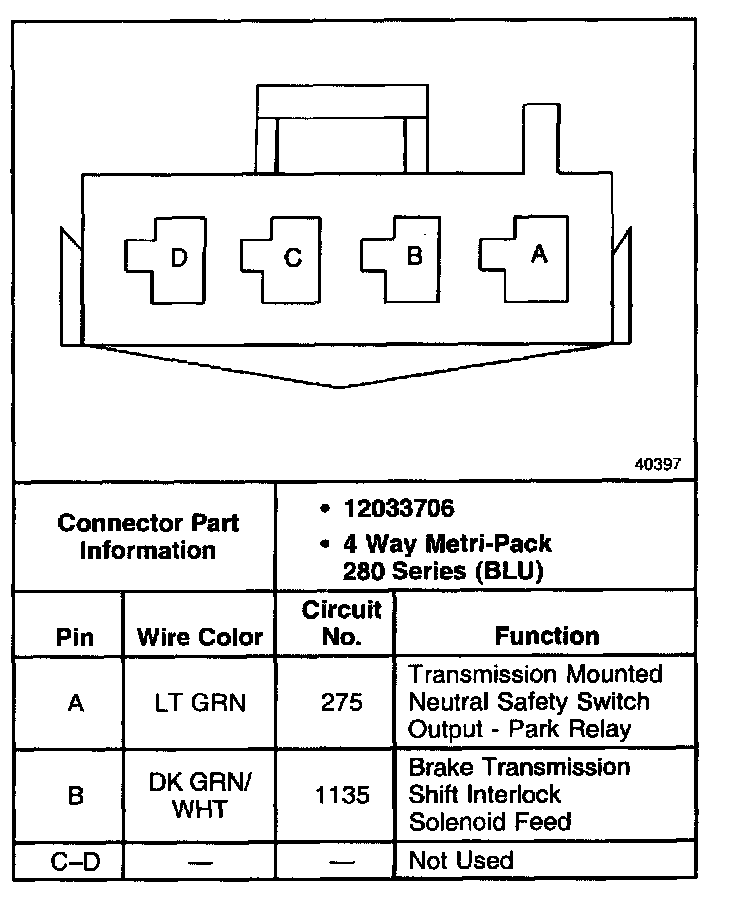

Stoplamp /BTSI Switch: C2
Stoplamp /BTSI Switch: C2
Stoplamp /BTSI Switch: C2:
