Home
>>
Cadillac
>>
1999
>>
Seville SLS V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
Automatic Day-Night Mirrors
>>
Inside Mirror
Inside Mirror

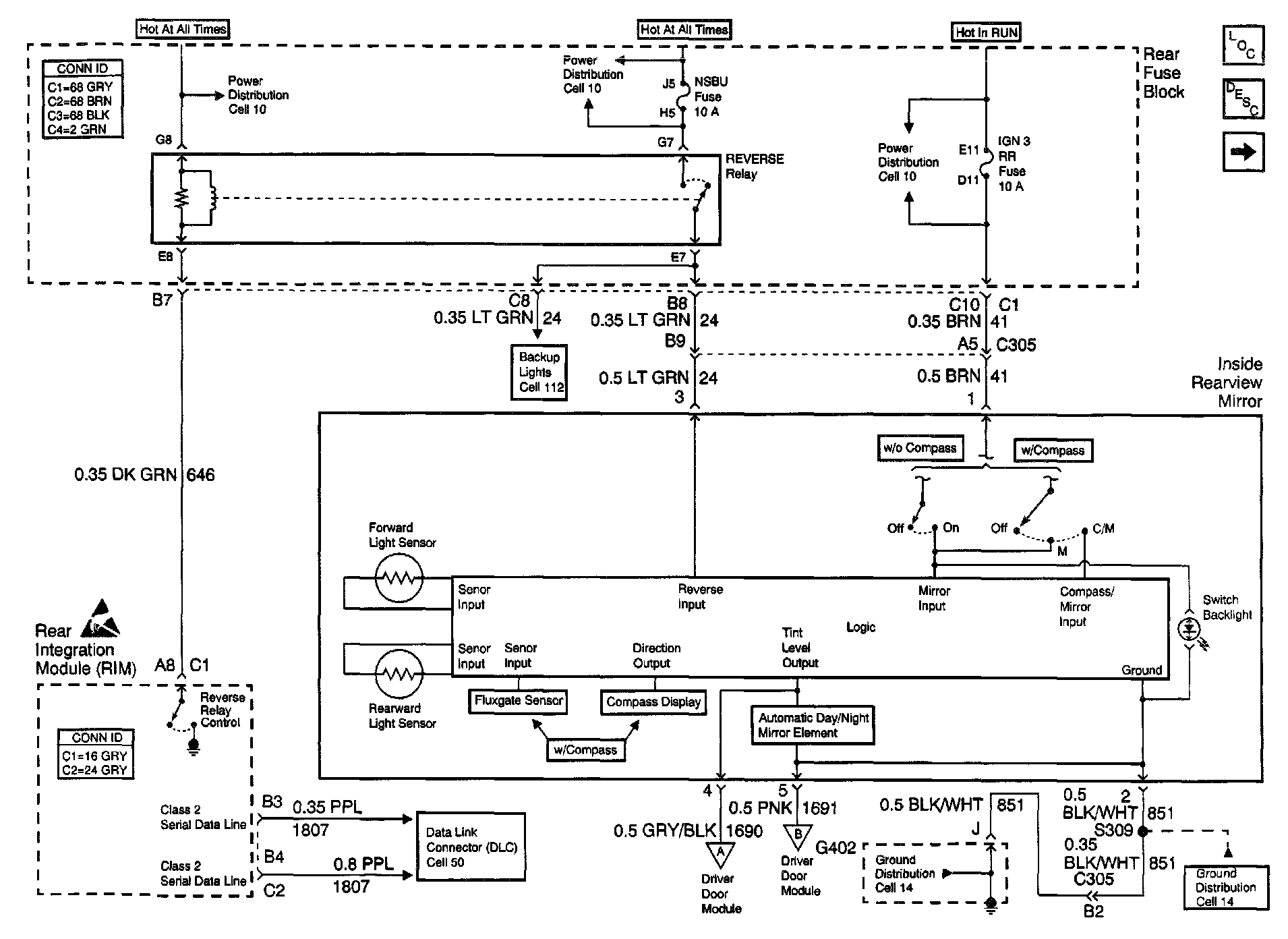

Automatic Day-Night Mirrors Schematics: Inside Mirror:
