Home >> Cadillac >> 1999 >> Seville SLS V8-4.6L VIN Y >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution Diagrams >> Navigational Aids >> Ground Schematics >> A >> From

From

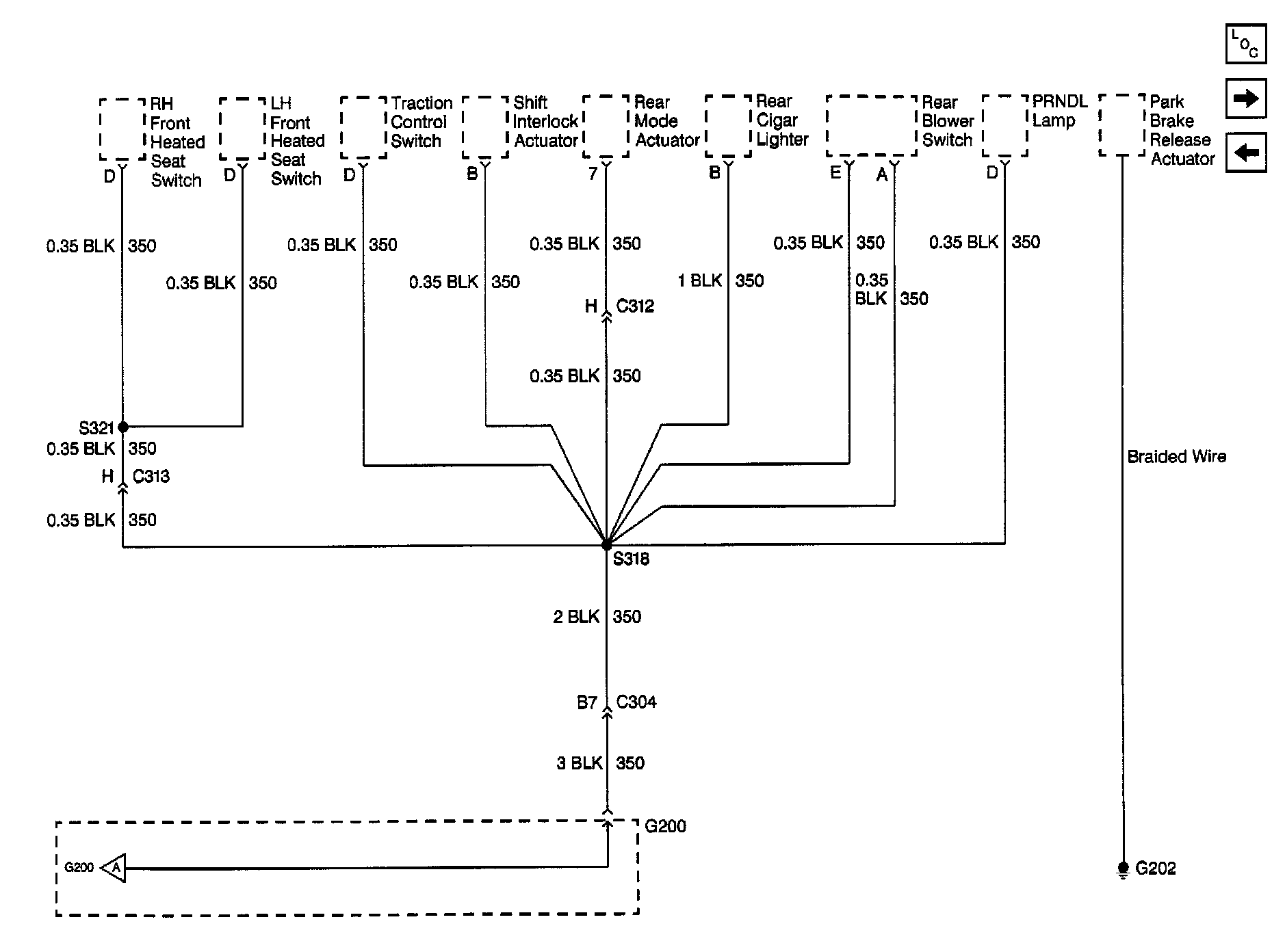

Ground Distribution Schematics: G202 And G200 (Part 2 Of 2):
