Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Underhood Fuse Block >> C1

C1

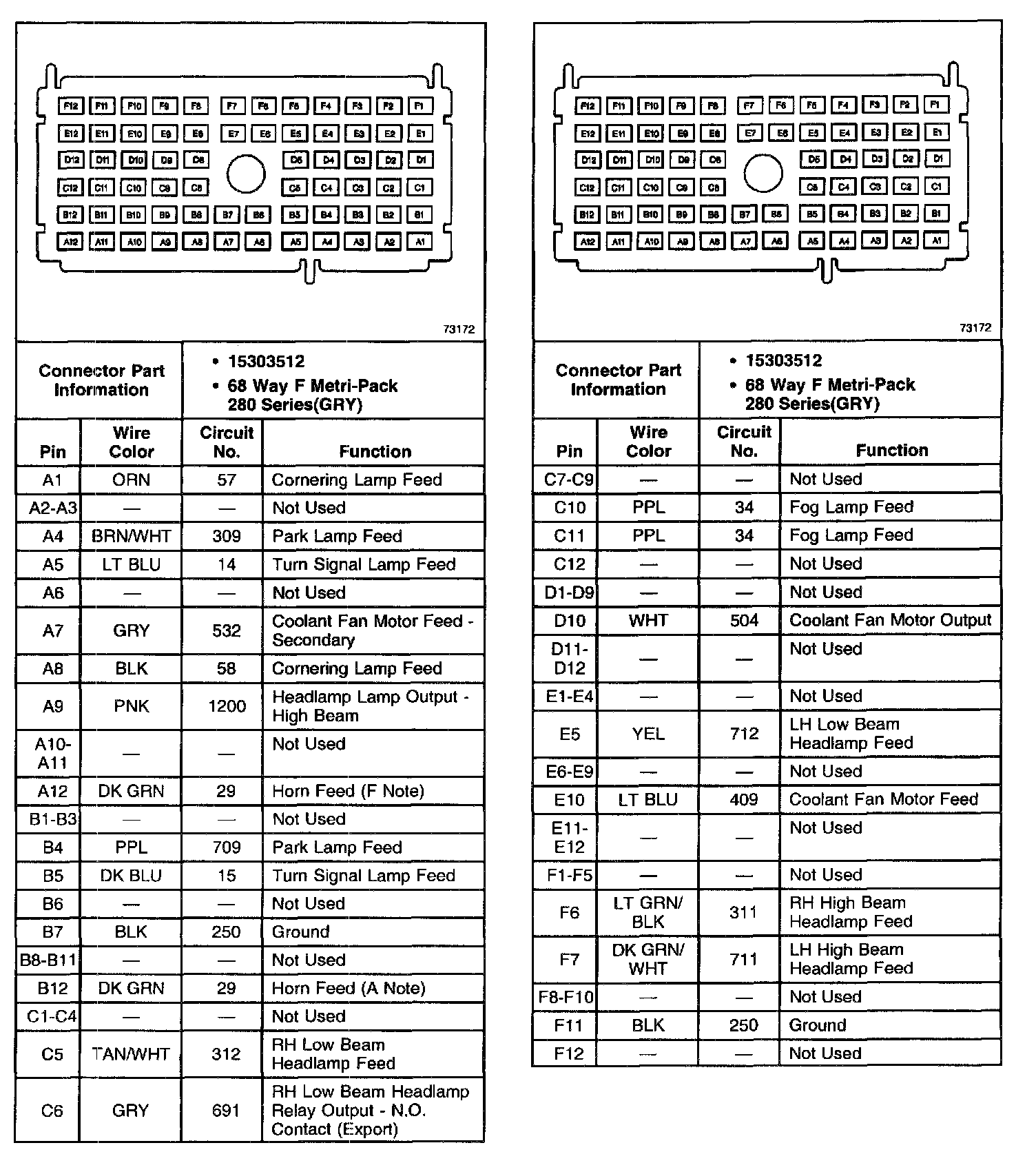

Underhood Fuse Block: C1:
