Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Underhood Fuse Block >> C3

C3

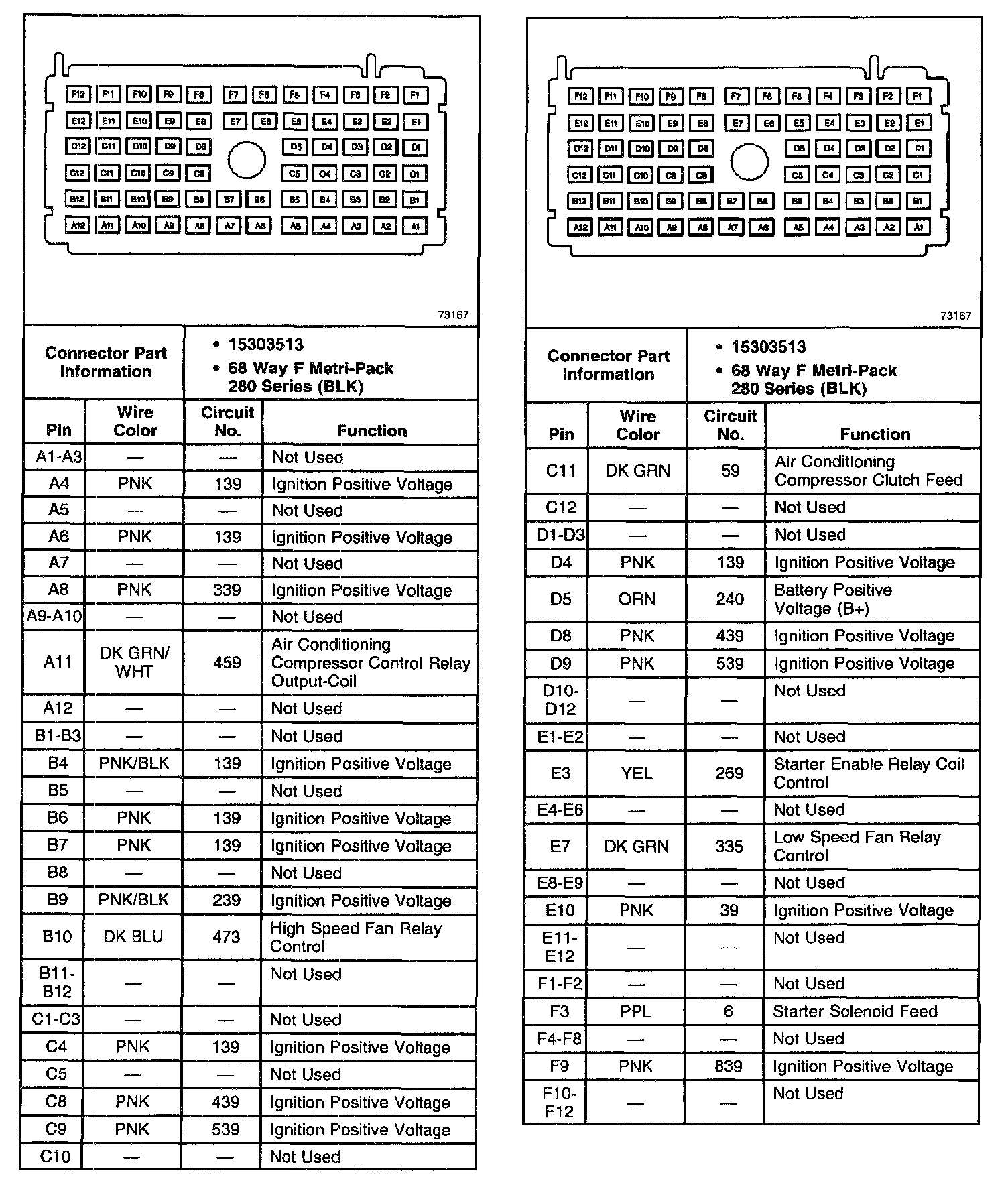

Underhood Fuse Block: C3:
