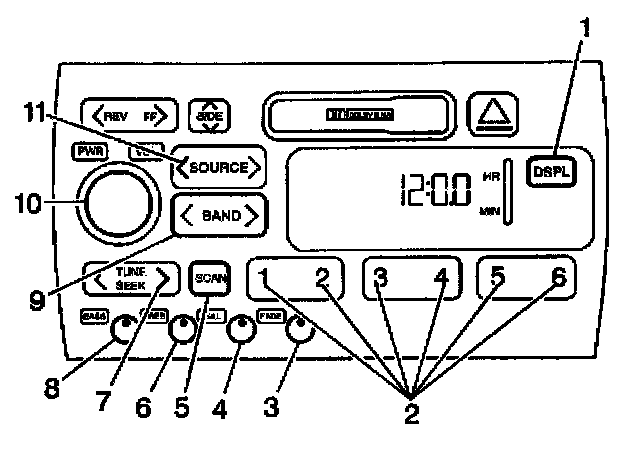

Radio/Audio System Operation-Radio Controls

^ DSPL (1) - Pressing this button will display either the time of day or the current station being played.
^ Preset Stations (2) - The six preset buttons can be preset for up to 18 stations, 6 each of the AM, FM1, and FM2 bands. Preset the stations as follows:
- Select the desired band using the BAND button.
- Tune to the desired station.
- Press and hold one of the six preset buttons until a chime sounds. (The display channel number and the audio will return.)
- Holding the button for longer than two seconds will activate the fast seek mode.
^ FADE (3)
- Lightly press the knob in order to extend outward.
- Turn the knob clockwise or counterclockwise in order to move the sound to the RH or LH speakers.
- The middle knob position is a detent and balances the speakers.
^ BAL (4)
- Lightly press the knob in order to extend outward.
- Turn the knob clockwise or counterclockwise in order to move the sound to the RH or LH speakers.
- The middle knob position is a detent and balances the speakers.
^ SCAN (5)
- Press and hold this button for 2-3 seconds or until the display shows PSCAN.
- Each of the presets will be scanned for a few seconds and will continue until the button is pressed again.
^ TREBLE (6)
- Lightly press the knob in order to extend outward.
- Rotate the knob clockwise or counterclockwise in order to increase or decrease the treble response of the music.
^ TUNE/SEEK (7)
- Press this button until a chime is heard in order to tune to the next higher or lower frequency.
- If the button is held for more than two seconds after the chime, the radio will go into the fast tune mode.
- Release the button when the desired station is reached.
^ BASS (8)
- Lightly press the knob in order to extend outward.
- Rotate the knob clockwise or counterclockwise in order to increase or decrease the bass response of the music.
^ BAND (9)
- Press up for access to the FM1 and FM2 bands.
- Press down for access to the AM band.
^ PWR/VOL Knob (10)
- Press the volume knob in order to turn the radio ON or OFF.
- Turn the knob clockwise/counterclockwise in order to turn the volume up or down. The knob is designed to turn infinitely.
^ SOURCE 11 - Press this button in order to toggle between the radio, cassette, and CD functions.
^ HR/MIN (Clock)
- Press DSPL until the clock is displayed.
- Press and hold HR or MIN until the time display begins to change.
- Release the button when you reach the correct time.
- There is a two second delay before the clock goes into the time-set mode.
