21. Oil Pump Removal

^ Tools Required
- J 42065 Crank Hub Holding Tool
- J 42098 Crank Hub Torx Socket





1. Mount the J 42065 to prevent movement of the crankshaft.
2. Use the J 42098 to remove the crankshaft driver gear bolt.





3. Remove the crankshaft drive gear.

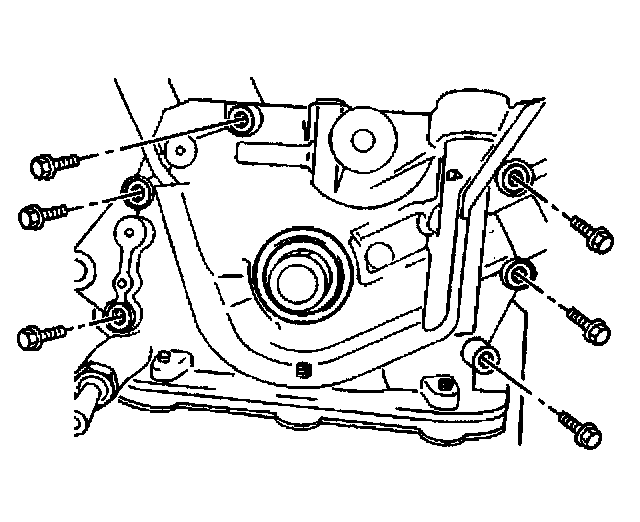

4. Remove the oil pump bolts.
5. Remove the oil pump.
6. Remove the front main oil seal and collar from the oil pump.
