3. Intake Manifold Removal

1. Disconnect the fuel injection rail electrical connector.

Important: Counterhold the fuel rail with a wrench when removing the fuel hoses to prevent damage to the fuel rail.

2. Remove the fuel supply and return hoses from the fuel rail.

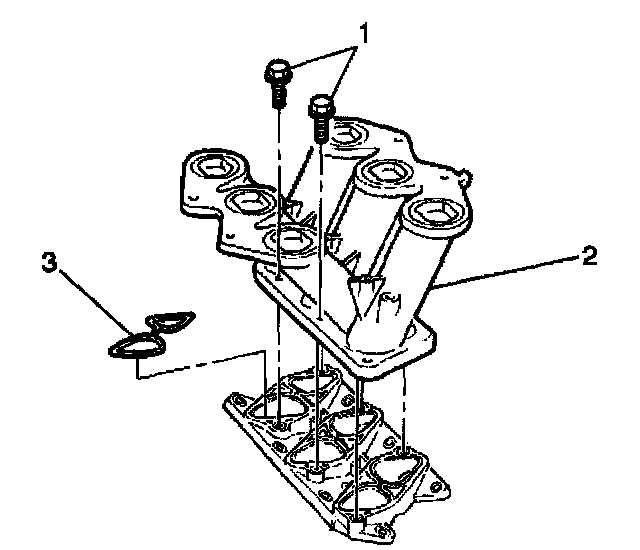

3. Remove the intake manifold bolts (1).
4. Remove the intake manifold (2).
5. Remove the seals (3).
