Courtesy Lamp: Service and Repair

Side Rail Lamp Replacement

REMOVAL PROCEDURE




1. Remove the roof rail courtesy reading lamp.

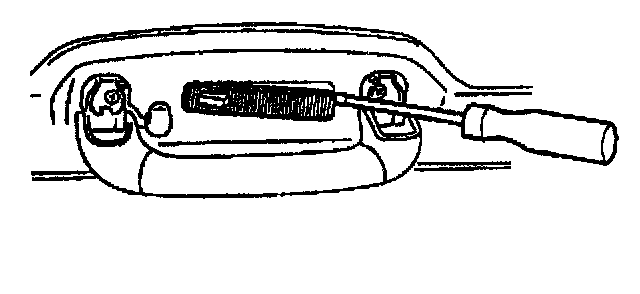

1.1. Insert a flat-bladed screwdriver to the side edge.
1.2. Push downward to release.




2. Disconnect the electrical connectors from the roof rail courtesy reading lamp.

INSTALLATION PROCEDURE




1. Install the electrical connectors to the roof rail courtesy reading lamp.




2. Install the root rail courtesy reading lamp.
