C1252

Circuit Description

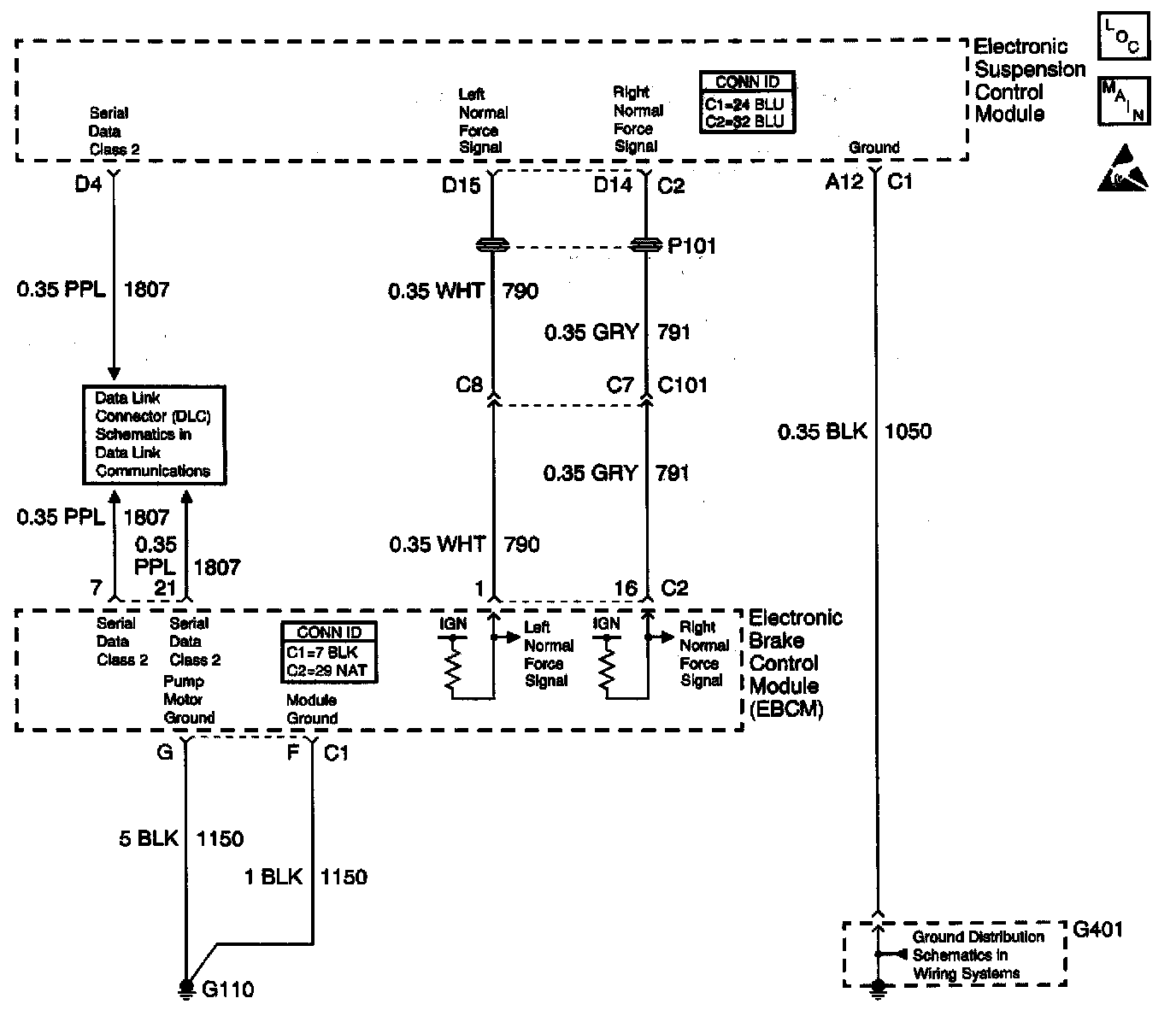

The CVRSS calculates normal force and transmits a PWM signal to the EBCM via two dedicated data lines, one right, and one left. The EBCM supplies the pull up voltage. The EBCM uses this information to detect rough road conditions and allows for more aggressive braking on rough surfaces.

Conditions for Running the DTC
^ The ignition is ON.
^ DTC C1251 is not set.

Conditions for Setting the DTC
One of the following conditions are present for more than 5 seconds out of any 10 second period.
^ The PWM duty cycle sent from the CVRSS is between 10% and 90%.
^ The normal force value sent to the EBCM does not match either the previous or next normal force value. The CVRSS sends each value twice therefore any normal force value should match either the previous or next normal force value. The possible values of the duty cycle are 20%, 40%, 60%, and 80%.

Action Taken When the DTC Sets
^ The EBCM disables the rough road detection function of the VSES for the duration of the ignition cycle.
^ The ABS/TCS/VSES remains functional.

Conditions for Clearing the DTC
^ The condition for the DTC is no longer present (the DTC is not current) and you used the scan tool Clear DTC function.
^ The condition for the DTC is no longer present (the DTC is not current) and you used the On-Board Diagnostics Clear DTC function.
^ The EBCM automatically clears the history DTC when a current DTC is not detected in 100 consecutive drive cycles.

Test Description

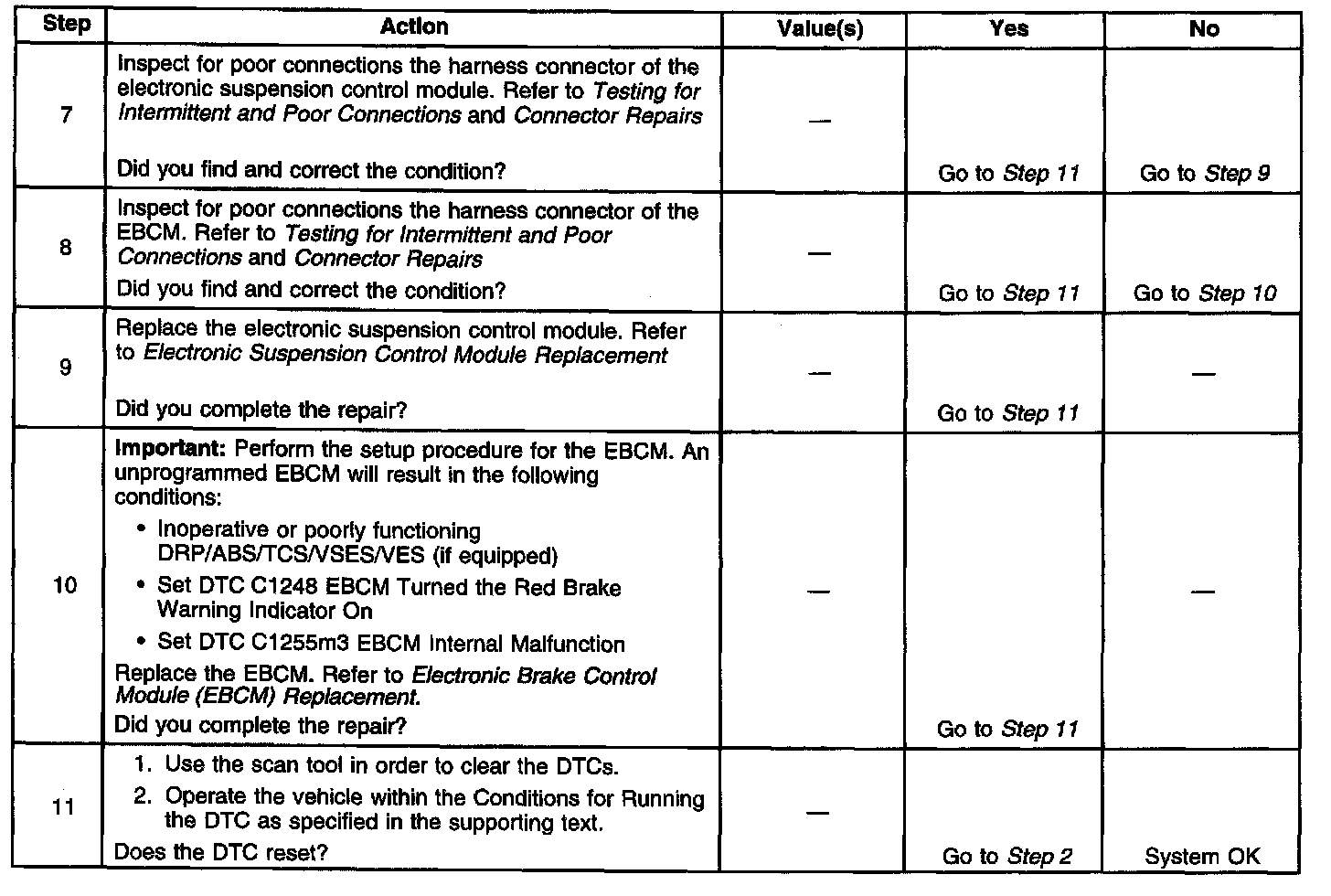

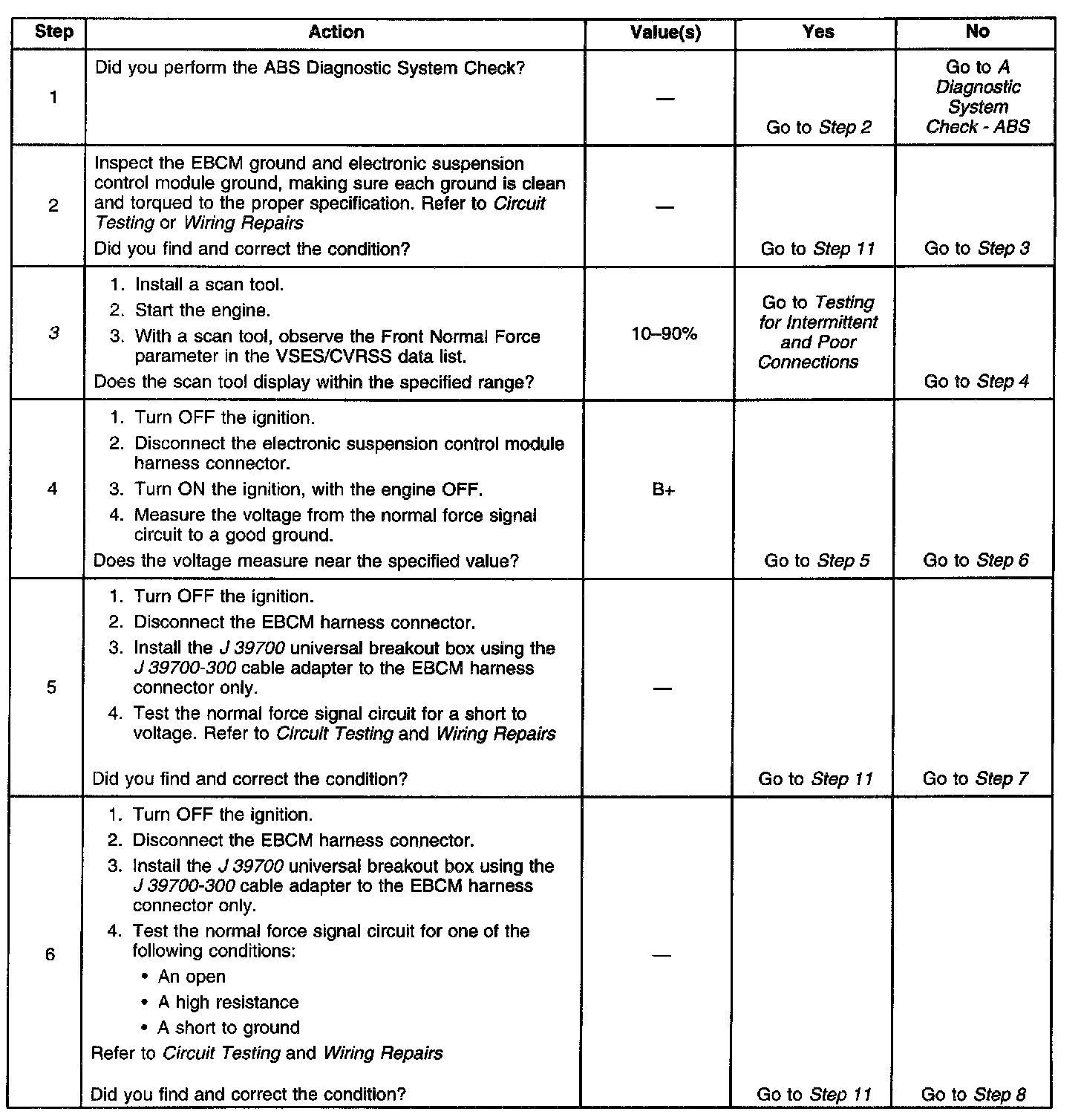

The number below refers to the step number on the diagnostic table.
3. This step determines whether the front normal force signal has a valid duty cycle.
