Defroster Grille Replacement (With RPO Code UV2)

Defroster Grille Replacement (UV2)

Removal Procedure

Caution: Refer to SIR Caution.

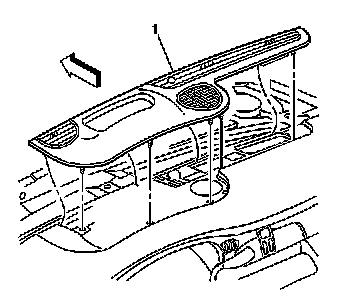

1. Using a flat bladed tool, pry upward on the rear edge of the defroster grille (1) in order to release defroster grille (1) retaining clips from the IP upper trim pad.




2. Disconnect the sunload sensor electrical connector (2).




3. Pull up on the rear edge, and then rearward, in order to remove the defroster grille (1).
4. Remove the defroster grille (1) from the instrument panel.



Installation Procedure

1. Partially install the defroster grille.




2. Reconnect the sunload sensor electrical connector (2) to the sunload sensor (1).




3. Insert the forward edge of the defroster grille (1) to the IP.
Align the defroster grille with the IP opening.
4. Press down along the rear edge of the defroster grille (1) in order to engage the retainer clips.
