Home >> Cadillac >> 2000 >> DeVille V8-4.6L VIN 9 >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List

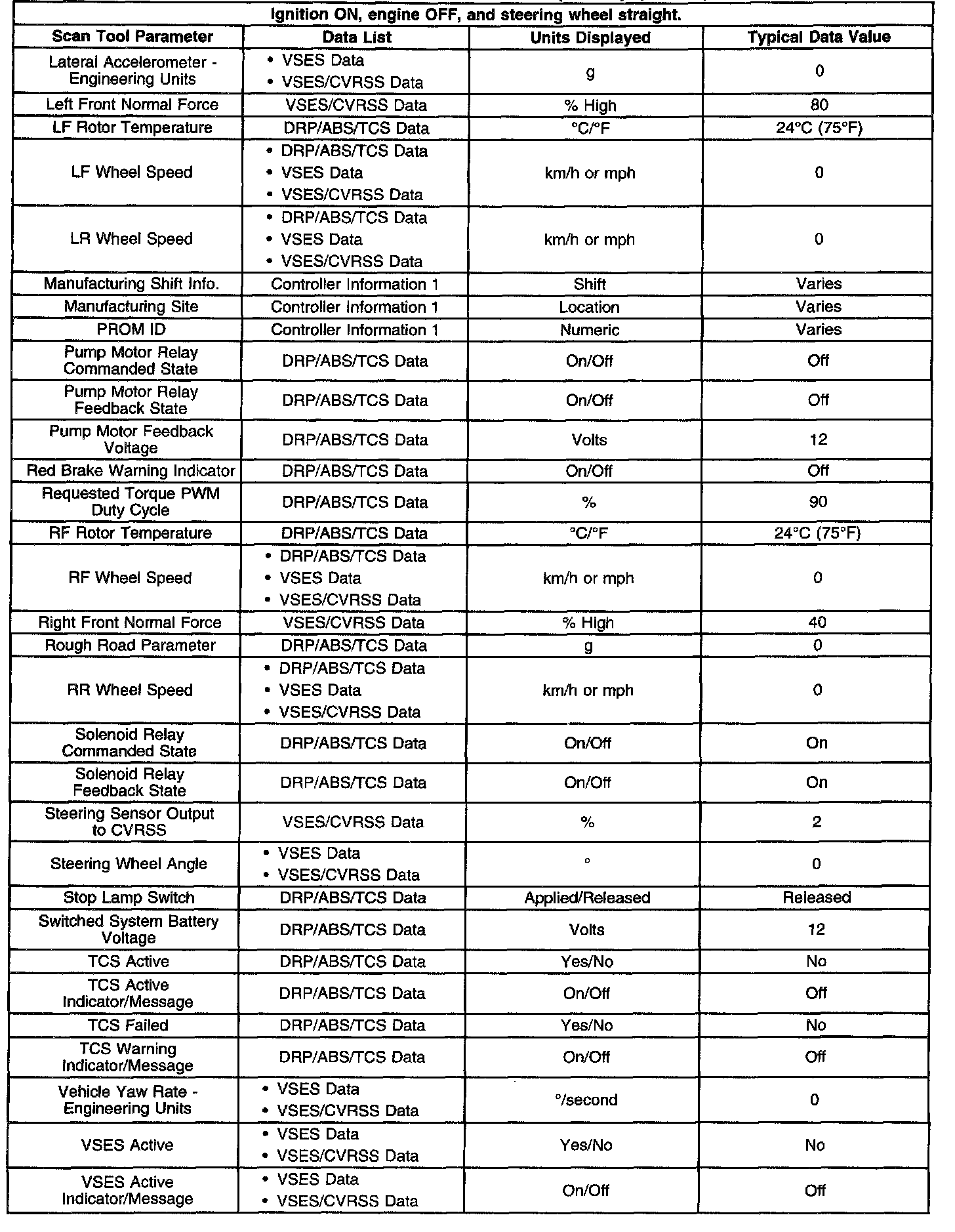

Scan Tool Data List





Dash Integration Module (DIM)











Electronic Brake Control Module (EBCM)





Instrument Panel Integration Module (IPM)
