Backup Lamp: Service and Repair
Backup Lamp ReplacementREMOVAL PROCEDURE
1. Pull down the rear compartment lid trim.

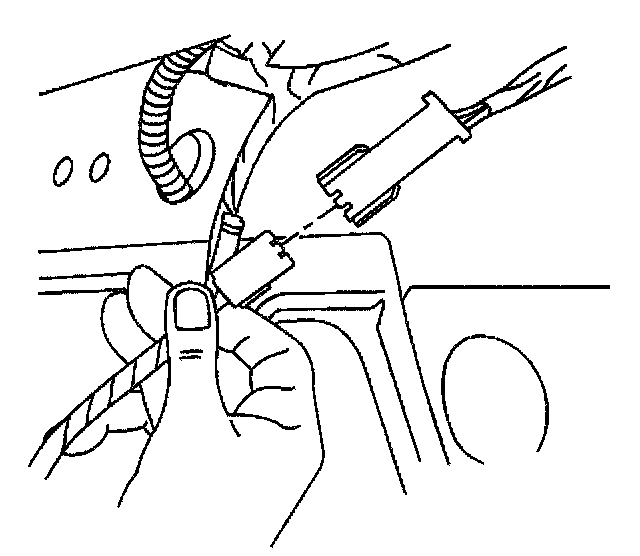

2. Disconnect the electrical connector.

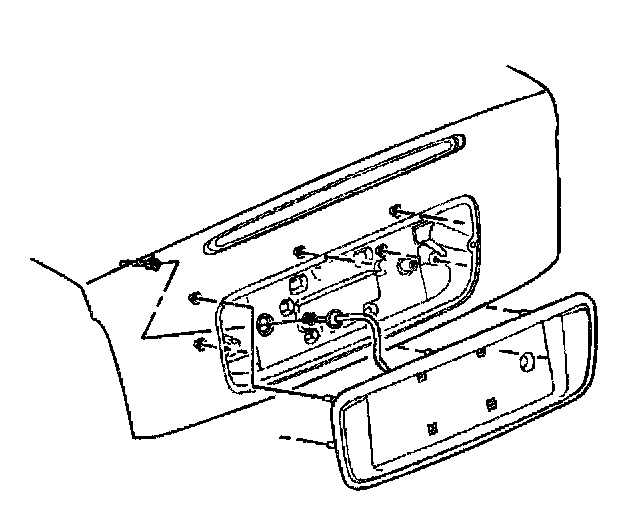

3. Remove the nuts that retain the backup lamp assembly.
4. Remove the backup lamp assembly.

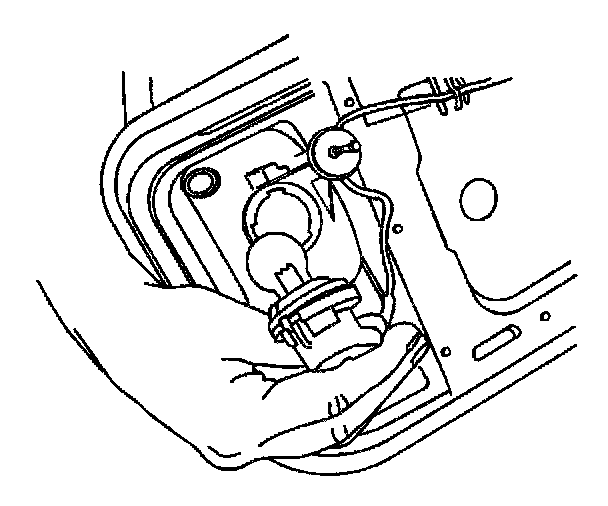

5. Remove the bulb assembly.
6. Remove the bulb.
INSTALLATION PROCEDURE
1. Install the bulb into the bulb socket.
2. Install the bulb assembly into the backup lamp assembly.
3. Pull the wire harness through the body and seat the grommet.
4. Install the backup lamp assembly to the rear compartment lid.
NOTE: Refer to Fastener Notice in Service Precautions.
5. Install the nuts in order to retain the backup lamp assembly.
Tighten
Tighten the nuts to 4.5 N.m (40 lb in).
6. Install the electrical connector.
7. Install the rear compartment lid trim.
