Fog/Driving Lamp: Service and Repair
Fog Lamp Replacement - FrontREMOVAL PROCEDURE
1. Remove the screw retaining the fog lamp to the front fascia.

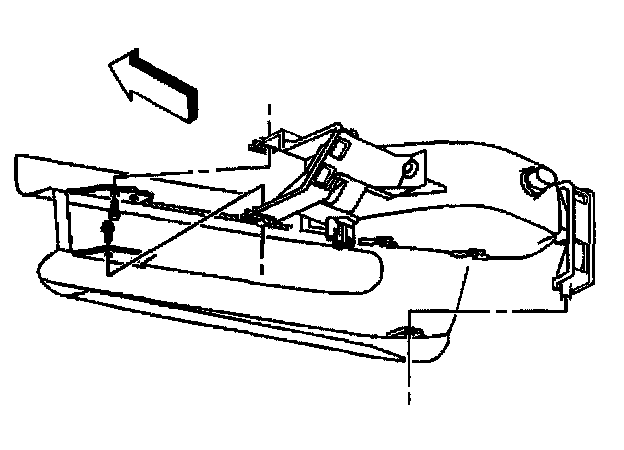

2. Remove the front air deflector.

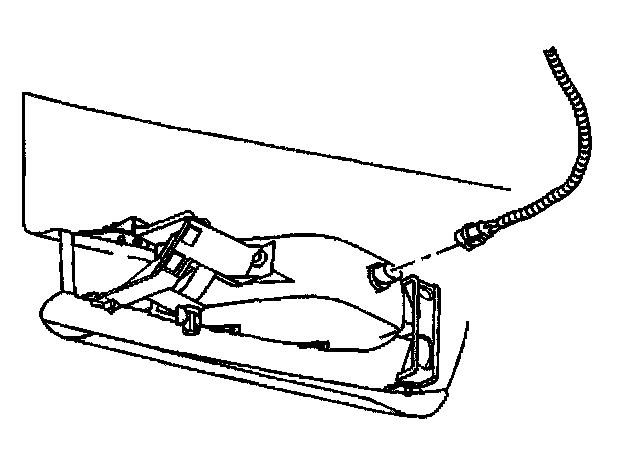

3. Disconnect the fog lamp connector from the fog lamp.
4. Remove the screws retaining the fog lamp to the front fascia.
5. Remove the fog lamp.
INSTALLATION PROCEDURE
1. Insert the outboard locating pin into the fascia.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the screws that retain the fog lamp to the front fascia.
Tighten
Tighten the fog lamp mounting screws to 2 N.m (18 lb in).
3. Connect the fog lamp connector to the fog lamp.
4. Install the screw to retain the fog lamp to the front fascia.
Tighten
Tighten the tog lamp retaining screw to 2 N.m (18 lb in).
5. Install the front air deflector.
