S216

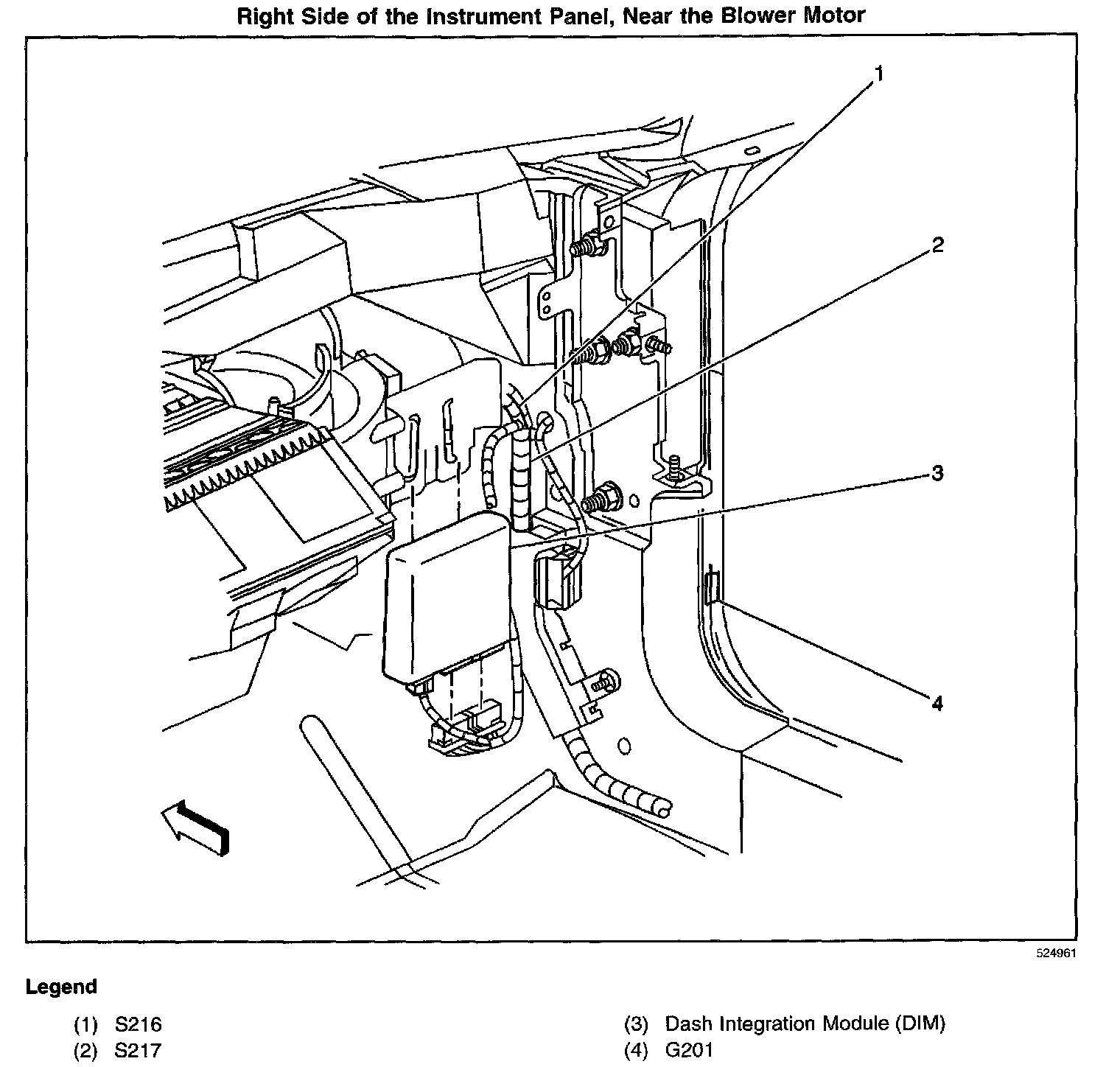

Locations View:

(W/O V4U, B9Q)
In the body harness, approximately 32 cm (12.6 in) from the dash integration module connector C1

(W/ V4U, B9Q)
In the body harness, approximately 35.5 cm (14.0 in) from the dash integration module connector C3

For a description of the RPO Code(s) shown in this image/article refer to the RPO Code List found at Vehicle/Application ID RPO Codes
