47. Upper Control Valve Assembly Installation

- Tools Required
- J 39068 Pump Assembly Guide Pins

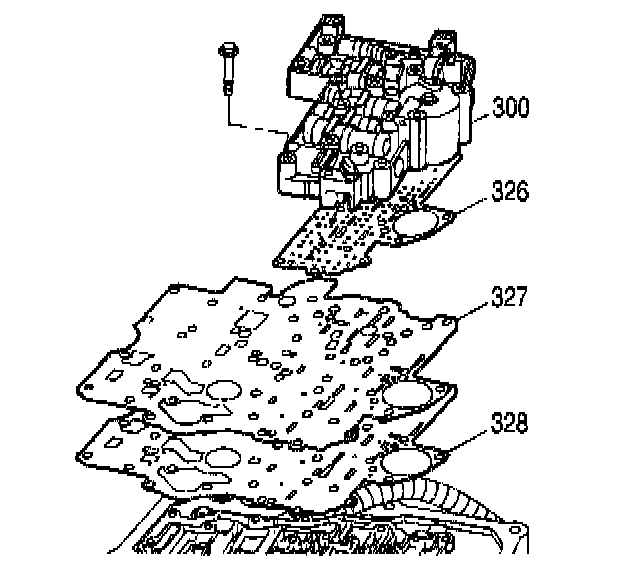

1. Install the J 39068 for the upper valve body. Install the following parts:
- The spacer plate to case cover gasket (328)
- The case cover spacer plate (327)
- The valve body to spacer plate gasket (326)
- The upper control valve body (300)

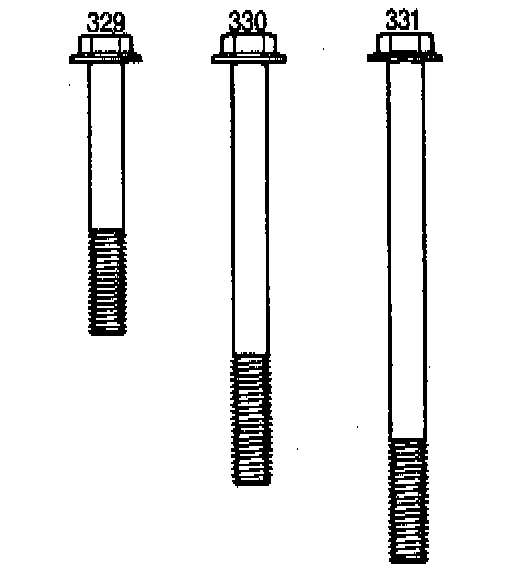

2. Install the upper control valve body bolts (229, 329, 330, 331) and hand tighten.





3. Remove the guide pins and install the remaining bolt.
- Tighten the bolts to 11-13 Nm (8.0-9.5 ft. lbs.).
