Traction Control Indicator Inoperative

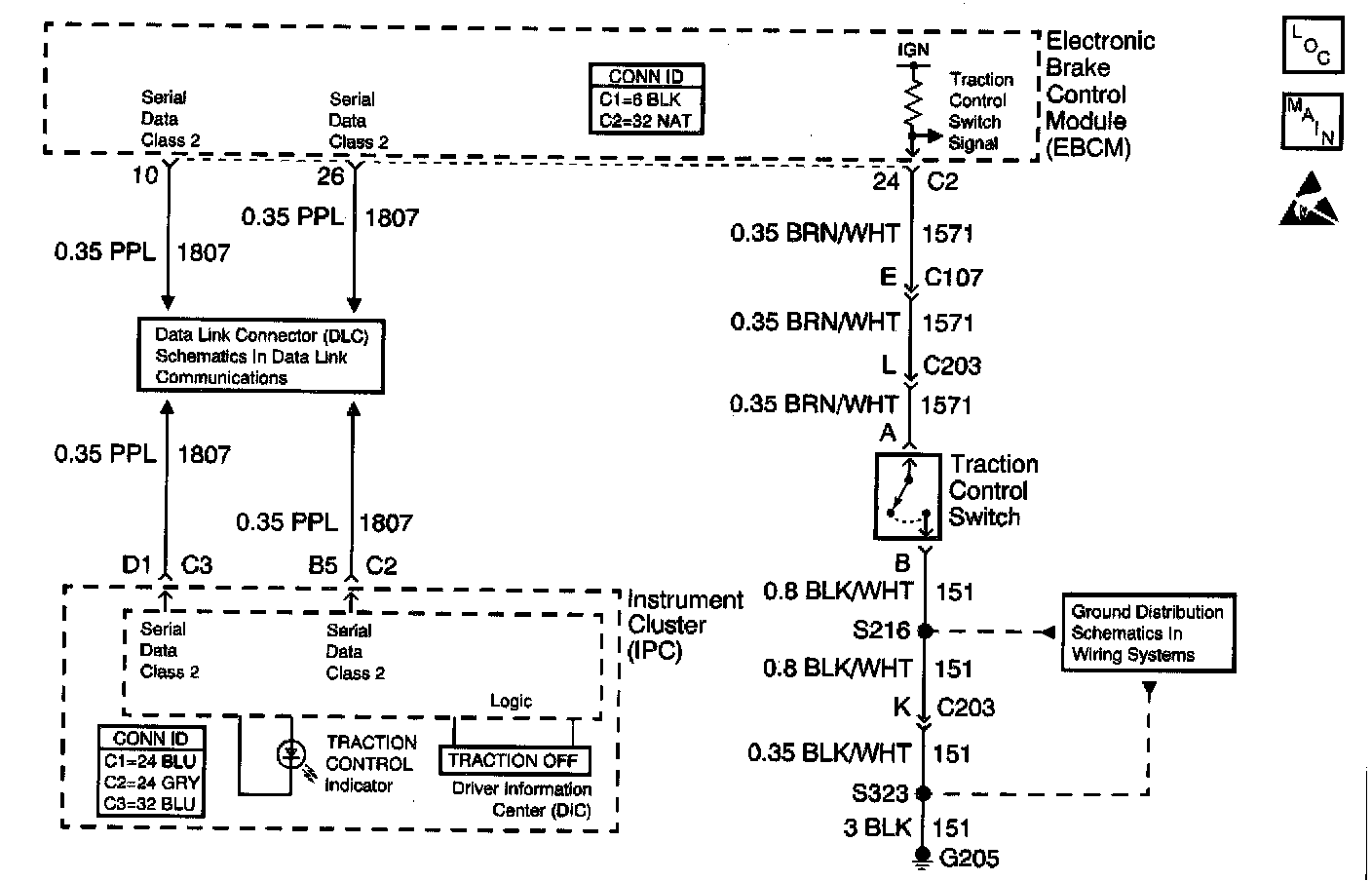

Circuit Description
The instrument cluster controls the operation of the TRACTION CONTROL indicator. The EBCM reports the desired status of the TRACTION CONTROL indicator via class 2 serial data messages.

Test Description

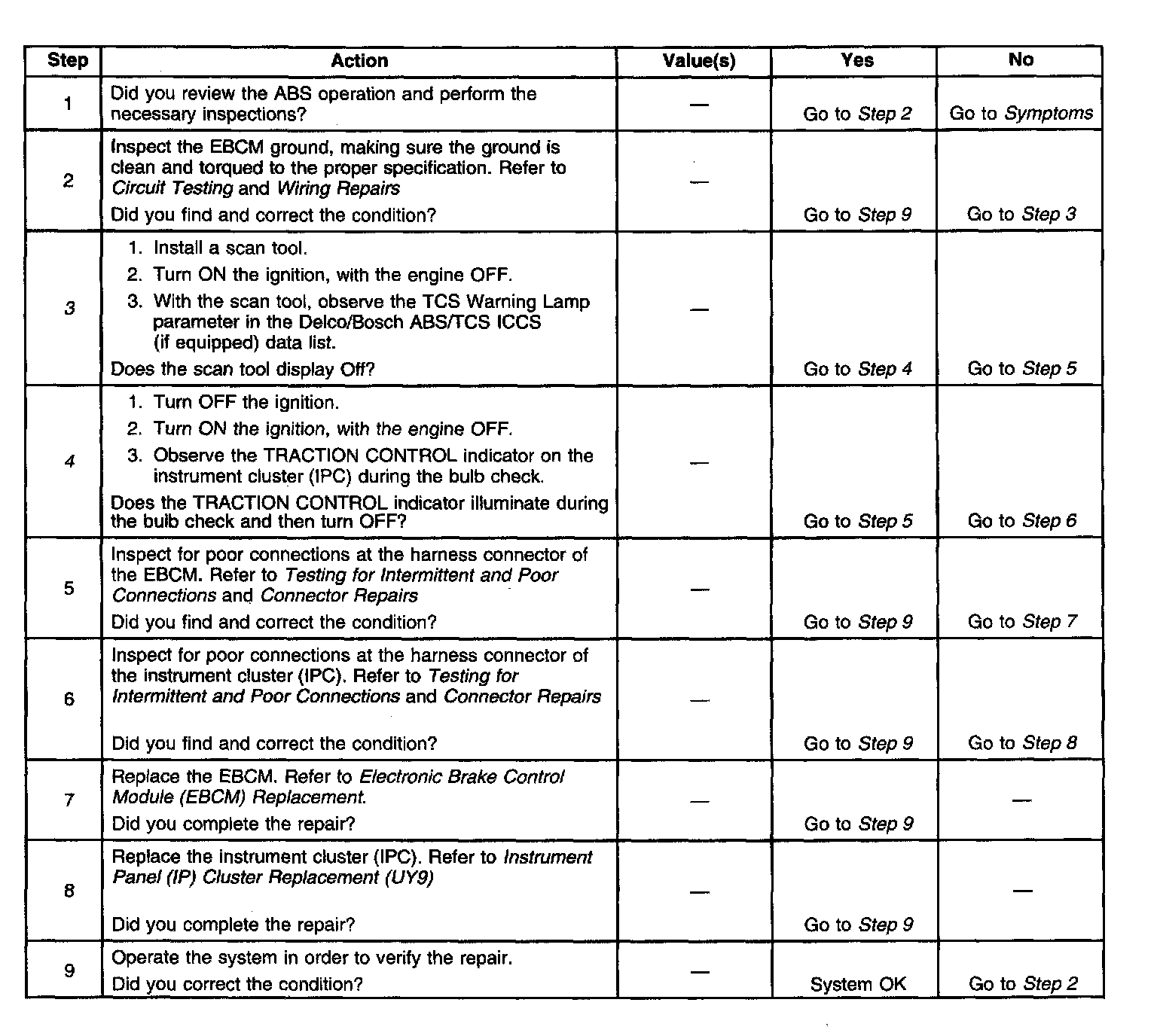

The numbers below refer to the step numbers on the diagnostic table.
3. This test uses the scan tool to check the normal state of the TRACTION CONTROL indicator control.
4. This test ensures that the instrument cluster can operate the TRACTION CONTROL indicator.
