Home >> Cadillac >> 2000 >> Eldorado V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag

Air Bag

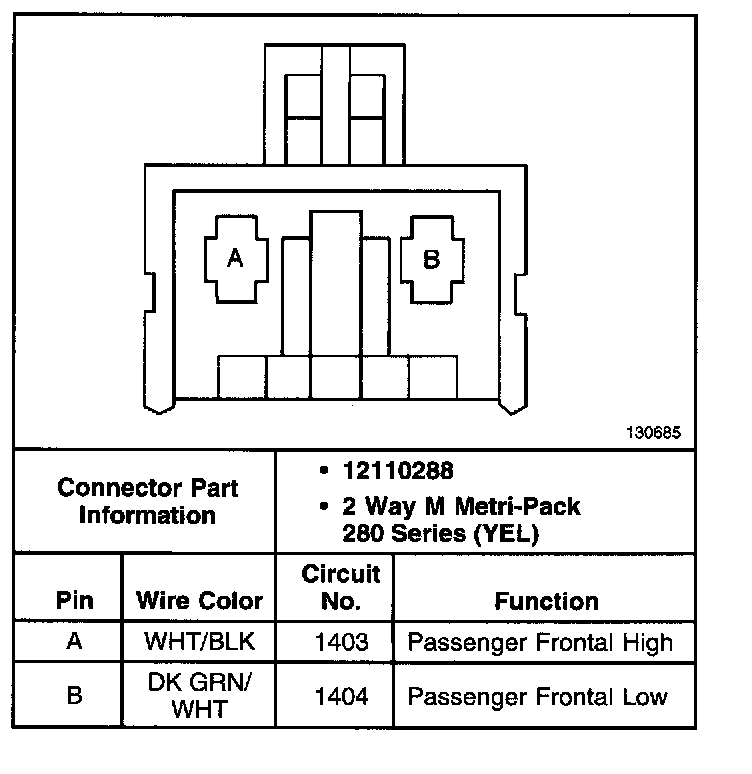

Inflatable Restraint IP Module:
