Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2000
>>
Eldorado V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C300 - C399
>>
C307
C307

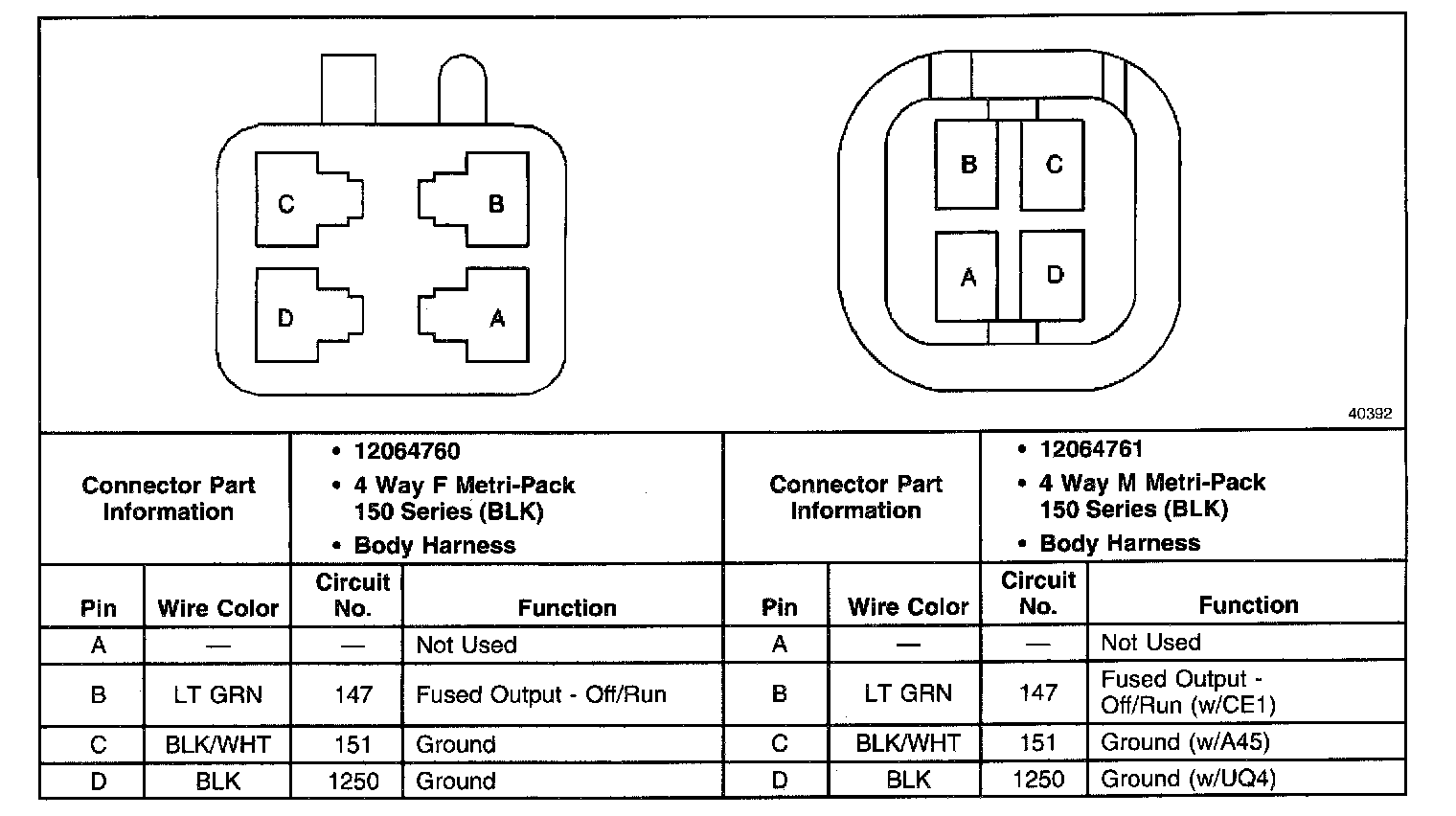

C307:
