Home >> Cadillac >> 2000 >> Eldorado V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Connector Views >> Refrigerant Temperature Sensor >> A/C Low Side Temperature Sensor

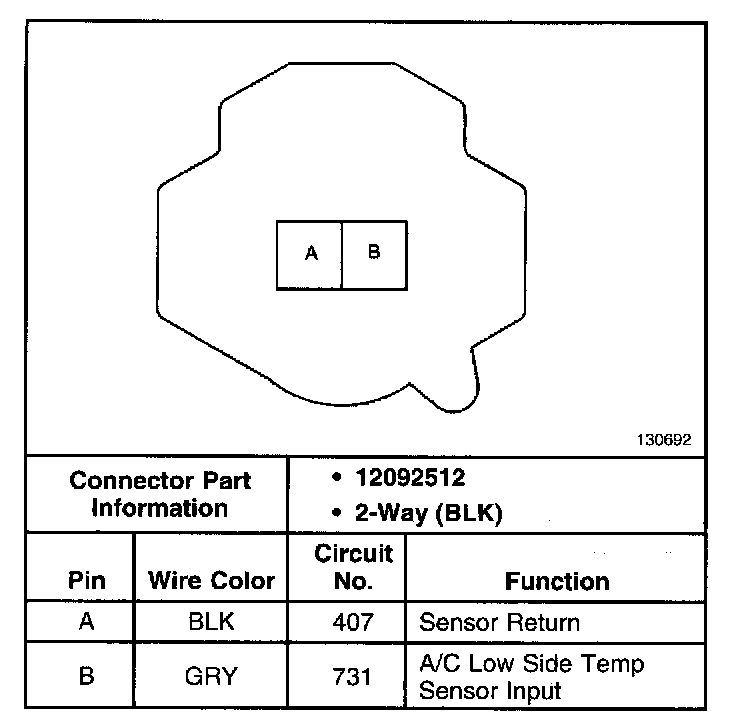

A/C Low Side Temperature Sensor

A/C Low Side Temperature Sensor:
