Home
>>
Cadillac
>>
2000
>>
Eldorado V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
Cruise Control Switch
Cruise Control Switch

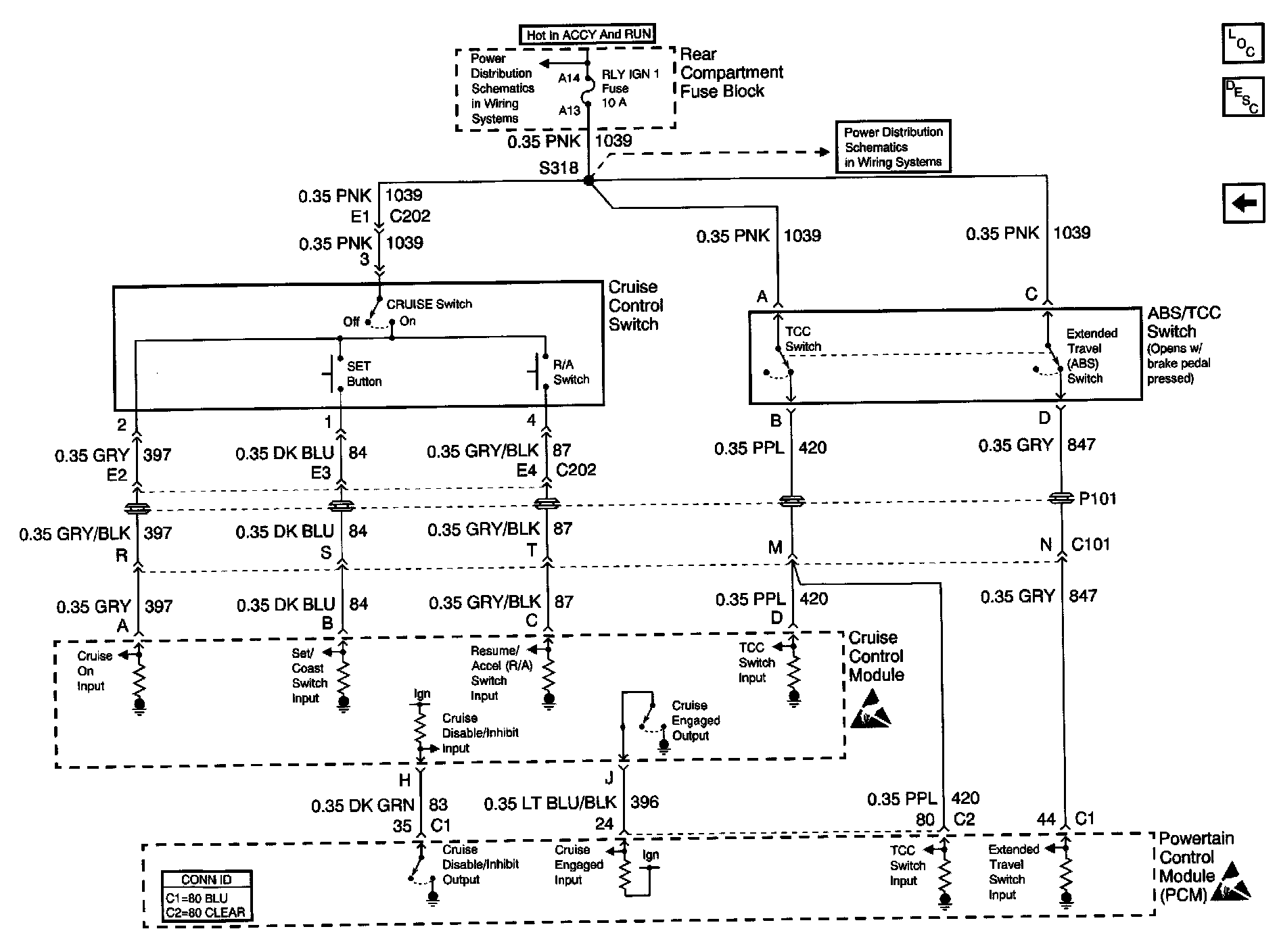

Cruise Control Schematics: Cruise Control Multifunction Lever:
