PARK RT

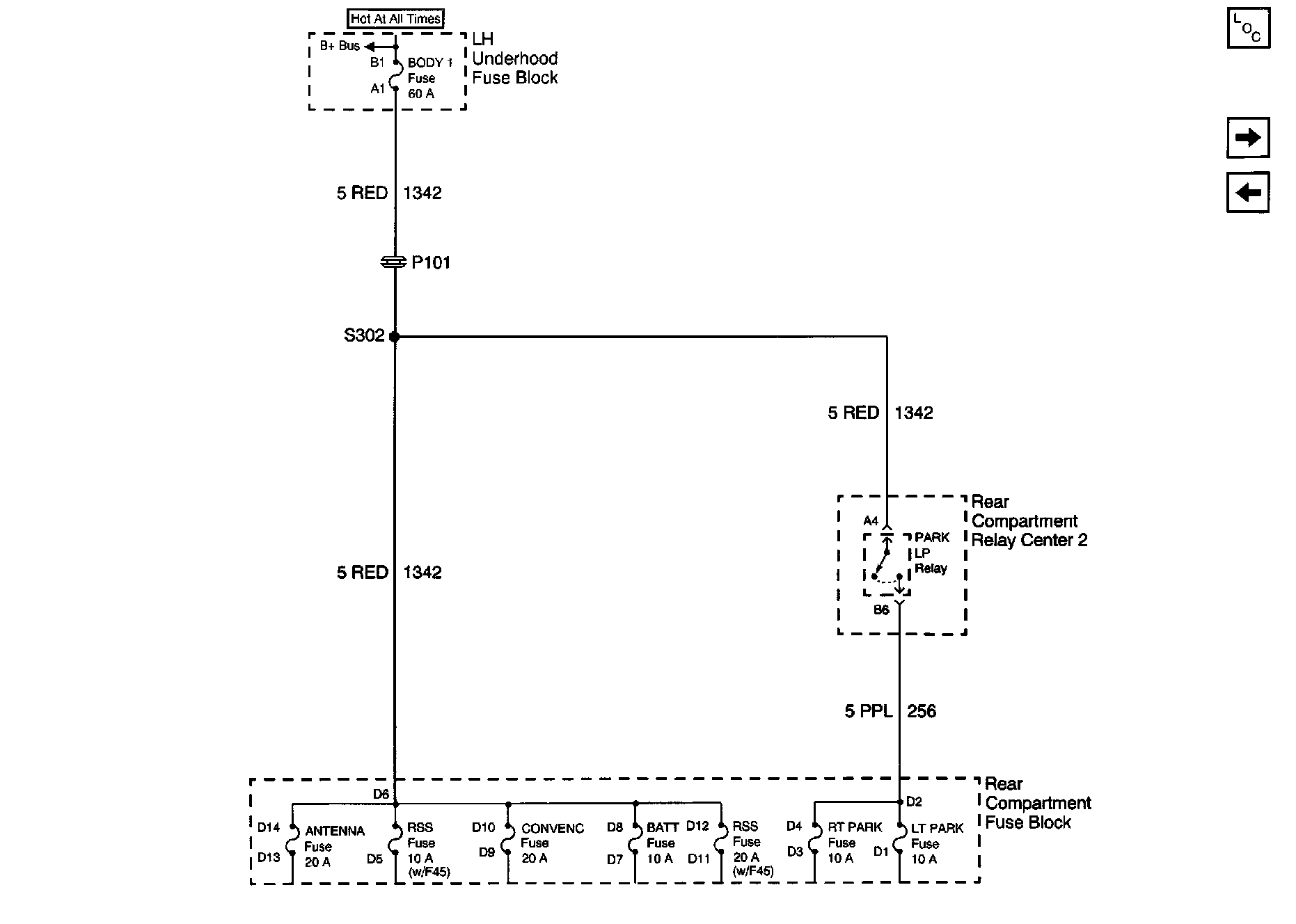

Power Distribution Schematics: BODY 1 Fuse:

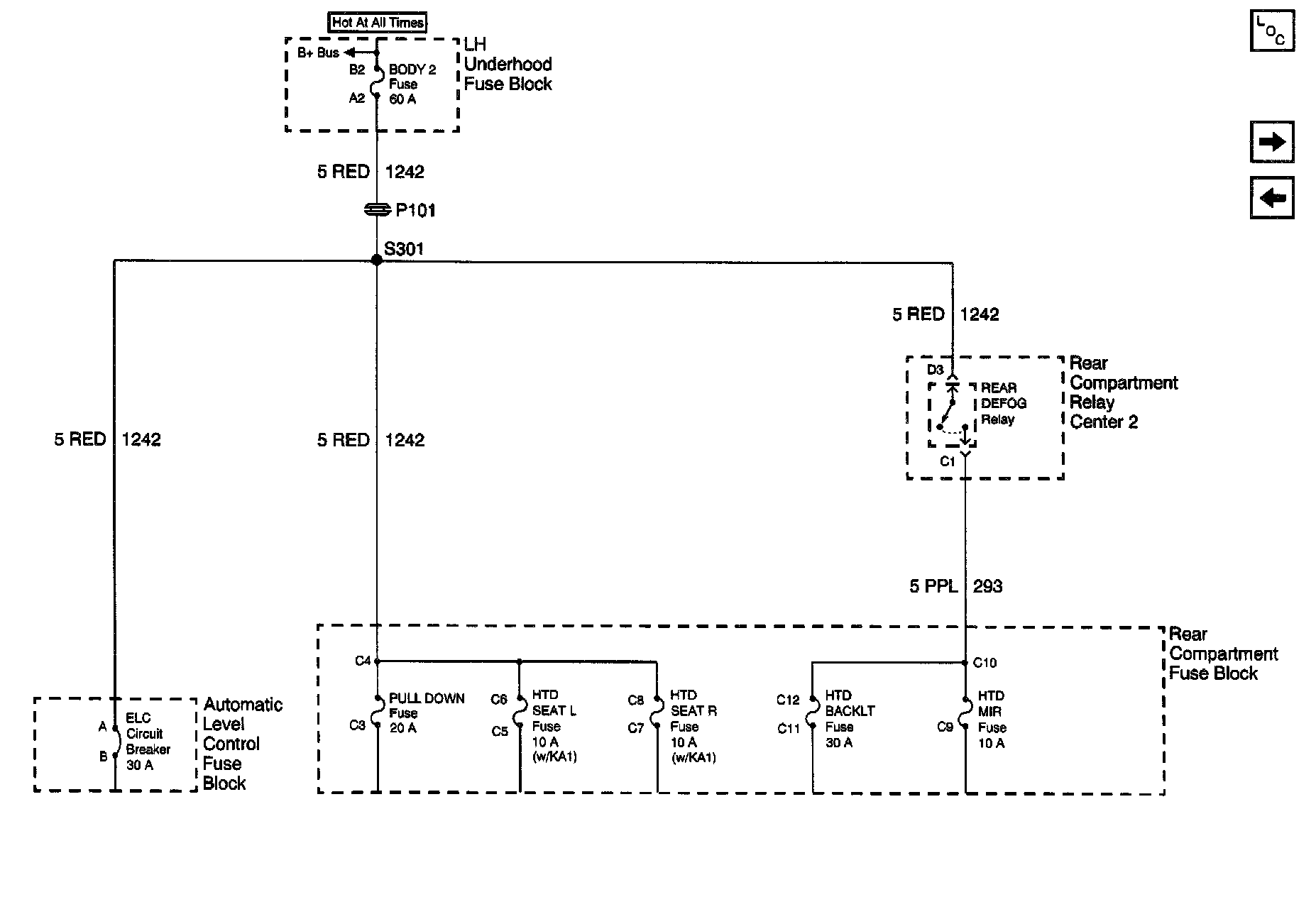

Power Distribution Schematics: BODY 2 Fuse:

Power Distribution Schematics: INT LPS Fuse:

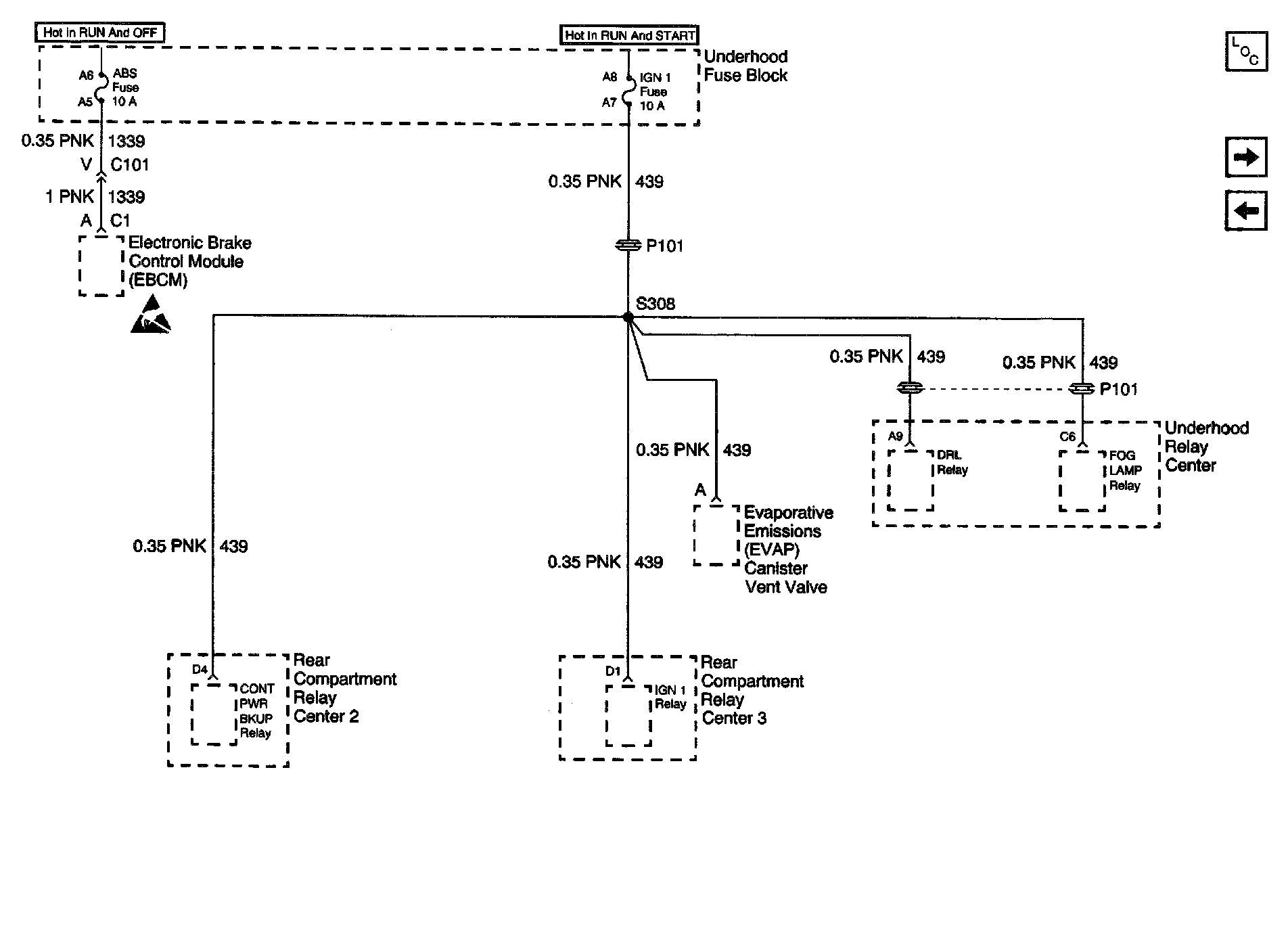

Power Distribution Schematics: ABS And IGN 1 Fuses:

Power Distribution Schematics: ELC Fuse And Circuit Breaker:

Power Distribution Schematics: IGN 0 BODY Fuse:

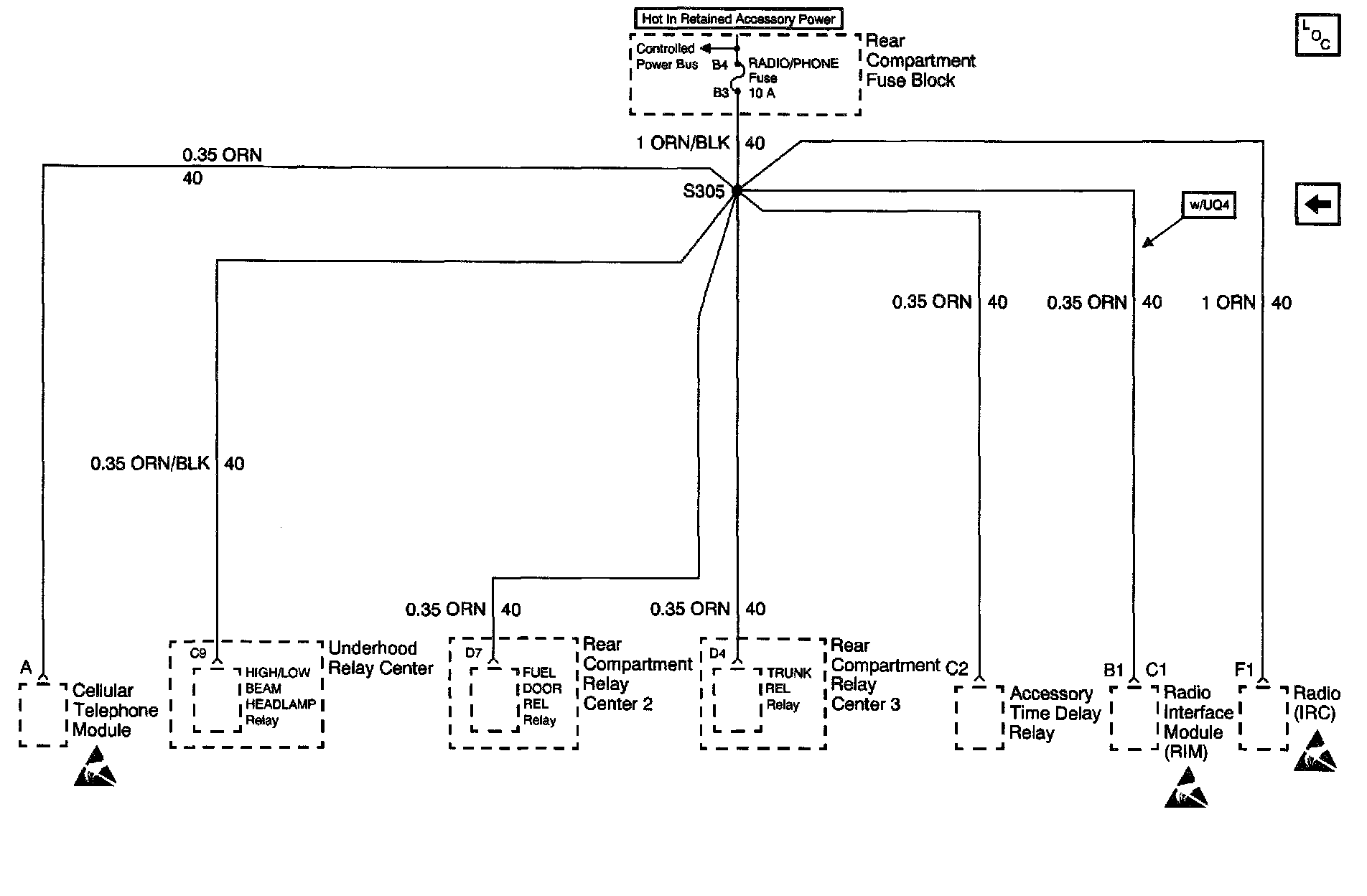

Power Distribution Schematics: RADIO/PHONE Fuse:
